Delock Network Adapter M12 8 pin A-coded male to RJ45 jack

Kods 66315

Condition: Jauns

Vairāk informācijas

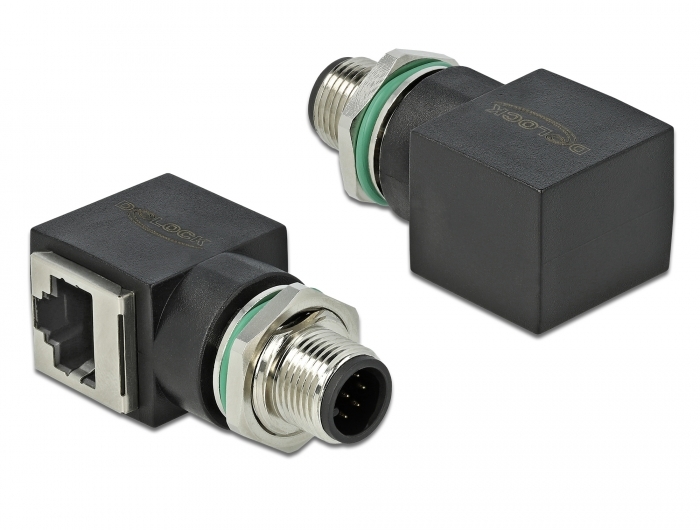

This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.

Installation in switch cabinet
Due to its compact dimensions, the adapter is very well suited for installation in a switch cabinet. Devices with M12 connectors can be integrated into an existing network structure.

System requirements:
• A free M12 female port
• A free RJ45 plug

Specification:

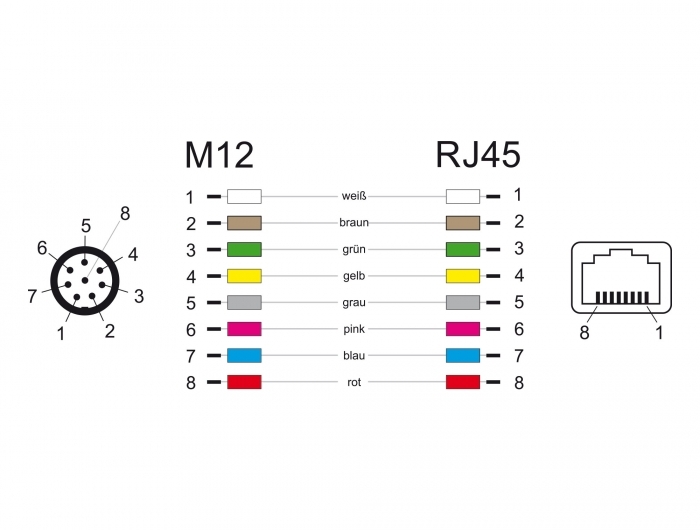

• Connectors:

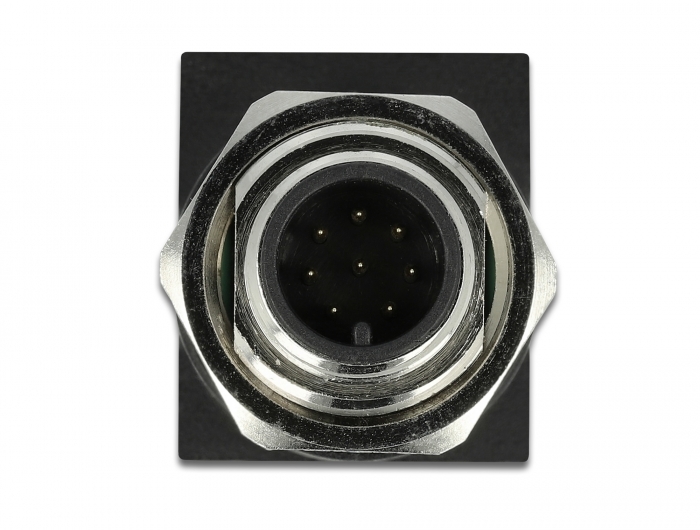

1 x M12 male 8 pin A-coded >
1 x RJ45 jack
• Housing material: TPU
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 30 V
• Current: max. 2 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Colour: black
• Dimensions (LxWxH): ca. 47.0 x 19.6 x 25.0 mm

Package content:
• Adapter

Data sheet:
http://www.delock.de/produkt/66315/pdf.html?sprache=en
