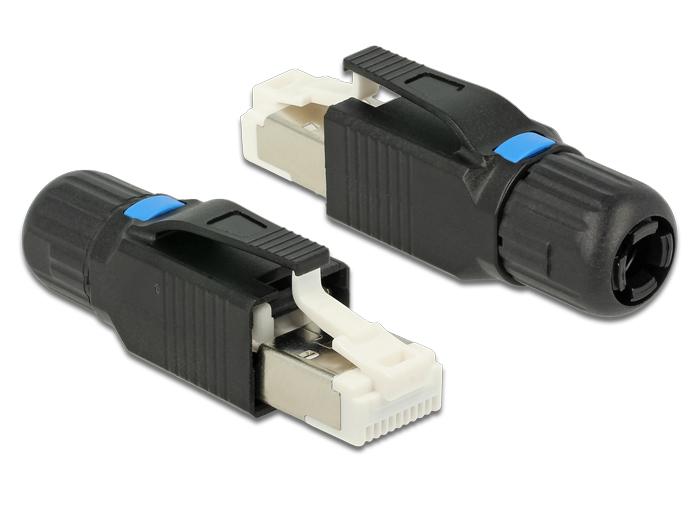

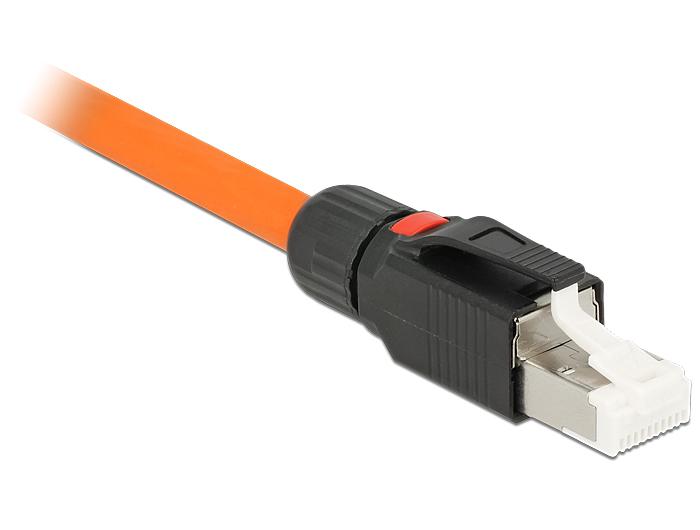

Delock RJ45 Plug field assembly Cat.6A

Description:
This RJ45 plug by Delock can be used to connect network cables. The tool-free plug installation of various cable types is time-saving.

Specification:
• Connectors: RJ45 Plug
• Cable routing 180°
• Shielded (Cat.6A)
• Compliant with Cat.6_A requirements of ISO/IEC 11801 Edition 2.2,
EN 50173-1:2011 and EN 60603-7-51, Cat.6A of ANSI/TIA 568-C.2
• Colour code TIA-568B
• Cable diameter up to 0.644 mm (22 ~ 26 AWG)
• For solid or stranded wire
• Integrated colour marking space
• Dimensions (LxWxH): ca. 53.7 x 16.4 x 14.0 mm

System requirements:

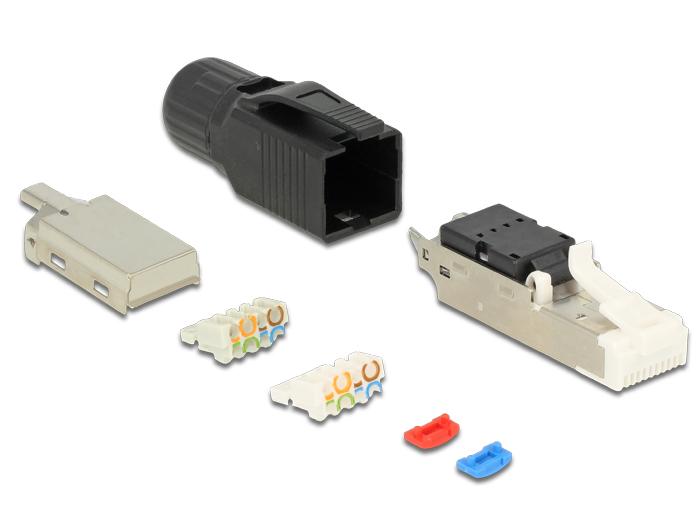

Package content:
• RJ45 plug
• Two cable managers TIA-568B (white: 24 ~ 26 AWG, grey: 22 ~ 23 AWG)
• Two color markers (red and blue)
• Installation manual
