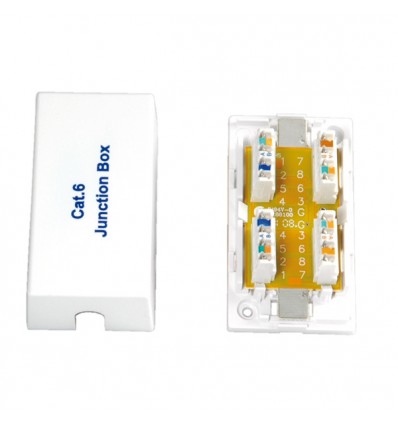

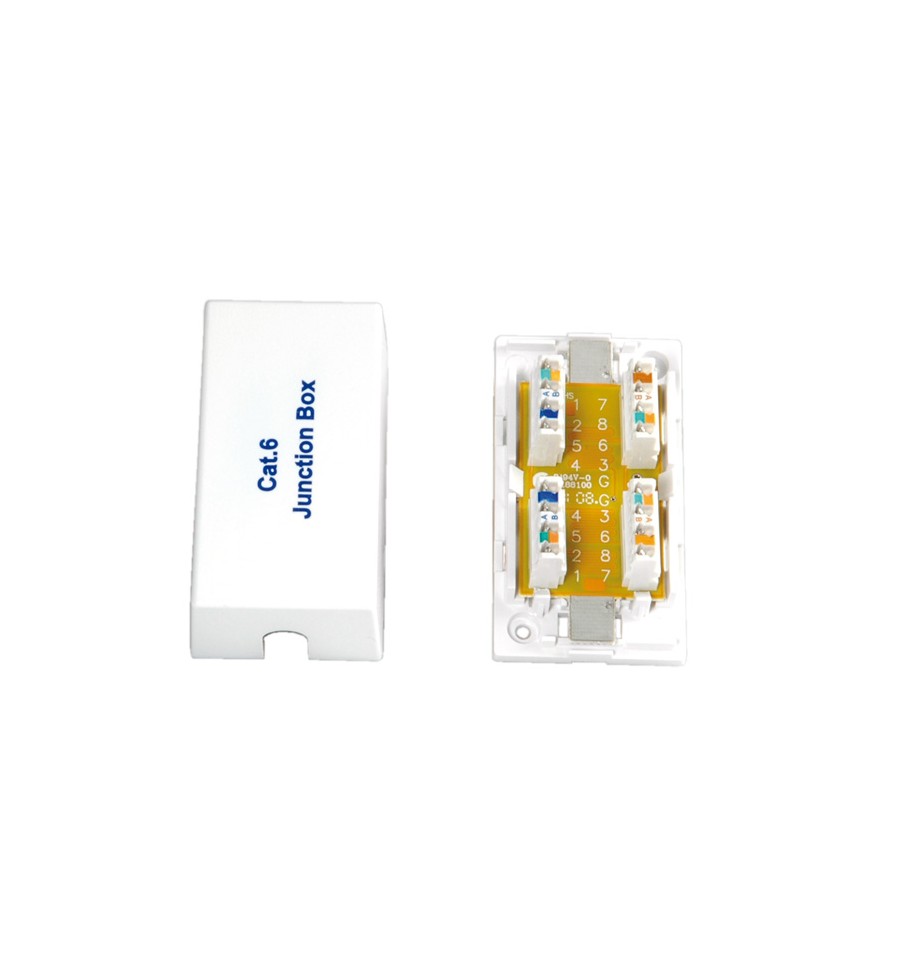

> >>ROLINE Junction Box Cat.6, UTP
ROLINE Junction Box Cat.6, UTP

ROLINE Junction Box Cat.6, UTP

ROLINE

21.17.3066

Jauns

  • The ROLINE Junction box is used to repair or extend unshielded Cat.6 cables
  • With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 4mm can be installed
  • Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed

More details

  • The ROLINE Junction box is used to repair or extend unshielded Cat.6 cables
  • With this box all 4 or 8 wired installation cables with AWG24 and with an outside diameter from 4mm can be installed
  • Equipped with the modern LSA connection technology, all cables in accordance with EIA/TIA 568A or 568B can be easily installed
Assembly cable connectionKrone LSAplus
AssignmentEIA/TIA 568B
Cabinet systemnot applicable
Colourwhite
Connection directionStraight
Conveyance goodNo
Dimensions (HxWxD)26 x 32 x 60 mm
ManufacturerROLINE
Manufacturer Item No.21.17.3066
Modular assemblynot applicable
Product groupConnection technology TP
separate strain reliefNo
Shield contactsNo
Shield typeNot screened
Transfer qualityCat6 / Class E
Wall fixeningnot applicable
