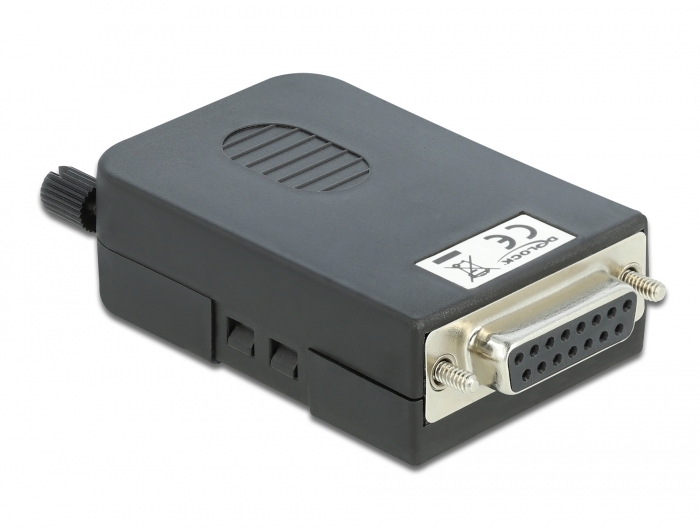

Delock Sub-D15 female to Terminal Block Adapter with Enclosure

Kods 66567

Condition: Jauns

Vairāk informācijas

This terminal block adapter by Delock can be used to connect bare wires. Thus the adapter is not only convenient for special industry applications, but also for the hobby area, e.g. railway modelling.

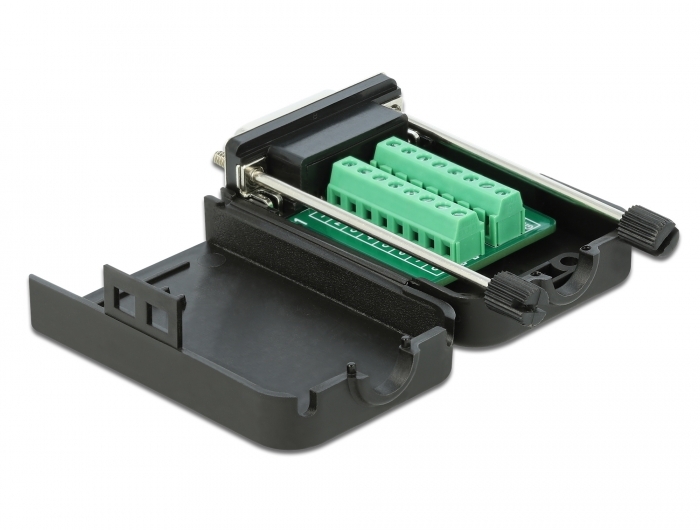

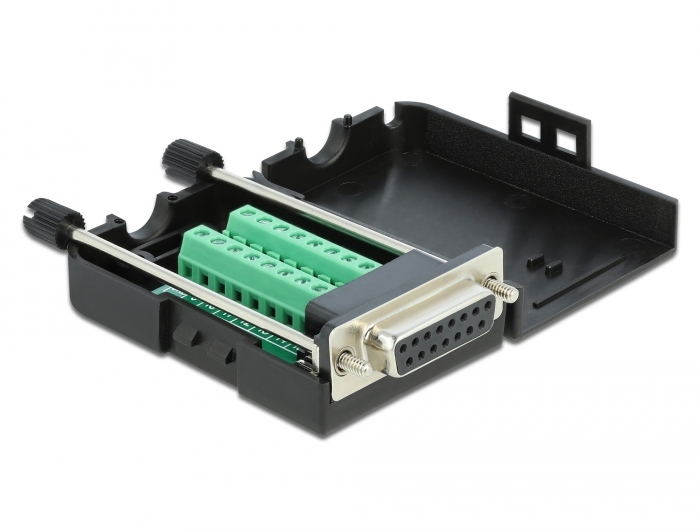

Protection by enclosure
The plastic enclosure protects the PCB from dirt and damage.

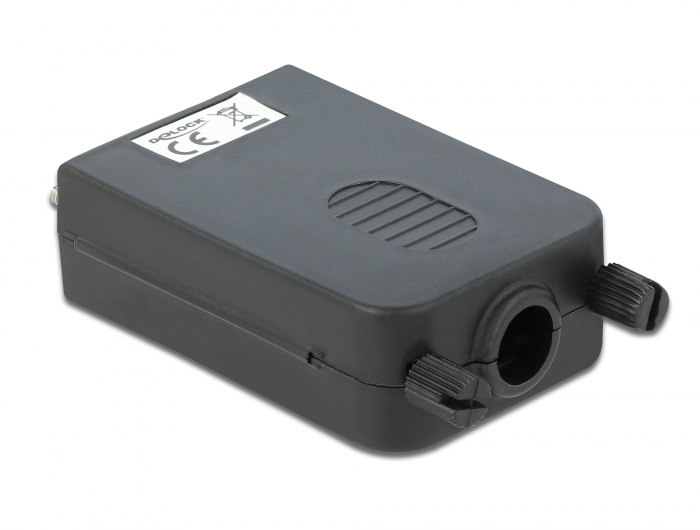

Strain relief
The screw-on strain relief fixes the cable in the enclosure.

System requirements:
• A free Sub-D15 male port

Specification:
• Connectors:
1 x serial Sub-D15 female (2 rows) with screws
1 x 16 pin terminal block
• Pin assignment: 1:1
• Pitch: 3.81 mm
• Useable for a cable gauge from 26 to 18 AWG
• Operating temperature: -20 °C ~ 105 °C
• Dimensions (LxWxH): ca. 78 x 42 x 21 mm

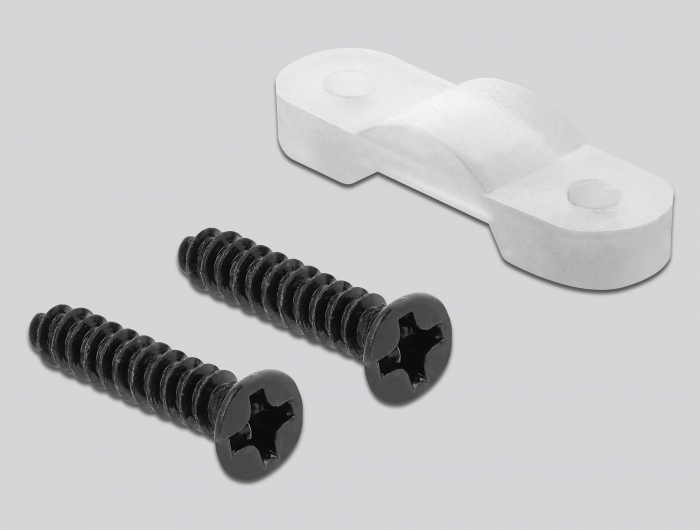

Package content:
• Adapter
• 1 x strain relief
• 2 x locking screws

Data sheet:
http://www.delock.de/produkt/66567/pdf.html?sprache=en
