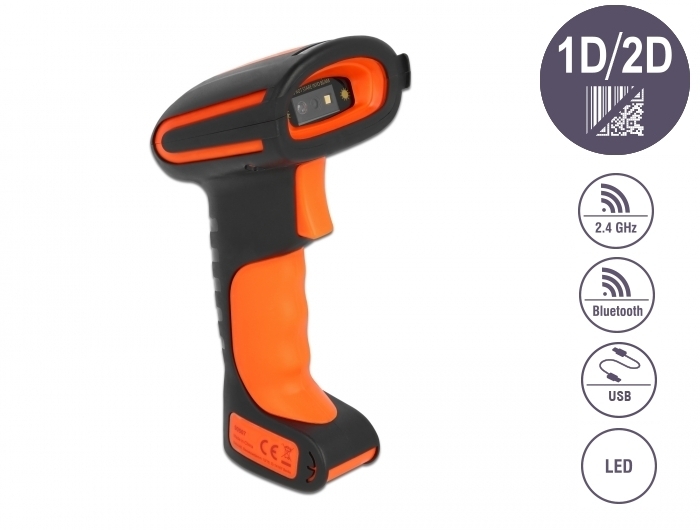

Delock Industrial Barcode Scanner 1D and 2D for 2.4 GHz, Bluetooth or USB

DELOCK

90507

Jauns

This barcode scanner by Delock can be wirelessly connected to a PC, laptop or directly to a mobile phone or tablet. All common 1D and 2D barcode types can be precisely captured even at long distances. Additionally, the scanner recognizes barcodes displayed on displays and monitors.

Automatic adaptation to ambient brightness
The scanner automatically adapts to the ambient brightness and captures up to 120 scans per second under optimal lighting conditions.

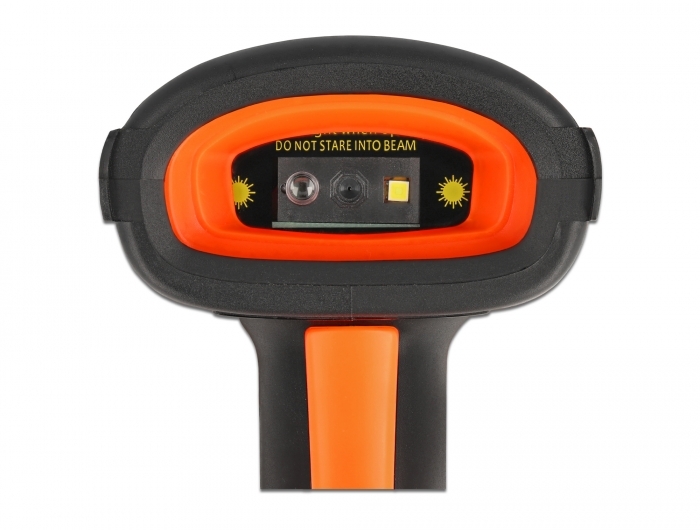

In low ambient brightness, the barcode is illuminated by an additional white LED and can therefore also be used in poor lighting conditions.

Sturdy processing
Due to its sturdy design, the scanner can easily absorb falls of up to 1.80 m and is therefore ideally suited for use in industrial environments.

Transmission via Bluetooth, USB or 2.4 GHz
The data transfer of the scanned barcodes is done either via Bluetooth directly with the Bluetooth capable output device or via the 2.4 GHz frequency band using the included USB dongle. Alternatively, the scanner can be connected to the computer with the included USB cable.
System requirements:
• Android 9.0 or above
• Bluetooth standard 4.1 or above
• iPad Pro (2018)
• Mac OS 10.15.5 or above
• PC or laptop with a free USB Type-A port for dongle
• Windows 8.1/8.1-64/10/10-64
Specification:

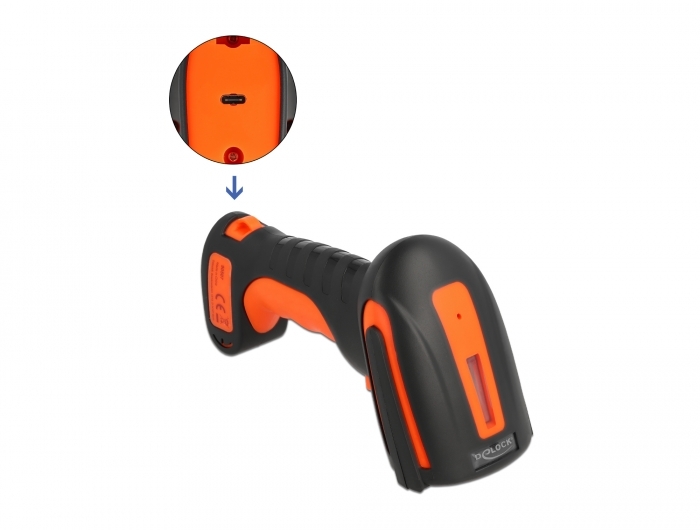

• Connector: 1 x USB Type-C™ female
• Decoding chip: ARM Cortex 32 Bit
• Rechargeable battery: Li-Polymer battery 1800 mAh
• Resolution: max. 1280 x 800
• Trigger: scan button
• Reading distance: ca. 30 mm to 500 mm
• Reading accuracy: 3 - 4 mil
• Range:
  indoor area: up to 80 m
  outdoor area: up to 150 m
• Internal memory: 16 MB
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 120 scans per second
• Scan angle: 55°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
  operation: max. 220 mA
  standby: max. 20 mA
• Operating temperature: -20 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black / orange
• Weight: ca. 321 g
• Dimensions (LxWxH): ca. 185 x 80 x 100 mm
• Cable length without connectors: ca. 0.5 m
• Bluetooth standard V 4.1
• 2.4 GHz
• Scancodes:
  Codabar
  Code 128
  Code 39
  Interleaved 2 of 5
  EAN-8 / EAN-13
  ISBN - 13
  Data Matrix
  Micro PDF417
  Micro QR
  PDF417
  QR Code

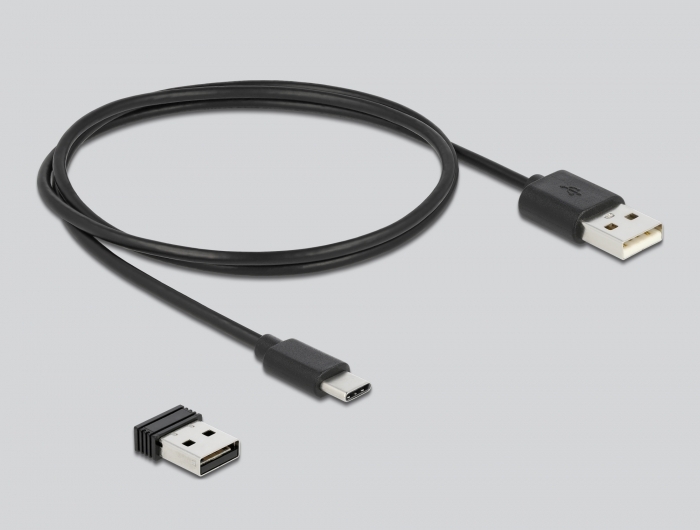

Package content:
• Barcode scanner
• USB 2.4 GHz dongle
• USB charging cable
• User manual
Data sheet:
http://www.delock.de/produkt/90507/pdf.html?sprache=en
