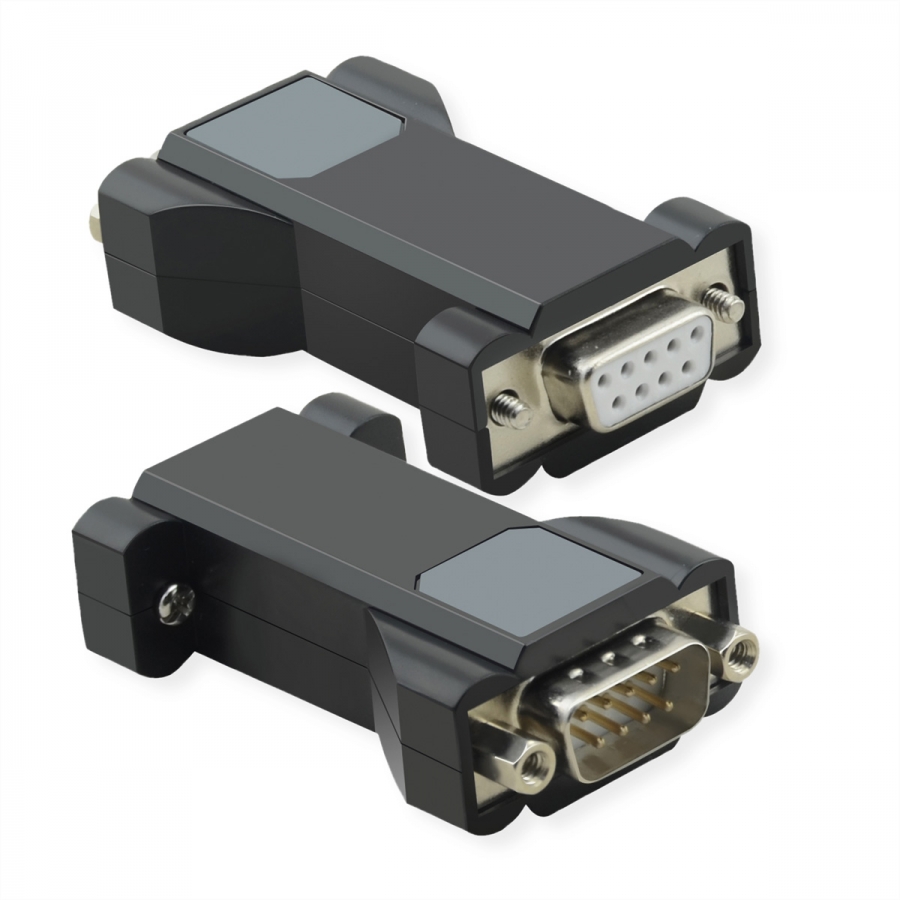

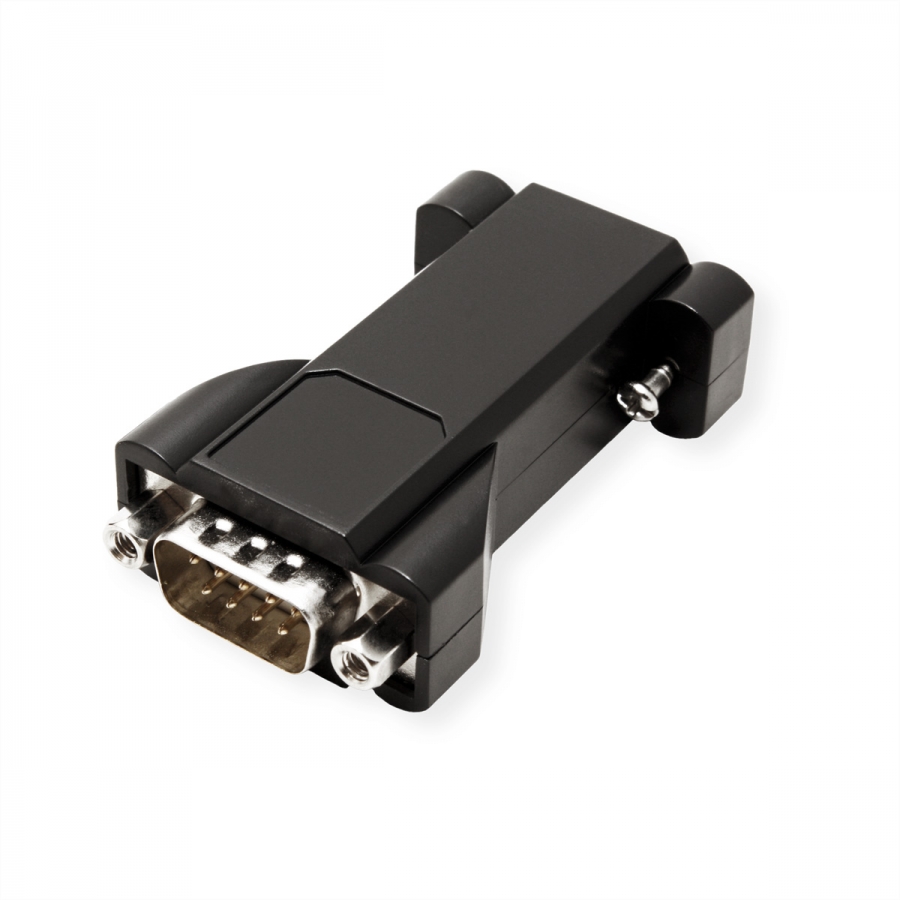

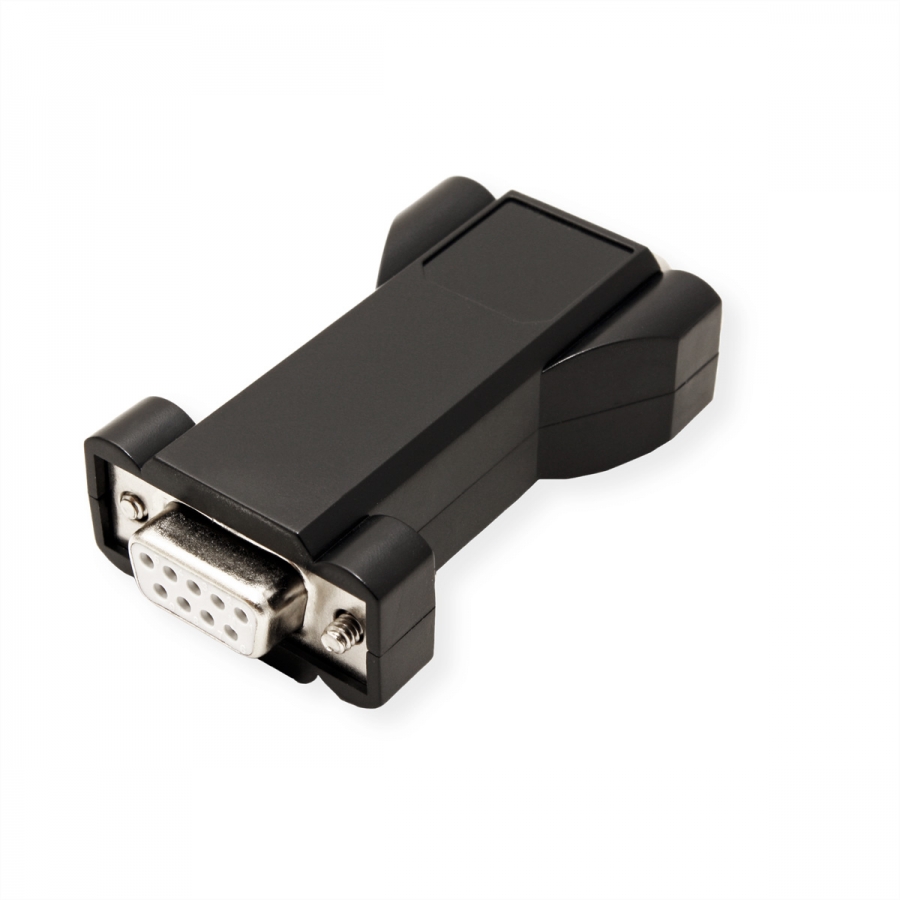

VALUE RS232 Optical Coupler

VALUE RS232 Optical Coupler

VALUE

12.99.1016

Jauns

Salīdzināt

To connect serial devices to a RS232 port on your PC with electrical isolation

  • Data transfer rate of up to 56.25 kbit/s
  • 2.5 kV ESD protection for RS232 ports
  • With galvanic isolation
  • Easy to connect, no configuration, no power supply
  • Connectors: 1x DB9 Male, 1x DB9 Female


ManufacturerVALUE
Product groupAdapters, Terminators, Converters
Product typeSerial Adapter
Colourblack
Scope of delivery1x Coupler, manual
Side 1 connection (PC)1x DB9 Female
Side 2 connection (Peripherals)1 x DB9 Male
Side 1 Connector TypeD-Sub 9-pin (DE-9)
Side 1 Connector GenderFemale
Side 2 Connector TypeD-Sub 9-pin (DE-9)
Side 2 Connector GenderMale
Conversion directionserial - serial
Area of applicationExternal
Dimensions (HxWxD)18 x 34 x 53 mm
Technical particularitywith galvanic isolation
Height18 mm
Width34 mm
Depth53 mm
Weight25.1 g
Current catalog editionC21-03.56
