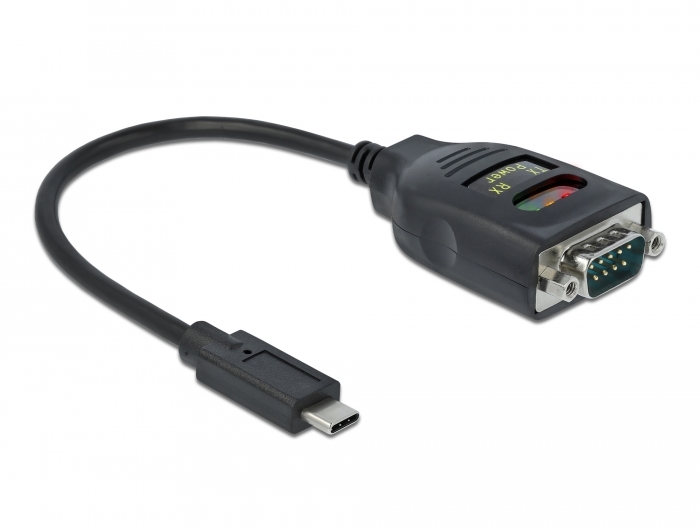

Delock Adapter USB Type-C™ to 1 x Serial RS-232 DB9 with 15 kV ESD protection

Kods 64038

Condition: Jauns

Vairāk informācijas

This USB Type-C™ to serial adapter by Delock provides an RS-232 port for meters, POS systems, printers, modems, IoT devices, etc. The three LEDs at the RS-232 port indicate the transmission and reception status as well as the USB power.

System requirements:
• Linux Kernel 4.9 or above
• Mac OS 10.15 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port

Specification:
• Connectors:
1 x USB Type-C™ male
1 x serial RS-232 DB9 male
• Serial connector with nuts
• Chipset: FTDI FT231XS
• Data transfer rate up to 460.8 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

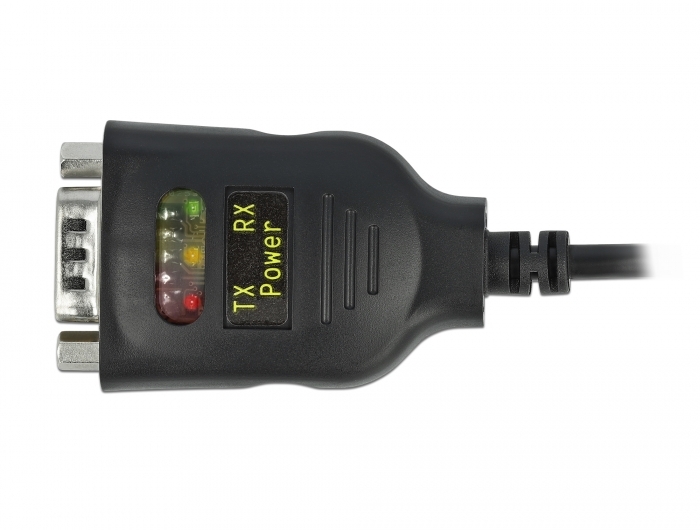

• LED colour: red, orange, green
• ±15 kV ESD protection for all serial signals
• Operating temperature: -40 °C ~ 85 °C

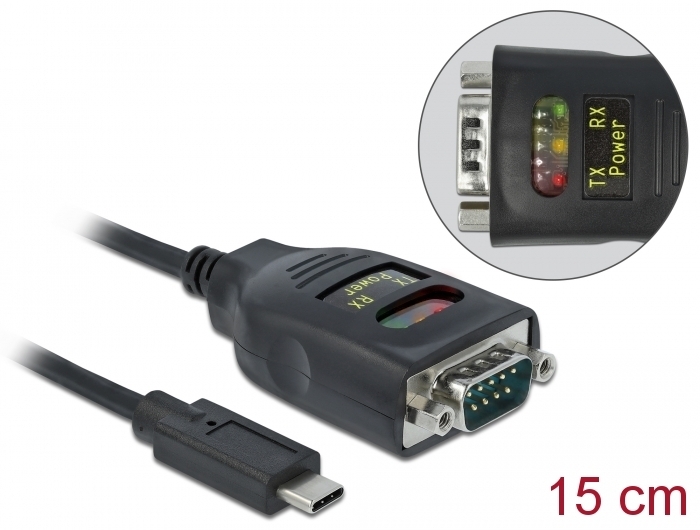

• Cable length without connectors: ca. 15 cm

Package content:
• USB Type-C™ to 1 x serial adapter
• Driver CD
• User manual
