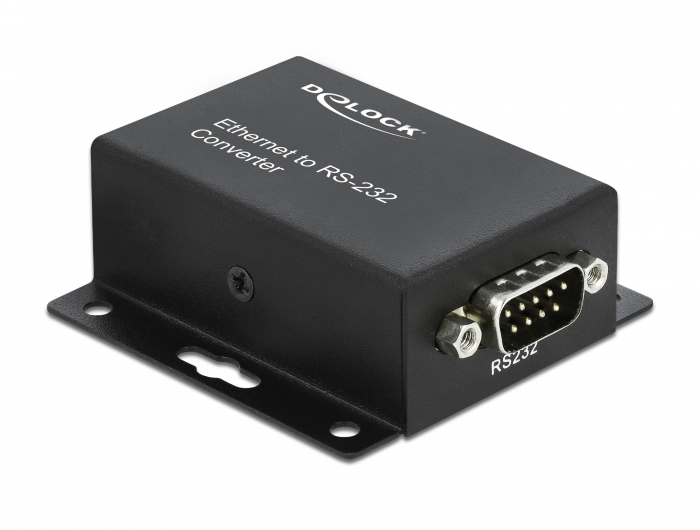

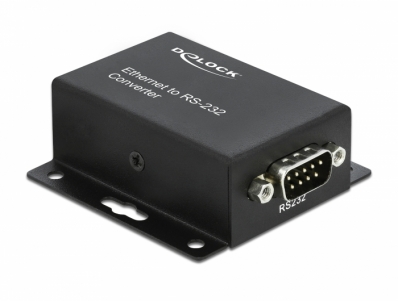

Delock Converter Ethernet TCP/IP 10/100 Mbps RJ45 to serial RS-232 DB9 with Client - Server - Mode

Kods 64081

Condition: Jauns

Vairāk informācijas

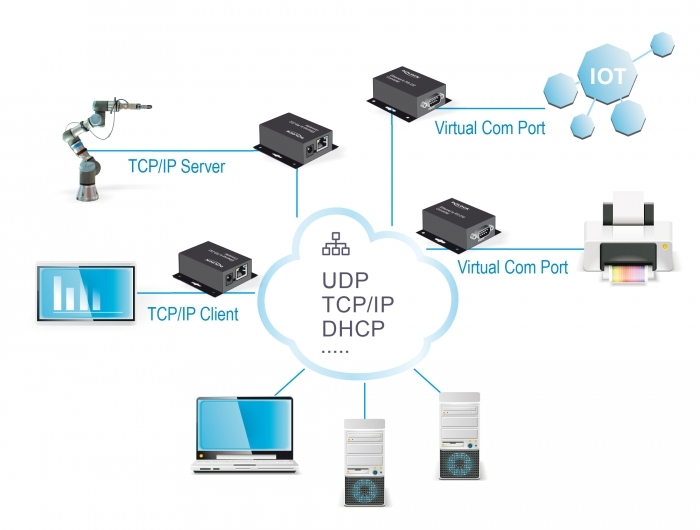

This Ethernet converter TCP/IP to RS-232 with client - server - mode by Delock connects serial RS-232 devices with each other and with a TCP/IP computer network.Devices such as printers, modems, measuring devices, POS systems, IoT devices etc. are assigned their own network address and can be controlled by a remote workstation. In client - server - mode, two Ethernet converters via TCP/IP automatically couple two RS-232 devices, for example to transfer and record measured data.

Integrated web server
An integrated web server provides decentralized control in the TCP/IP computer network.

Virtual COM Ports
The virtual COM port interfaces provide access to the RS-232 devices with the familiar applications.

Wall mounting
The Ethernet TCP/IP to RS-232 converter with client - server - mode is suitable for wall mounting.

System requirements:
• Windows 8.1/8.1-64/10/10-64
• TCP/IP Ethernet 10/100/1000 Mbps

Specification:
• Connectors:

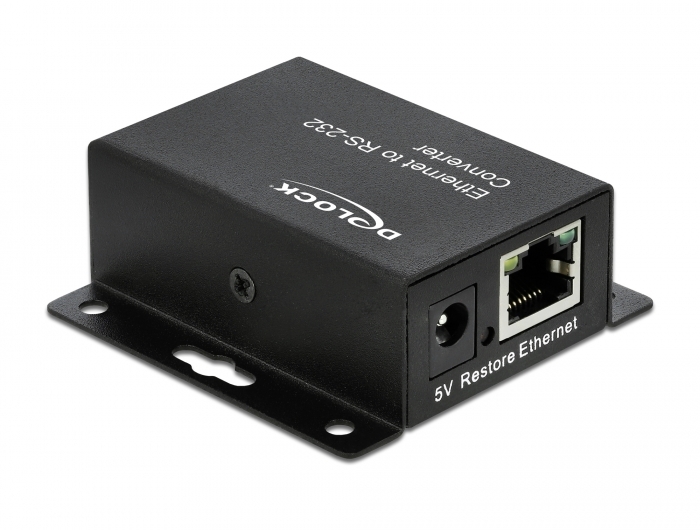

    1 x Fast Ethernet RJ45 jack
    1 x serial RS-232 DB9 plug with nuts
1 x DC power jack 5.5 x 2.1 mm
• Chipset: ASIX AX11015
• RS-232 serial:
    Data transfer rate: 921.6 Kbps
    Databits: 5, 6, 7, 8
    Stop bits: 1, 1.5, 2
    Parity: none, space, even, odd, mark

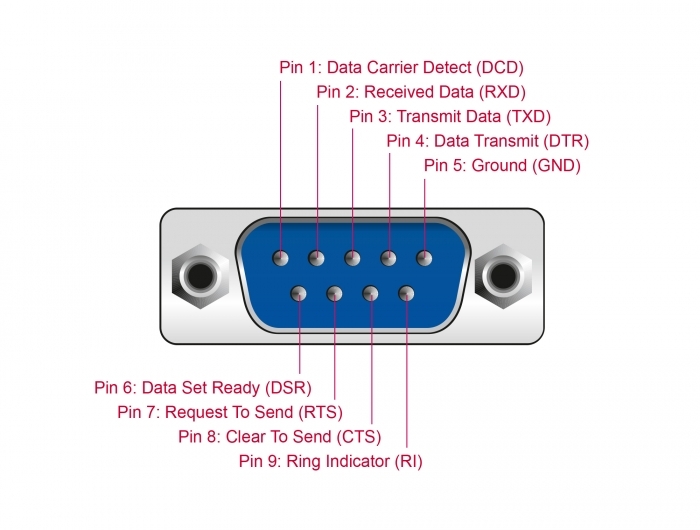

Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Supports: Flow Control On/Off
• Buffer (Ethernet): 12 KByte
• Supports: IEEE 802.3 10BASE-T / 100BASE-TX
• Supports TCP, UDP, ICMP, IPv4, DHCP, BOOTP, ARP, DNS, SMTP, SNTP, uPNP, HTTP
• Supports: Auto MDI/MDIX
• Password protection (optional)
• ESD Protection (electrostatic discharge):
    ±15 KV ESD Human Body Model (HBM)
    ±15 KV ESD IEC 61000-4-2 Air Discharge
    ±8 KV ESD IEC 61000-4-2 Contact Discharge
• Status LEDs: Ethernet connection
• Operating voltage: 5 V DC
• Dimension (LxWxH): ca. 62.2 x 61.8 x 23 mm

Package content:
• Ethernet TCP/IP converter to serial RS-232
• Software CD

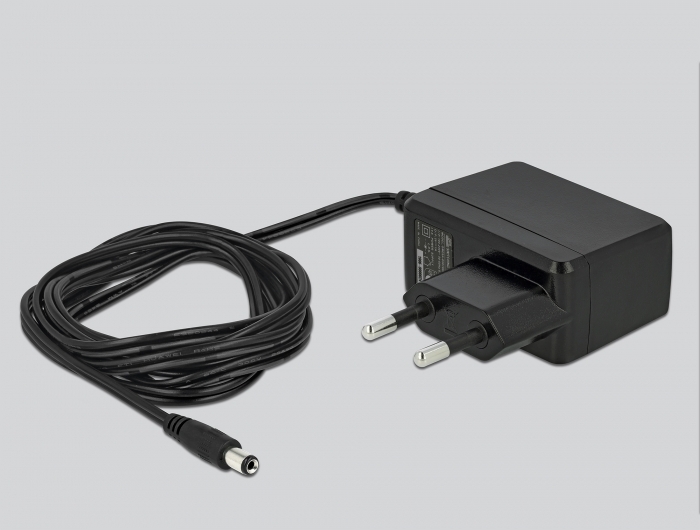

• Power supply
• User manual
