Delock RS-232 Tester DB9 female > DB9 male

Delock RS-232 Tester DB9 female > DB9 male

DELOCK

87713

Jauns

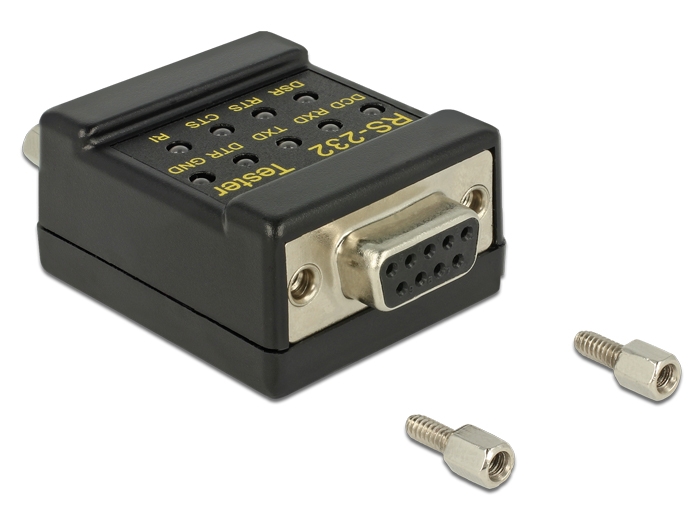

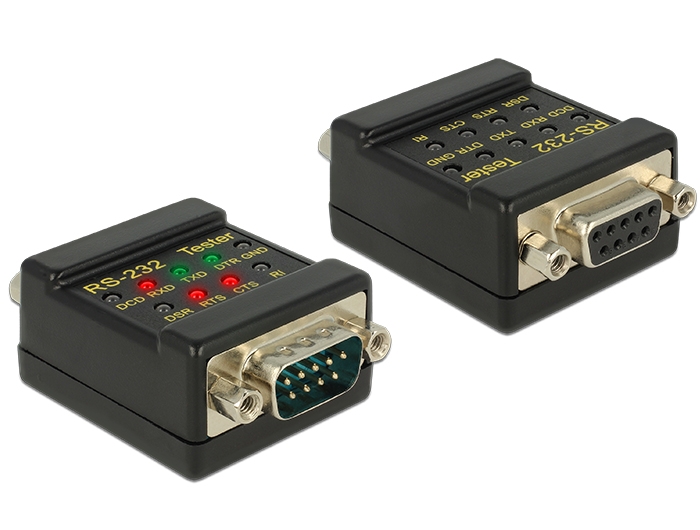

This RS-232 tester by Delock is compact and suitable as a connection and interface tester without any additional power supply. The 9 LEDs (red, green, off) have two colours and indicate the logical state of each of the data lines. It is also possible to determine e.g. interruptions, crossed wires or a short circuit.
System requirements:
• One RS-232 interface DB9
Specification:
• Connectors:
  1 x DB9 female
  1 x DB9 male
• RS-232 (TIA/EIA) specification
• Suitable for indoor use
• LED indicator: 9 x bicolour, red (V+), green (V-)
• Plug & Play
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 45 x 35 x 21 mm
• Weight: ca. 55 g
Package content:
• RS-232 tester
• User manual
Data sheet:
http://www.delock.de/produkt/87713/pdf.html?sprache=en
