> >>VALUE RS232 Optical Coupler

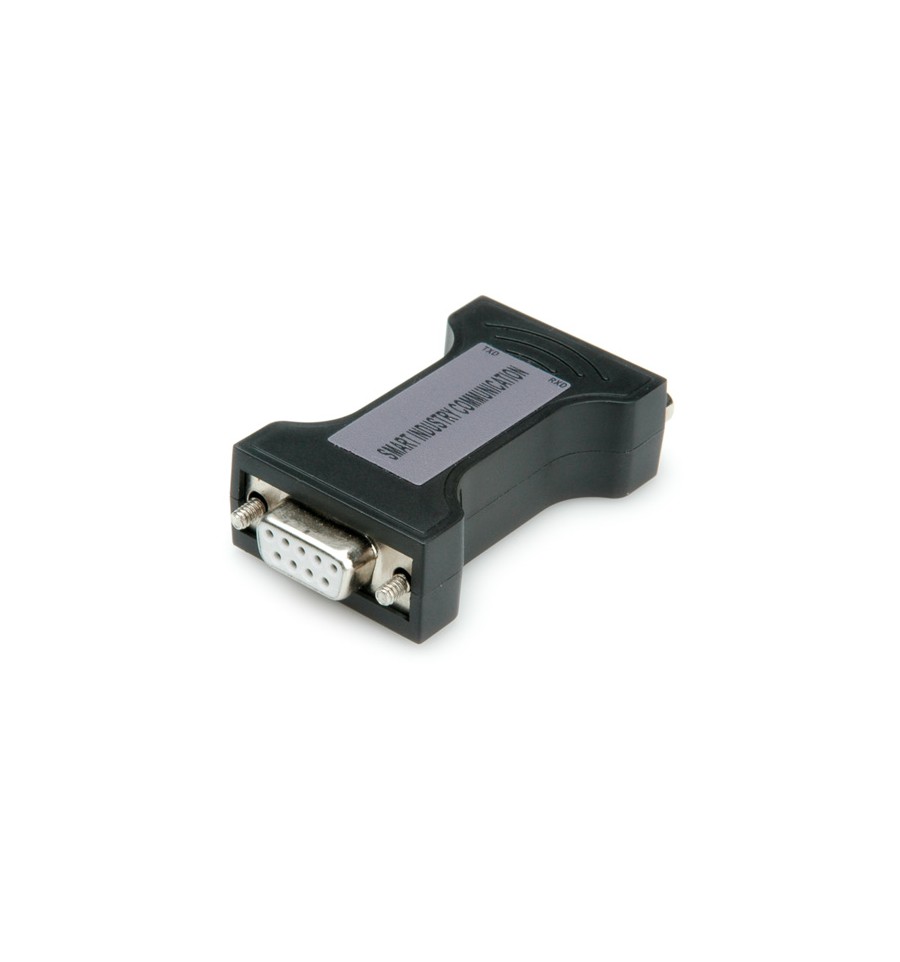

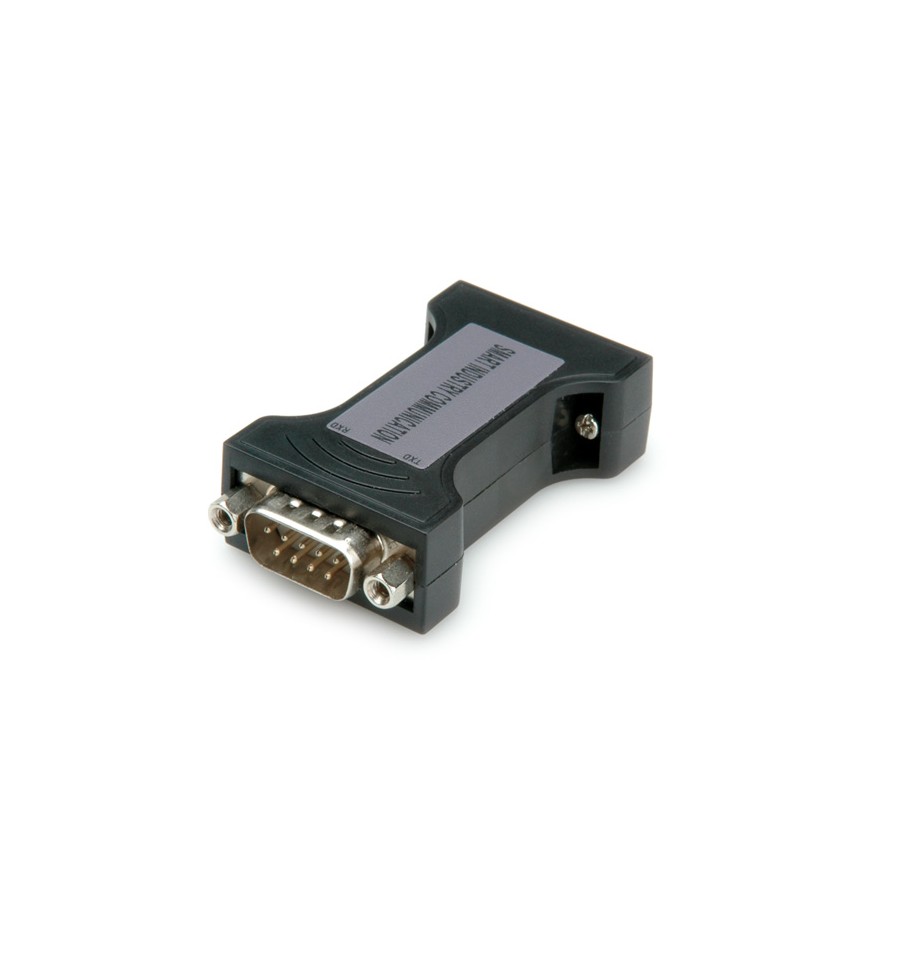

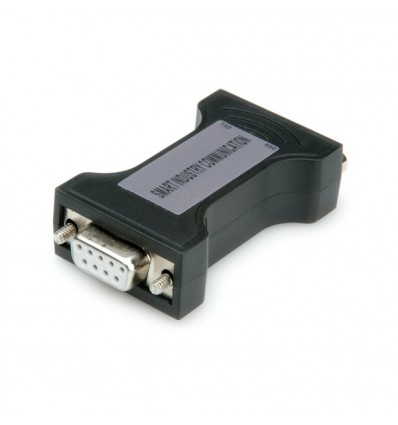

VALUE RS232 Optical Coupler

VALUE RS232 Optical Coupler

VALUE

12.99.1015

Jauns

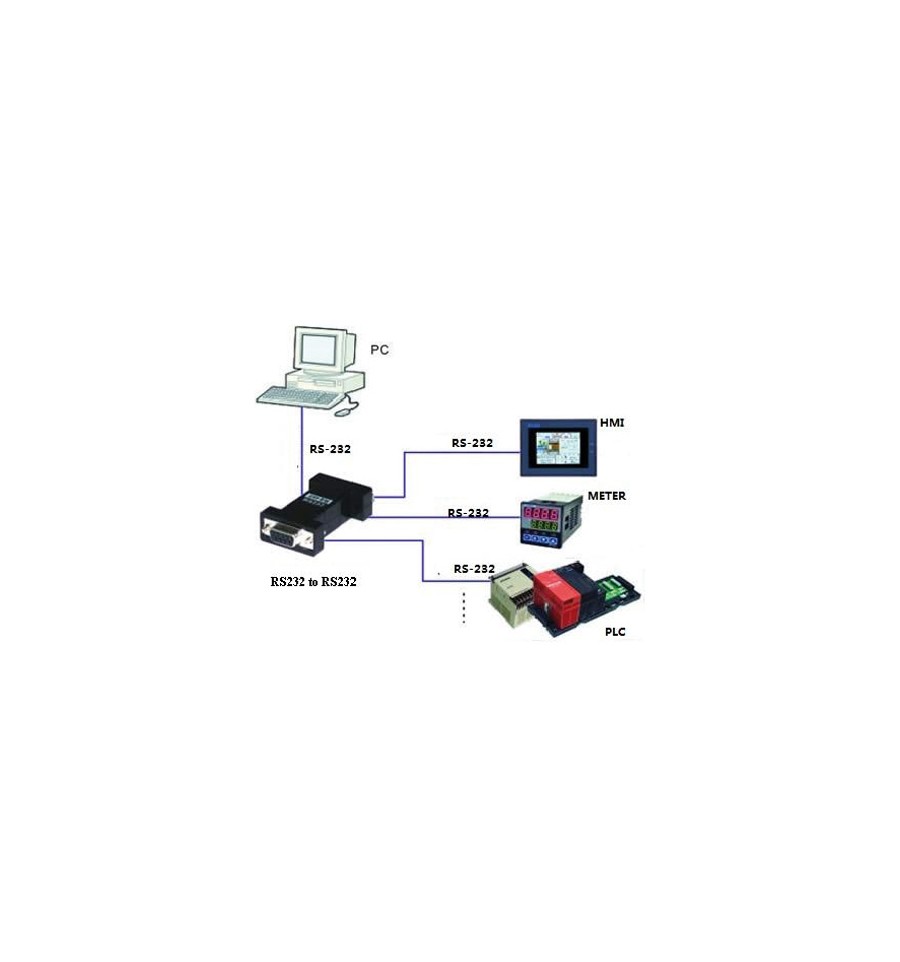

To connect serial devices to a RS232 port on your PC with a electrical isolation

  • Data transfer rate of up to 56.25 kbit/s
  • 2.5 kV ESD protection for RS232 ports
  • With galvanic isolation
  • Easy to connect, no configuration, no power supply
  • Connectors: 1x DB9 Male, 1x DB9 Female
  • Contents: Coupler, manual

More details

Salīdzināt

To connect serial devices to a RS232 port on your PC with a electrical isolation

  • Data transfer rate of up to 56.25 kbit/s
  • 2.5 kV ESD protection for RS232 ports
  • With galvanic isolation
  • Easy to connect, no configuration, no power supply
  • Connectors: 1x DB9 Male, 1x DB9 Female
  • Contents: Coupler, manual
Area of applicationExternal
ColourBlack
Content of deliveryconverter, manual
Conversion directionserial - serial
Conveyance goodNo
Dimensions (HxWxD)17 x 33 x 62 mm
Left Connector GenderFemale
Left Connector TypeD-Sub 9-pin (DB-9)
ManufacturerVALUE
Manufacturer Item No.12.99.1015
Product groupAdapters, Terminators, Converters
Product typeSerial Adapter
Right Connector GenderMale
Right Connector TypeD-Sub 9-pin (DB-9)
Side A connection (PC)1x DB9 Female
Side B connection (Peripherals)1 x DB9 Male
Technical particularitywith galvanic isolation, power supply (Pin4)
