> >>Delock Serial Cable RS-232 D-Sub 9 female to female null modem with narrow plug housing - CTS / RTS auto control - 5 m
Delock Serial Cable RS-232 D-Sub 9 female to female null modem with narrow plug housing - CTS / RTS auto control - 5 m

Delock Serial Cable RS-232 D-Sub 9 female to female null modem with narrow plug housing - CTS / RTS auto control - 5 m

DELOCK

87784

Jauns

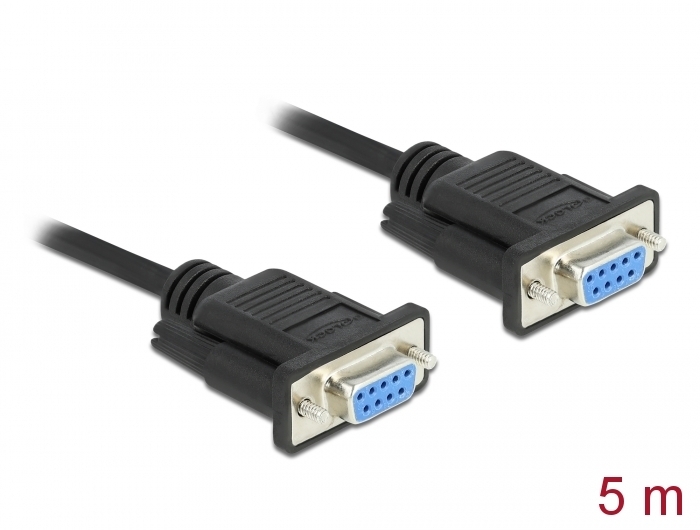

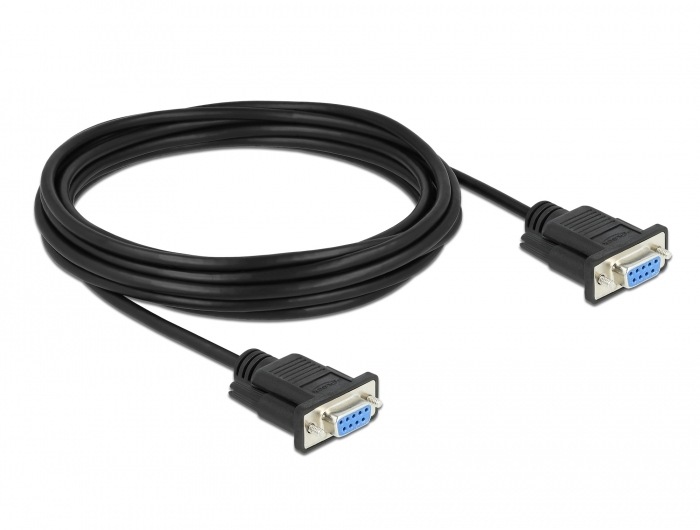

This serial cable by Delock is a fully wired null modem cable with - CTS / RTS auto control - for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable, two serial RS-232 devices can be connected to each other for data exchange.

Mini D-Sub 9 connector

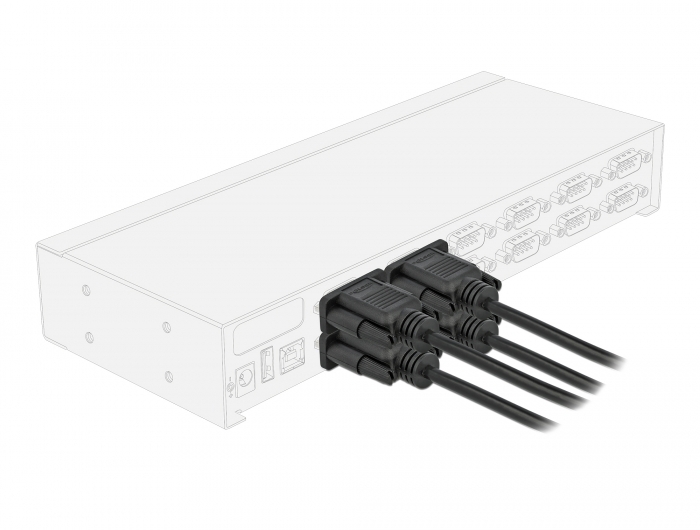

These cables fit on any RS-232 port, as the mini D-Sub 9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used directly adjacent to each other.
System requirements:
• A free D-Sub 9 male port
Specification:
• Connectors:
  1 x serial D-Sub 9 female with screws
  1 x serial D-Sub 9 female with screws
• Cable gauge: 28 AWG
• Full handshaking cable

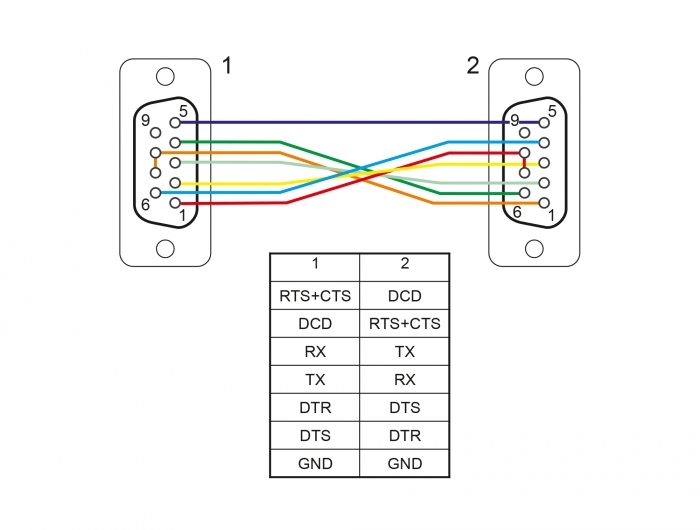

• Pin assignment: 7+8 – 1, 2 – 3, 3 – 2, 4 – 6, 6 – 4, 5 – 5, 1 – 7+8, shielded
• Colour: black
• Insulator: PVC
• Screw type: #4-40 UNC
• Cable diameter: ca. 5 mm
• Cable length incl. connectors: ca. 5 m
Package content:
• Cable
Data sheet:
http://www.delock.de/produkt/87784/pdf.html?sprache=en
