Delock Cable RS-232 Serial pin header female to DB9 male layout 1:1

DELOCK

89900

Jauns

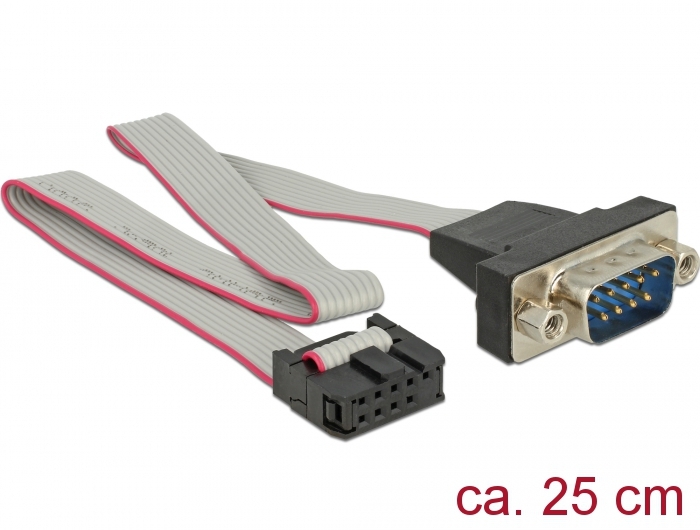

This serial RS-232 cable by Delock offers the possibility to connect an internal standard RS-232 connector to the outside of the computer housing. The serial DB9 connector is suitable for mini PCs, industrial computers, brackets etc.
System requirements:
• A free COM port internal
• PC with one free DB9 case opening
Specification:

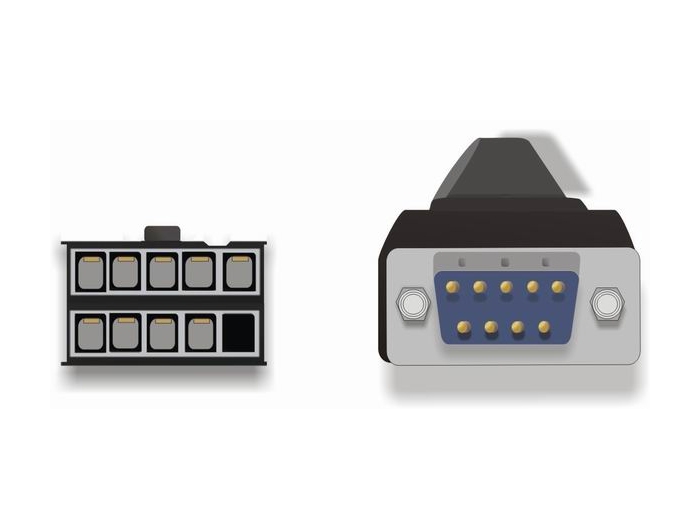

• Connectors:
  internal: 1 x 9 pin COM port pin header female
  external: 1 x serial RS-232 DB9 male with nuts
• Pitch: 2.54 mm
• Cable length: ca. 25 cm
• Cable colour: grey

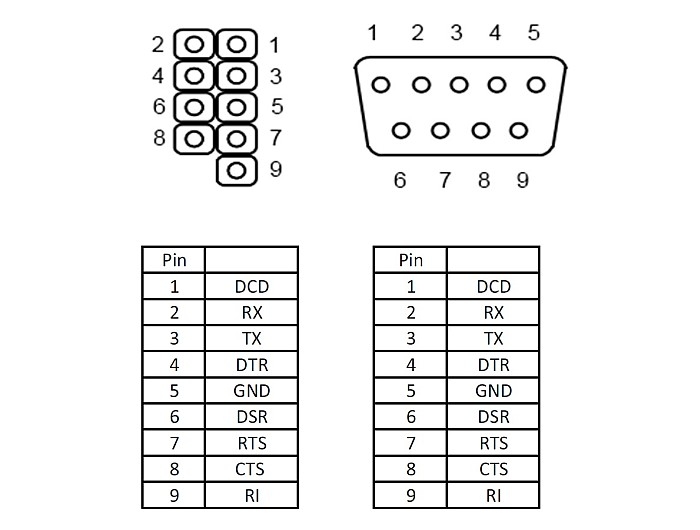

• Pin layout serial > pin header port
  1-1, 2-2, 3-3, 4-4, 5-5, 6-6, 7-7, 8-8, 9-9
Package content:
• Cable with 1 x COM port
Data sheet:
http://www.delock.de/produkt/89900/pdf.html?sprache=en
