Delock M12 T-Splitter A-coded 4 pin male to 1 x male und 1 x female parallel connection

Delock M12 T-Splitter A-coded 4 pin male to 1 x male und 1 x female parallel connection

DELOCK

60580

Jauns

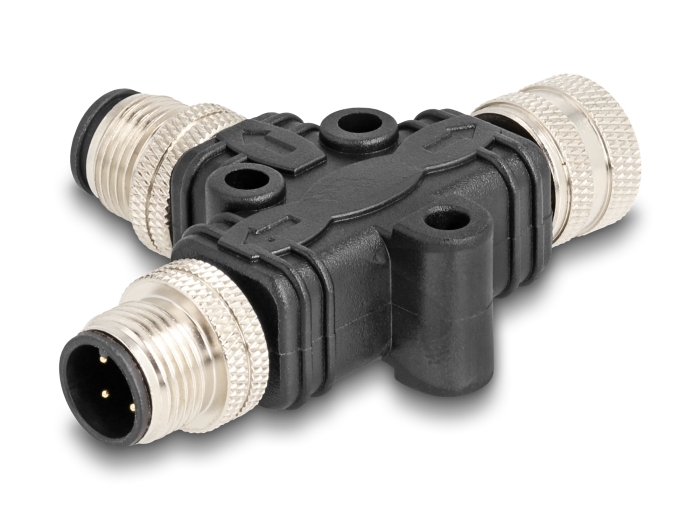

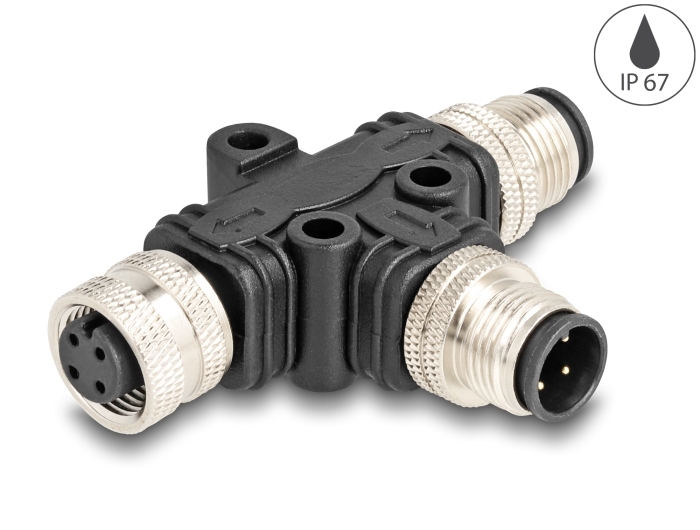

This industrial T-splitter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
System requirements:
• A free M12 male port
• Two free M12 female ports
Specification:

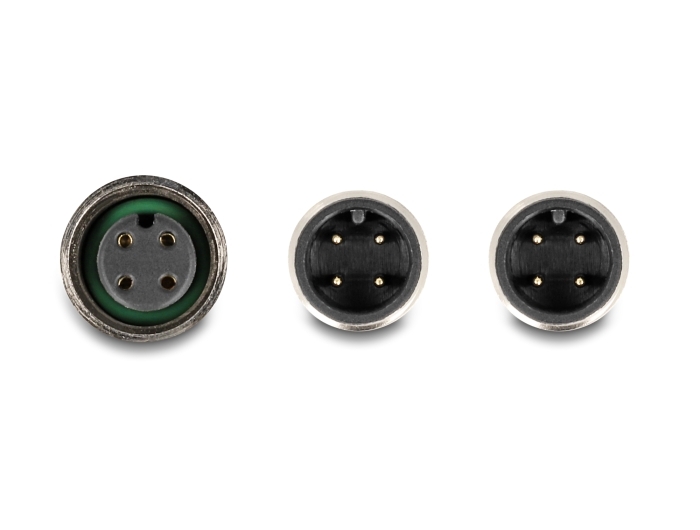

• Connectors:
  1 x M12 A-coded 4 pin male
  1 x M12 A-coded 4 pin male + 1 x M12 A-coded 4 pin female
• Housing material: PVC
• Contacts gold-plated
• Operating voltage: max. 250 V
• Current: max. 4 A
• Operating temperature: -25 °C ~ 85 °C
• Protection class: IP67
• Thread size: M12 x 1.0 mm
• Colour: black
• Dimensions (LxWxH): ca. 51 x 37 x 15 mm
Package content:
• T-splitter
Data sheet:
http://www.delock.de/produkt/60580/pdf.html?sprache=en
