Delock 2.5″ Converter SATA 22 pin / USB 2.0 Type Mini-B > 1 x mSATA / Mini PCIe Slot

Kods 62853

Condition: Jauns

Vairāk informācijas

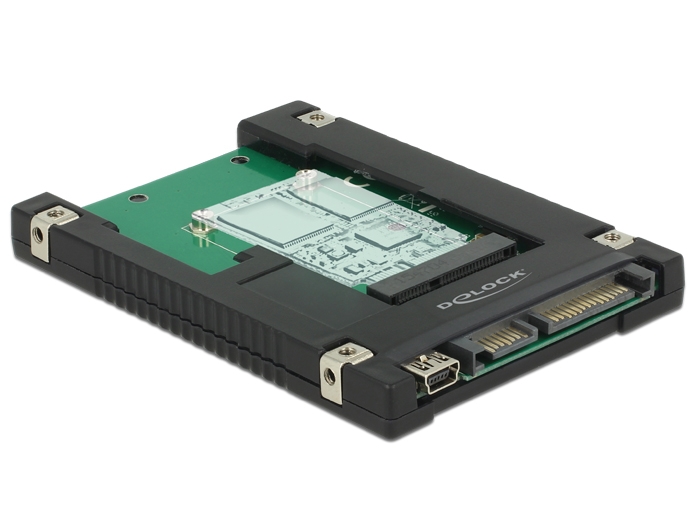

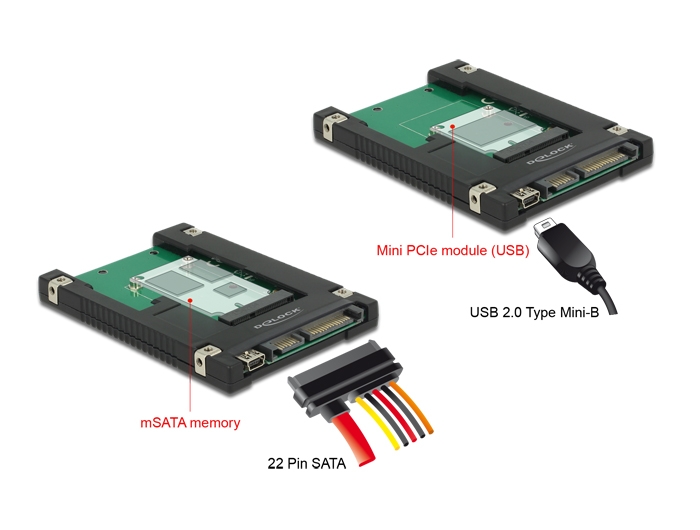

This converter by Delock enables the connection of an mSATA SSD in half size or full size format and it can be used as a replacement for 2.5″ HDD. Therefor the converter will be connected via the SATA 22 pin interface with your system, optional the power supply can be held by the USB port.
Further, instead of the mSATA SSD, a Mini PCIe module based on USB can be connected and will be integrated to the system via the USB Mini-B port.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.19
• A free SATA 22 pin interface
• A free USB interface (for Mini PCIe or power supply)

Specification:
• Connectors:
1 x SATA 6 Gb/s 22 pin plug
1 x USB 2.0 Type Mini-B female
1 x mSATA / Mini PCIe slot (half size / full size)
• Interface Mini PCIe: USB
• Form factor: 2.5″
• Data transfer rate up to 6 Gb/s
• For 3.3 V mSATA module
• Power supply via SATA 15 pin plug or Mini USB female
• Bootable
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm

Package content:
• Converter
• User manual

Data sheet:
http://www.delock.de/produkt/62853/pdf.html?sprache=en
