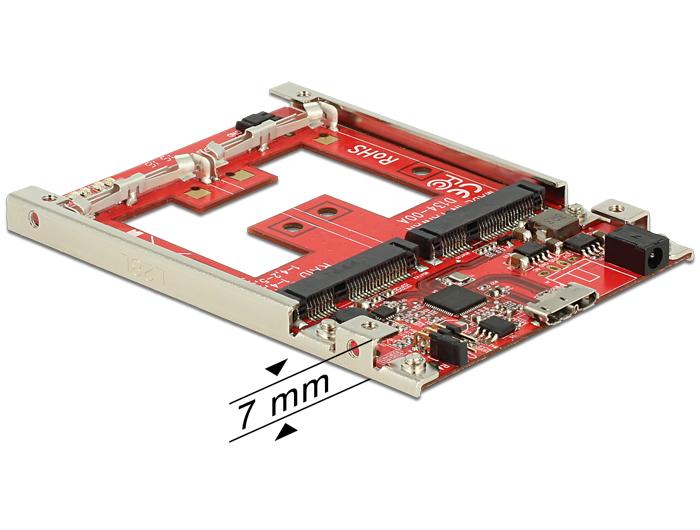

Delock 2.5 Converter USB 3.1 Type Micro-B female 2 x mSATA with RAID

Description:
This Delock converter connects up to two mSATA SSD which can be mounted like a 2.5″ HDD. The converter has to be installed into the system through the USB interface.

Specification:
• Connector:
1 x SuperSpeed USB 10 Gbps (USB 3.1, Gen 2) type Micro-B female
2 x mSATA slots (full size)
1 x DC female (optional power supply for mSATA modules)
• Chipset: Asmedia ASM1352
• Form factor: 2.5″
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps,
SATA 6 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Jumper for RAID mode
• For 3.3 V mSATA module
• 4 x LED indicator
• Also suitable for half size modules
• Supports RAID 0, 1, JBOD, SPAN, Mirror, Port Multiplier
• Supports ATA/ATAPI Packet command set and ATA/ATAPI LBA 48 addressing mode
• Power supply for the converter board via USB connector
• Power supply for the mSATA modules via USB connector or DC connector
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary

System requirements:
• One free USB port

Package content:
• Converter incl. metal frame

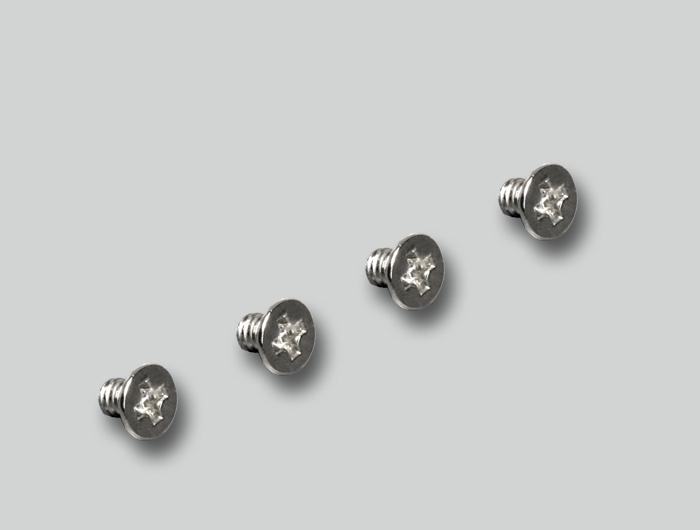

• 4 x screw
• User manual
