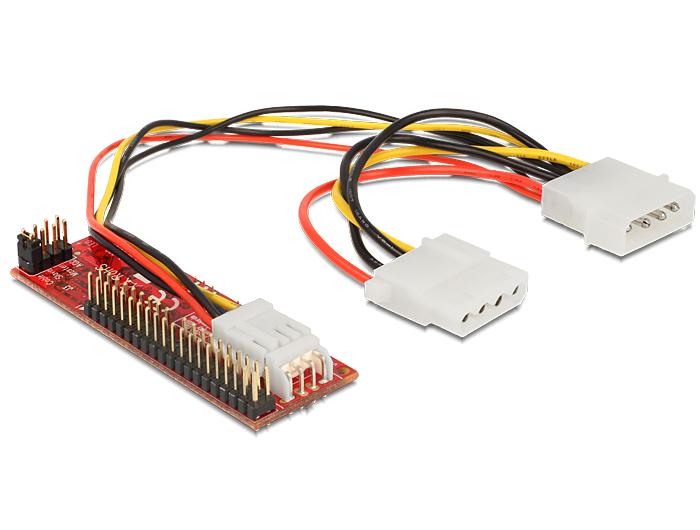

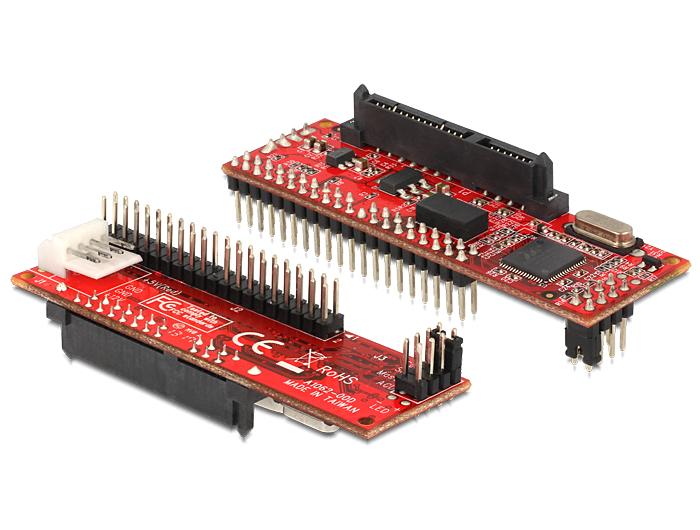

Delock Converter SATA IDE

Description:
The Delock converter enables the connection of a SATA device to the IDE interface.

Specification:
• Connector:
1 x SATA 22 pin female >
1 x IDE 40 pin male
1 x 4 pin power connector
• Compliant to Serial ATA 3 Gb/s
• Ultra ATA/133 Parallel interface
• Jumper for selecting Master / Slave and Cable Select
• Supports PIO and UDMA modes
• Supports SATA HDDs and SATA drives like CD-ROM, DVD-ROM, Blu-Ray etc.
• Dimensions (LxWxH): ca. 75 x 23 x 21 mm
• OS independent, no driver installation necessary

System requirements:
• A free IDE 40 pin port

Package content:
• Converter SATA > IDE
• Power cable
• User manual
