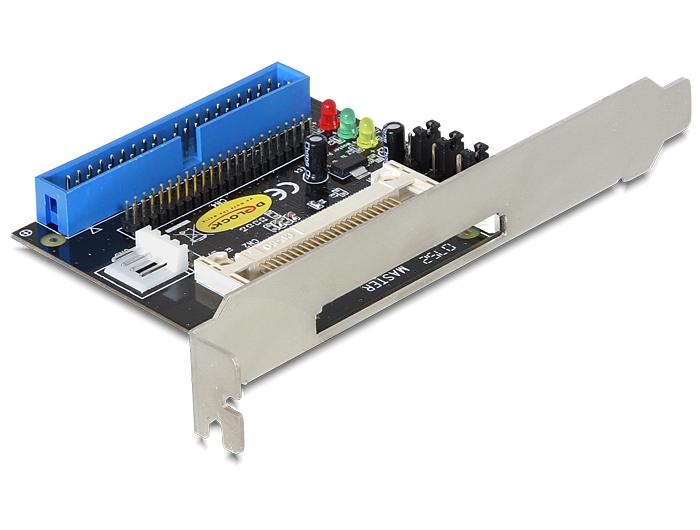

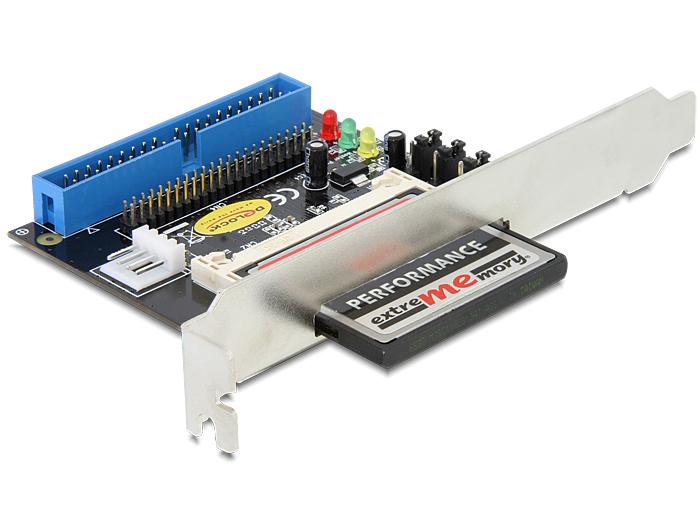

Delock Card Reader IDE to Compact Flash

Description:
This internal Card Reader can be installed into a free slot of your PC case or without slot bracket internally as card reader board. It enables you to use a Compact Flash card via an IDE interface. The optional CF card works as additional storage space, as well as HDD for an operating system.

Specification:
• Connector:
external:
1 x CF slot
internal:
1 x IDE 40 pin male
1 x IDE 44 pin male
1 x Molex 4 pin power connector
• Bootable
• Supports +3.3 V or 5 V Compact Flash cards
• Supports Compact Flash type I, type II or Micro Drive
• Master or Slave mode selection
• OS independent, no driver installation necessary

System requirements:
• PC with one free slot
• A free IDE port
• One IDE cable
• Power supply with a free Molex power connector

Package content:
• IDE to Compact Flash Card Reader
• User manual
