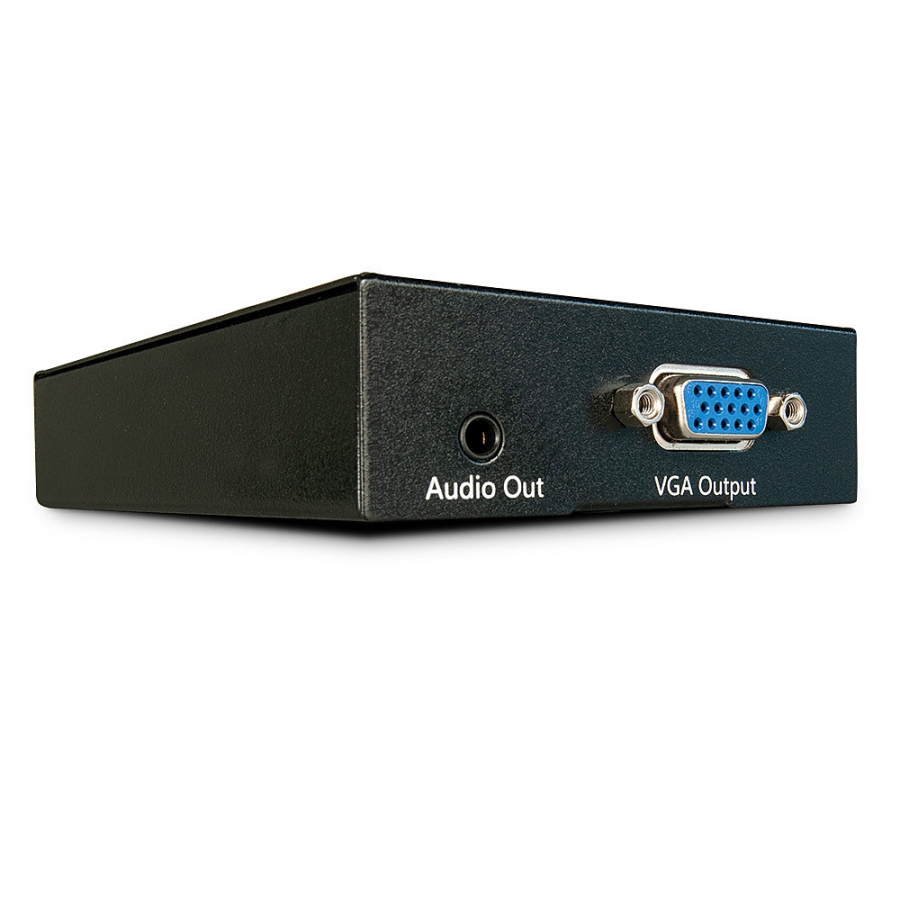

Lindy VGA & Audio Cat.5e Extender 300m - Receiver

Features

• Supports display resolutions up to 1920x1200@60Hz or 1600x1200@60hz or 2048x1536@60Hz
• Supports output of mono audio signals (left and right stereo channels are combined)
• The transmitter unit integrates a 4 ports video splitter to distribute the signal to up to 4 remote receiver units
• Allows video & audio signals to be extended up to a maximum distance of 300m via high quality solid core Cat.5e/6 cables. A skew compensation unit like LINDY no. 32766 may be required to get the best image quality especially at very large cable distances.
• Gain and Peak adjustment option on the receiver unit No. 35402.
• Supports local monitor and speakers out ports on the transmitter unit No.35401

Package Contents

• VGA & Audio Cat.5e/6 4 ports Extender – Single Receiver Unit
• 5V DC ~1A Multi Country power supply
• User Manual

Tips

Please use short VGA and audio cables (i.e. 1m) to ensure the best results.

Using additional RJ45 plug/receptacle connections as well as the use of stranded cores patch cables in the Cat.5e/6 connection will reduce the maximum distance significantly!
