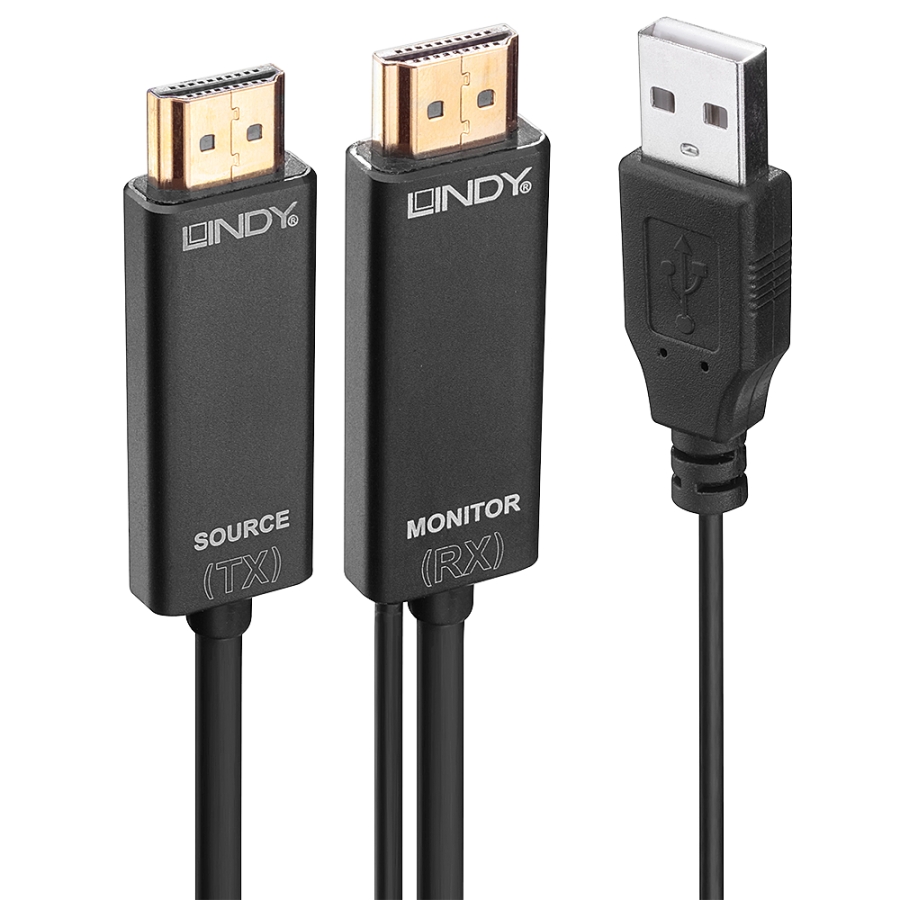

10m Fibre Optic Hybrid HDMI 2.0 18G Cable

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: Zinc Alloy
• Connector Plating: 24K Gold 3µm
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold 30µm
• Dimensions (approx.) WxDxH: 55x17x0.9mm (2.17x0.67x0.04in)

Cable Construction

• Length: 10m (32.81ft)
• Standard: HDMI 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.6mm (0.18in)
• Jacket Material: PVC LS0H
• Conductor Material: Fibre / Copper
• Conductor Gauge: 50/125µm / 24 AWG Copper
• Shielding: Aluminium Mylar

Specifications

• Supported Bandwidth: 18 Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation:
  • 850nm < 3.5dB
  • 1300nm < 1.2dB
• Minimum Bend Radius: 60mm (2.36in)
• Operating Temperature: -20°C - 60°C (-4°F - 140°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

• Packaging Type: Carton box
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Purchasing Information

• No.: 38274
• EAN: 4002888382748

This product is also available in other lengths

• 10m (32.81ft) - 38274
• 20m (65.62ft) - 38275
• 30m (98.42ft) - 38276
• 40m (131.23ft) - 38277
• 50m (164.04ft) - 38278
• 70m (229.66ft) - 38279
• 100m (328.08ft) - 38280
