Delock Fiber optic wall distribution box with double door grey

Delock Fiber optic wall distribution box with double door grey

DELOCK

86837

Jauns

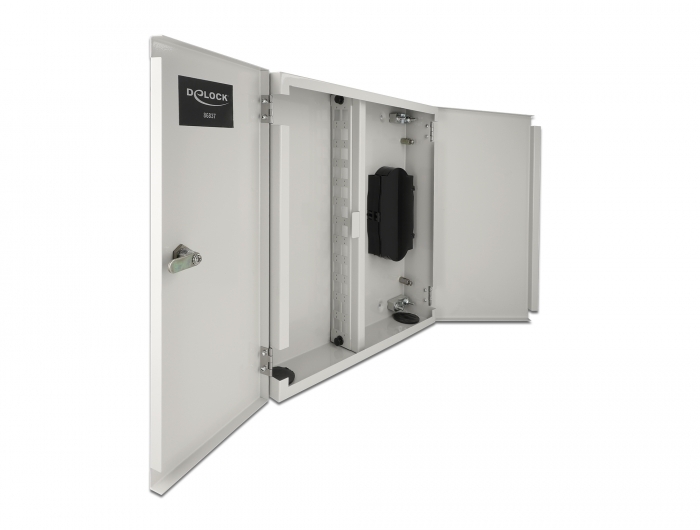

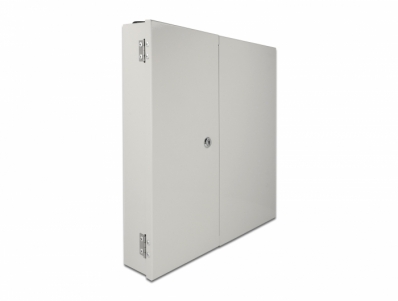

This fiber optic distribution box by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The integrated adapter plate allows to accommodate 24 fiber optic couplings of the types SC, LC, FC, ST or E2000 in the distribution box. The fiber optic cables can be fixed in the housing via two cable entry openings at the top and bottom with metric cable glands.
Specification:
• Fiber optic cable wall distributor lockable
• Adapter plate for up to 48 fibers
• 2 cable entry openings at the top and bottom
• Housing material: metal
• Housing colour: grey
• Dimensions (LxWxH): ca. 402 x 325 x 110 mm

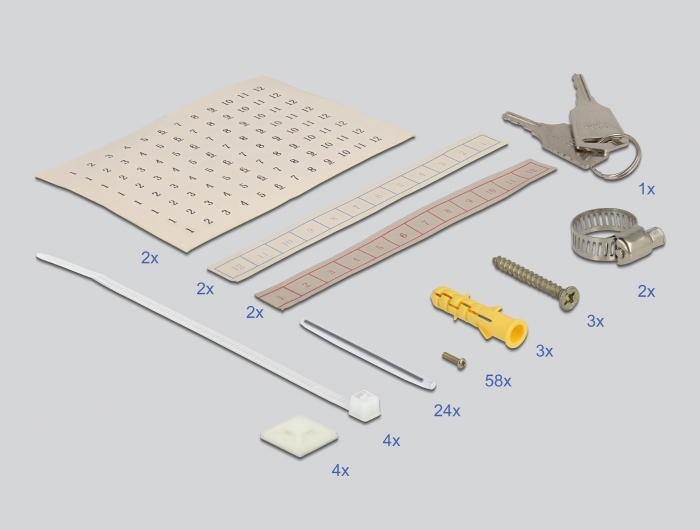

Package content:
• Fiber optic wall distribution box
• 1 x splice cassette
• 2 x keys
• 4 x zip-tie
• 4 x cable tie mount for cable ties
• 2 x screw clamp
• 3 x screw
• 3 x dowel
• 2 x self-adhesive label numbers 8 x 1 - 12 black
• 2 x self-adhesive label numbers 1 - 12 red
• 2 x self-adhesive label numbers 1 - 12 blue
• 24 x fiber optic heat shrink tube
Data sheet:
http://www.delock.de/produkt/86837/pdf.html?sprache=en
