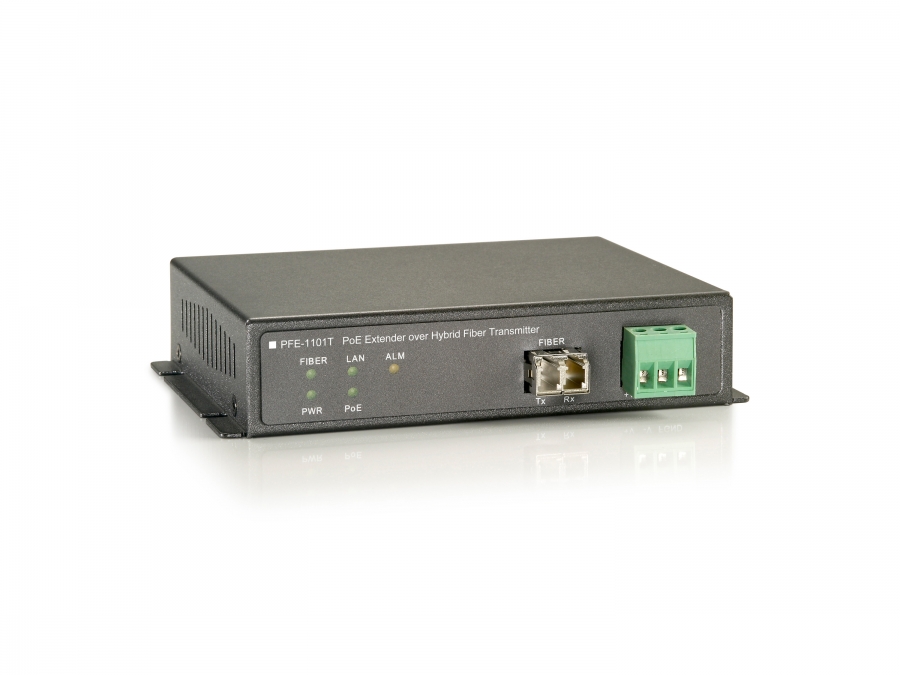

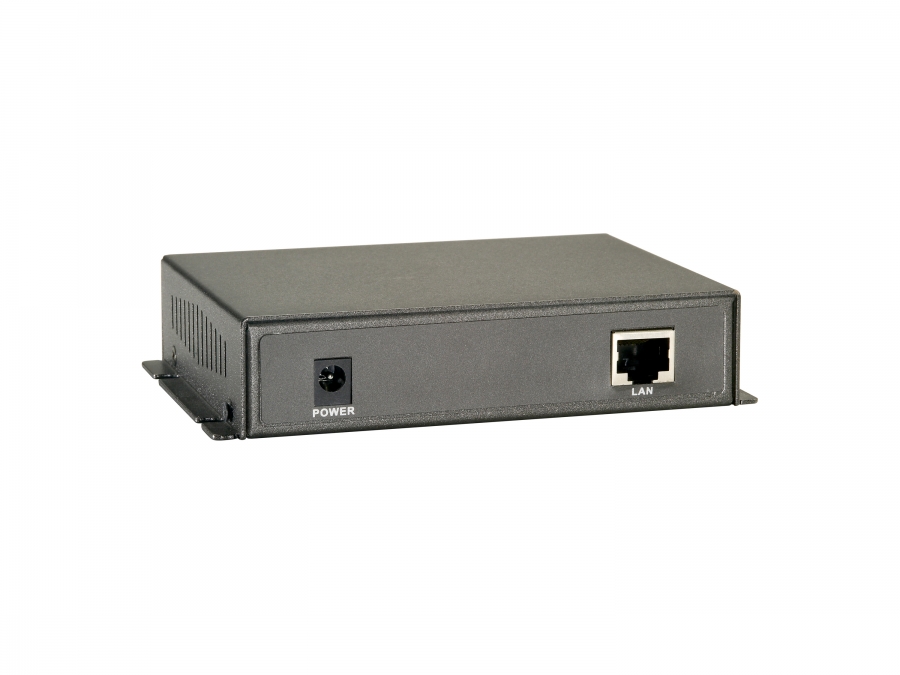

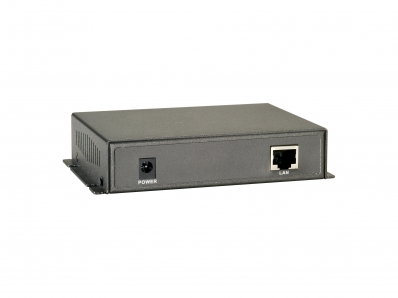

Level One LevelOne PoE Extender Hybrid PFE-1101T Transmitter

LEVEL ONE

PFE-1101T

Jauns

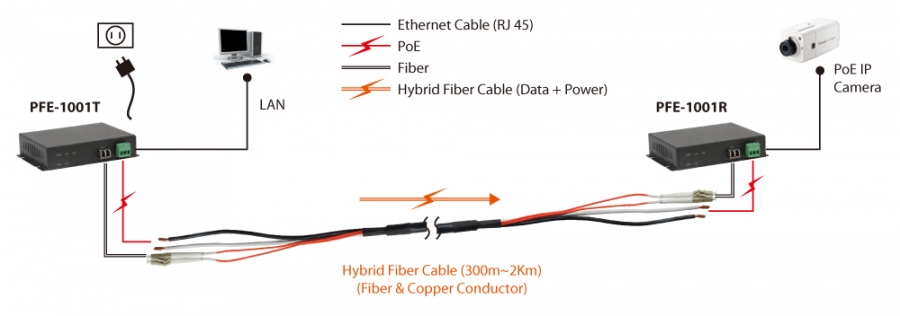

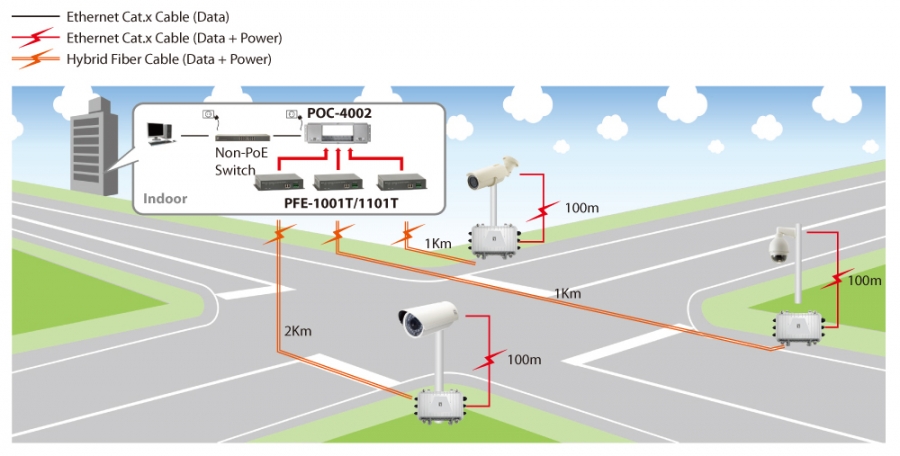

Using hybrid fiber and copper cable, the LevelOne PFE range can deliver integrated power and data over a distance of 6,800 ft (2km) to a receiver which provides high-power PoE output for IP surveillance applications. A tough outdoor range (PFE-1011/1014) provides the same performance within a durable IP66-rated waterproof housing for harsh environmental conditions and temperature range of -40°C to 60°C.- Extend data and power up to 2km via a single Hybrid Fiber Cable - Enable PoE devices to distant remote location - Supporting high power consumption devices (up to 60W at 450m link) - Flexible installation option - 1 or 4 PoE output receivers selectable - Outdoor casing protects operation under wide temperature range (PFE-1011R/1014R) - Outdoor weatherproof models are sustainable from water and dust (PFE-1011R/1014R)

TypeNetwork transmitter
Maximum transfer distance2000 m
Data transfer rate100 Mbit/s
Auto MDIX IEEEY
Auto-negotiationY
Duplex systemFull
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports1
Product colourBlack
LED indicatorsLAN, PoE, Power
CertificationCE, FCC
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (typical)120 W
External power adapterY
Power over Ethernet (PoE)Y
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width133 mm
Depth90 mm
Height28 mm
Weight250 g
Quick start guideY
AC adapter includedY
Package width222 mm
Package depth146 mm
Package height78 mm
Package weight200 g
Harmonized System (HS) code85176990
