Level One LevelOne POR-0101 PoE Repeater +100m Netzwerkkabel o.Netztei

LEVEL ONE

POR-0101

Jauns

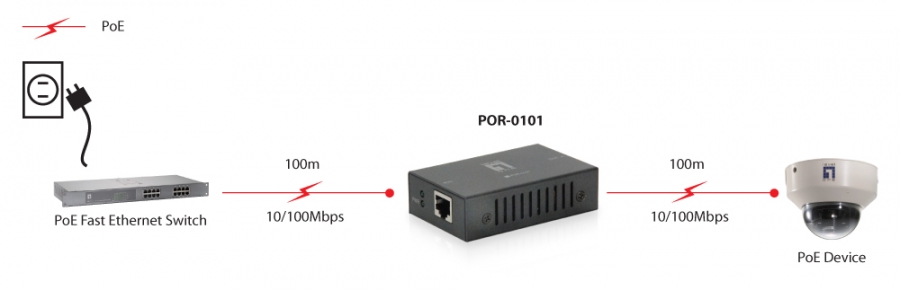

For system integrators looking for a professional solution to help extend their PoE network, POR-0101 is the perfect accessory to increase your Power over Ethernet network performance. LevelOne POR-0101, a 1-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters. The delivery though one PoE port and one non-PoE port are adequate to extend network devices such as WLAN Access Points, Network Cameras and other appliances with high-speed to the network for greater deployment flexibility.- High Power Midspan PoE compliant to simplify deployment and installation - 10/100Mbps wire speed transmission and reception - Forwards Power over Ethernet to remote device - Extends PoE connection for another 100 meters - Simple Plug and Play installation, no additional power supply required

TypeNetwork repeater
Maximum transfer distance100 m
Data transfer rate100 Mbit/s
Plug and PlayY
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ethernet LAN (RJ-45) ports2
Power over Ethernet (PoE) ports quantity2
Product colourBlack
Mounting typeWall
LED indicatorsPoE, Power
Country of originTaiwan
CertificationFCC Part 15, Class B, CE
Power consumption (max)2.5 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) voltage range46 - 57 V
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Width80 mm
Depth70 mm
Height23 mm
Weight200 g
Sustainability certificatesRoHS
Quick start guideY
Package typeBox
Package width93 mm
Package depth43 mm
Package height140 mm
Package weight100 g
Harmonized System (HS) code85176990
