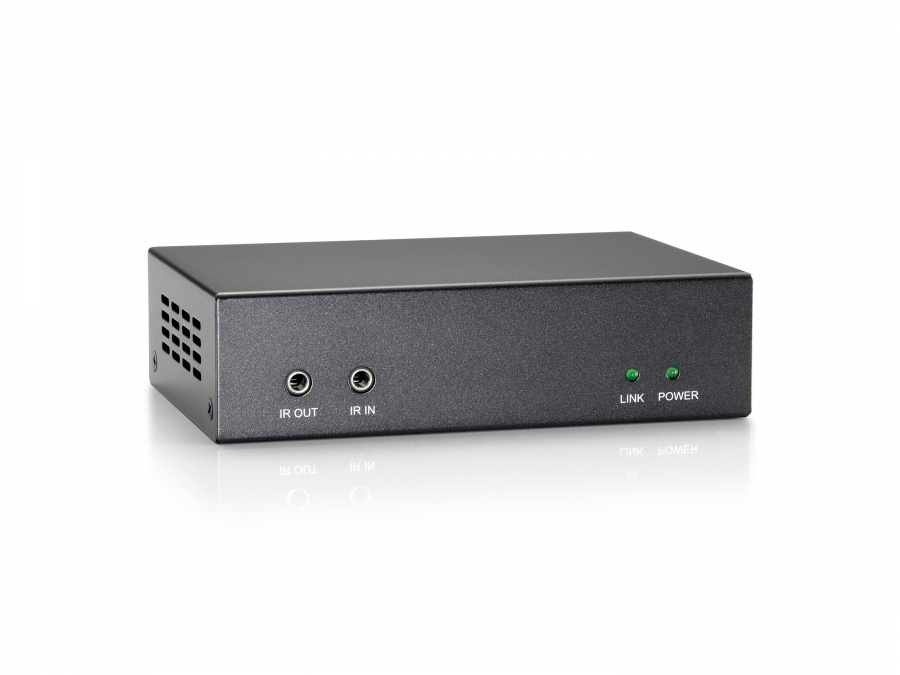

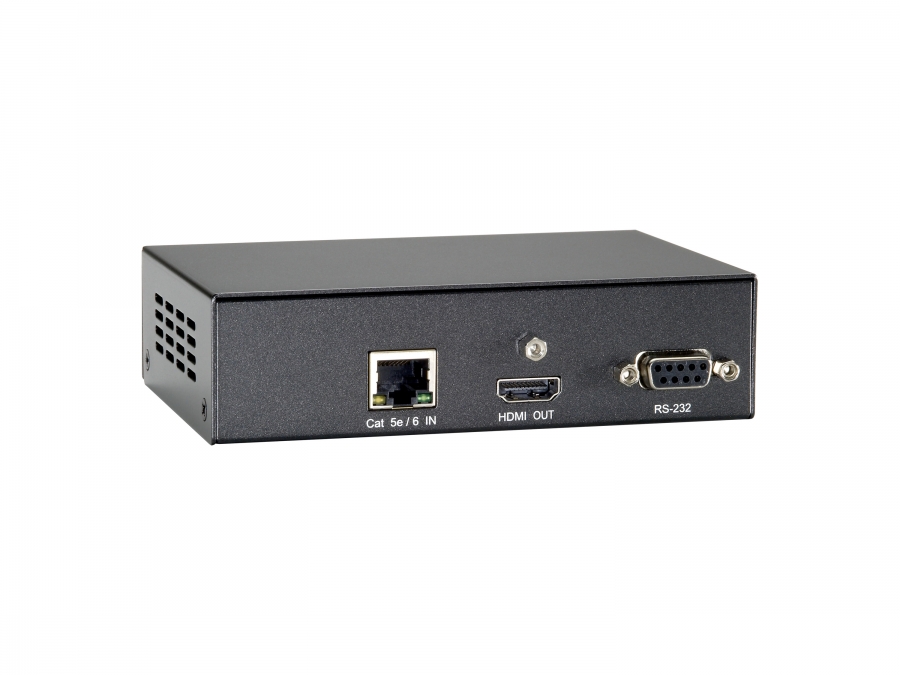

Level One LevelOne HDMI HVE-9211PR über Cat5 Extender HD PoE 100m

LEVEL ONE

HVE-9211PR

Jauns

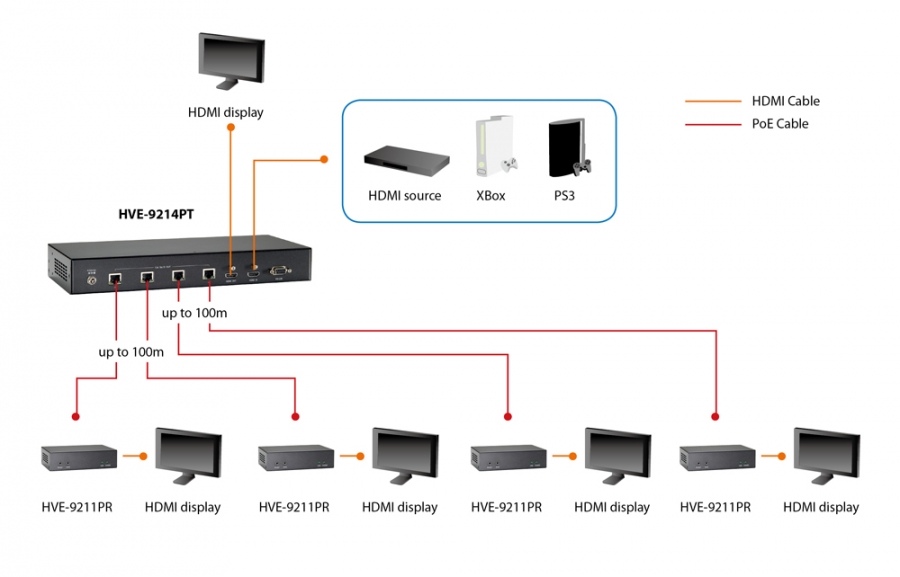

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.Key Features - IEEE 802.3af PoE compliant to simplify deployment and installation - Simple Plug and Play installation - Built-in EDID Hot Plug Detection (HPD) - HDMI outputs with EDID management - Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232 - Bi-Directional RS-232 pass through & IR Control - Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz - HDMI and HDCP complaint - Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio - Supports 3D, CEC & Lip Sync pass-through

TypeAV receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance100 m
LED indicatorsActivity, Power
Supported video modes720p, 1080p
Bandwidth10.2 Gbit/s
Bandwidth0.038 MHz
HDCPY
MaterialMetal
Colour depth48 bit
3DY
HDCP & EDID bypassY
Baud rate115 Kbit/s
Plug and PlayY
Networking standardsIEEE 802.3af
Product colourBlack
Ethernet LANY
RJ-45 input ports1
RS-232 input ports1
3.5 mm (1/8-inch) inY
3.5 mm (1/8-inch) outY
Power consumption (receiver) (max)1110 mA
Power over Ethernet (PoE)Y
Dimensions (WxDxH)125 x 85 x 40 mm
Width125 mm
Depth85 mm
Height40 mm
Package width190 mm
Package depth150 mm
Package height120 mm
Package weight814 g
ManualY
