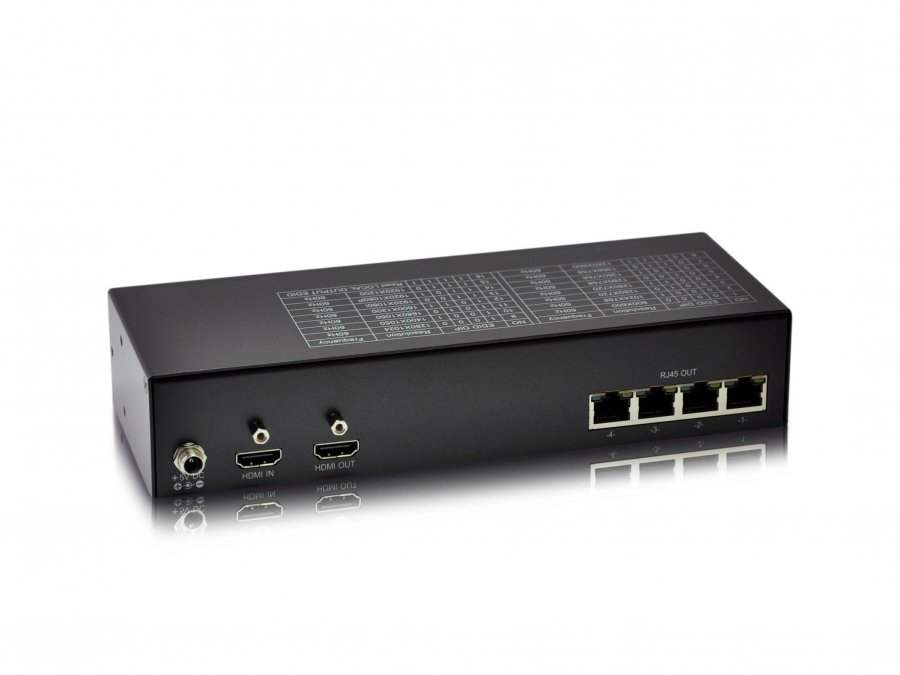

> >>Level One LevelOne HDMI HVE-9114T over Cat.5 Extender Kit HD 300m
Level One LevelOne HDMI HVE-9114T over Cat.5 Extender Kit HD 300m

Level One LevelOne HDMI HVE-9114T over Cat.5 Extender Kit HD 300m

LEVEL ONE

HVE-9114T

Jauns

The LevelOne 300 Metre HDMI Extender offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra HD signal broadcasts up to 300 metres from the source. Featuring both a transmitter and a receiver, signals are distributed over Ethernet cables, providing a crystal-clear, high-definition signal without the expense of using optical fiber.The LevelOne 300 Metre HDMI Extender features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.Key Features - Transmission distance of up to 300m for 4k2k resoltuion - HDMI outputs with EDID management - Screw-in power socket for added safety

TypeAV transmitter
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5
Maximum transfer distance300 m
Maximum refresh rate60 Hz
LED indicatorsY
Supported video modes1080p
Bandwidth340 MHz
HDCP & EDID bypassY
Product colourBlack
Connectivity technologyWired
RJ-45 output ports4
HDMI in1
Number of HDMI outputs1
AC input voltage5 V
Input current2 A
Power consumption (transmitter) (max)800 mA
Operating temperature (T-T)0 - 48 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 80%
Width85 mm
Depth220 mm
Height44 mm
Weight600 g
Transmitter dimensions (WxDxH)220 x 85 x 44 mm
Transmitter weight600 g
Package width170 mm
Package depth295 mm
Package height120 mm
Package weight855 g
Package typeBox
AC adapter includedY
Cables includedAC
Quick start guideY
Country of originTaiwan
Master (outer) case width320 mm
Master (outer) case length630 mm
Master (outer) case height400 mm
Master (outer) case gross weight1.4 kg
Products per master (outer) case10 pc(s)
