Level One LevelOne HDMI HVE-9111T over Cat.5 Transmitter 300m

LEVEL ONE

HVE-9111T

Jauns

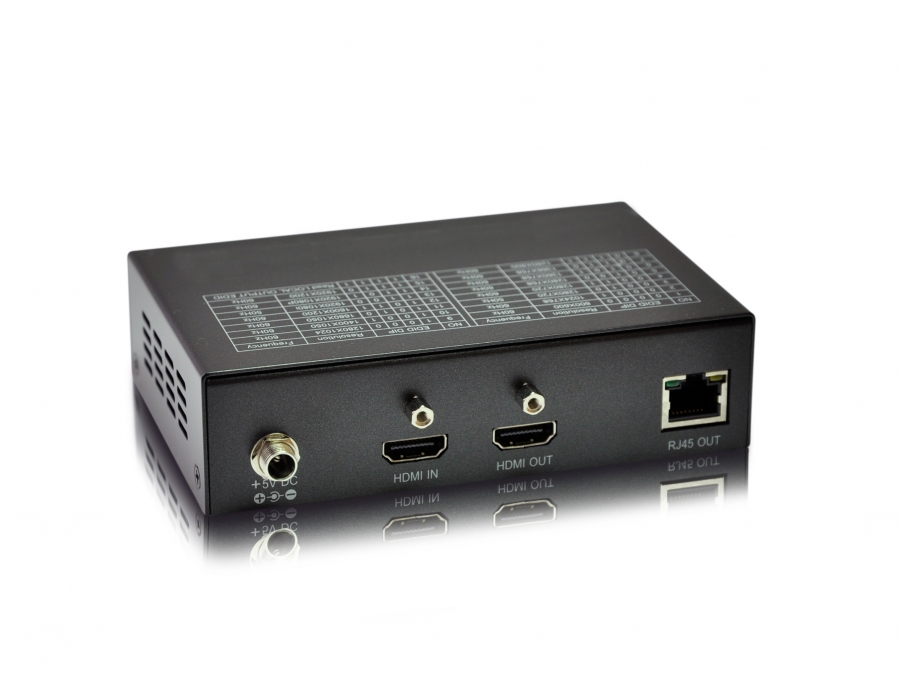

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.The LevelOne HVE-9111T is a HDMI Transmitter with 1 HDMI local output port and 1 link port for connecting to 1 receiver.- Transmission distance of up to 300m for 4k2k resolution - HDMI outputs with EDID management - Screw-in power socket for added safety

TypeAV transmitter
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5
Maximum transfer distance300 m
Maximum refresh rate60 Hz

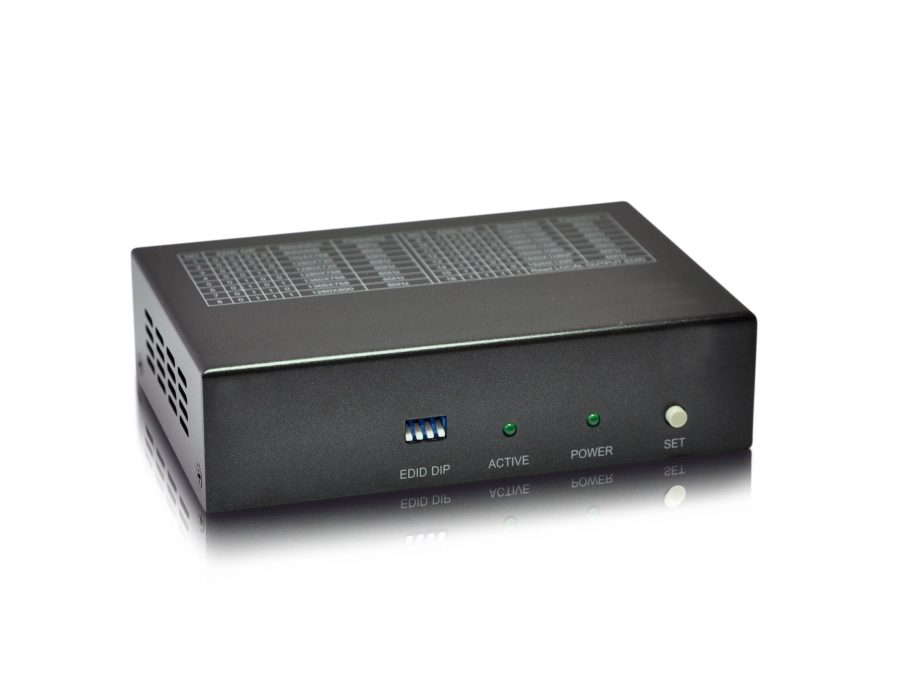

LED indicatorsActivity, Power
Supported video modes1080p
Bandwidth340 MHz
HDCP & EDID bypassY
Product colourBlack
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
AC input voltage5 V
Input current2 A
Power consumption (transmitter) (max)700 mA
Operating temperature (T-T)0 - 48 °C
Operating relative humidity (H-H)10 - 90%
Width85 mm
Depth130 mm
Height35 mm
Weight365 g
Transmitter dimensions (WxDxH)130 x 97 x 35 mm
Transmitter weight358.9 g
Package dimensions (WxDxH)170 x 295 x 120 mm
Package width170 mm
Package depth295 mm
Package height120 mm
Package weight620 g
AC adapter includedY
Quick start guideY
Country of originTaiwan
Master (outer) case width320 mm
Master (outer) case length630 mm
Master (outer) case height400 mm
Master (outer) case gross weight1.4 kg
Products per master (outer) case10 pc(s)
