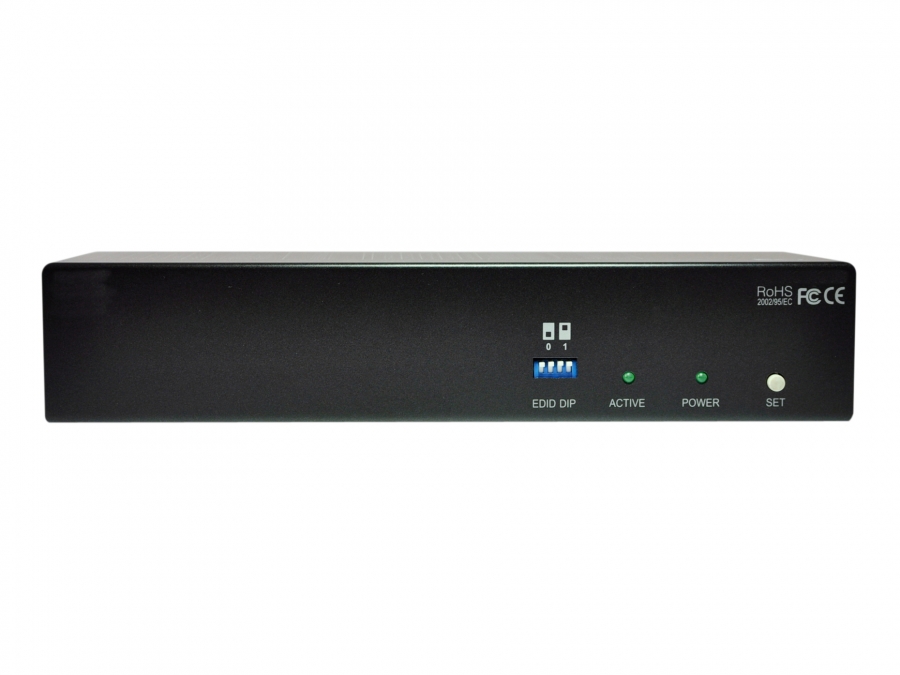

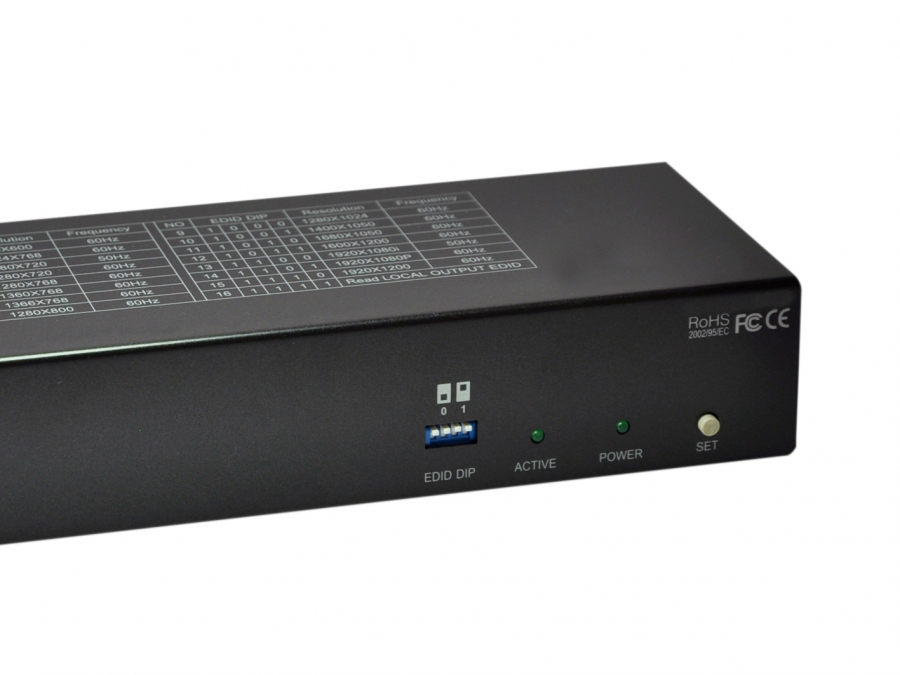

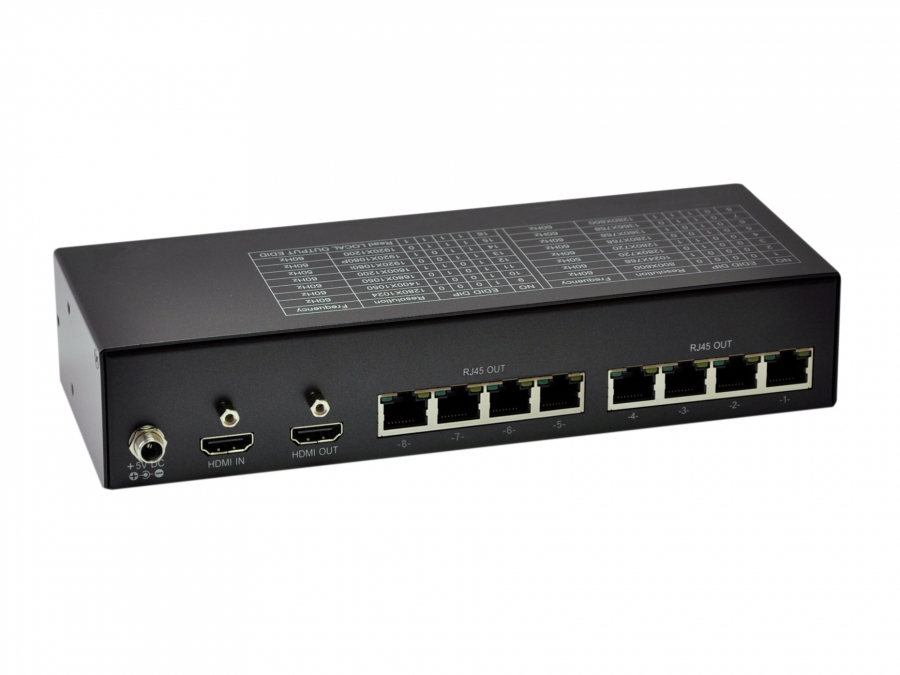

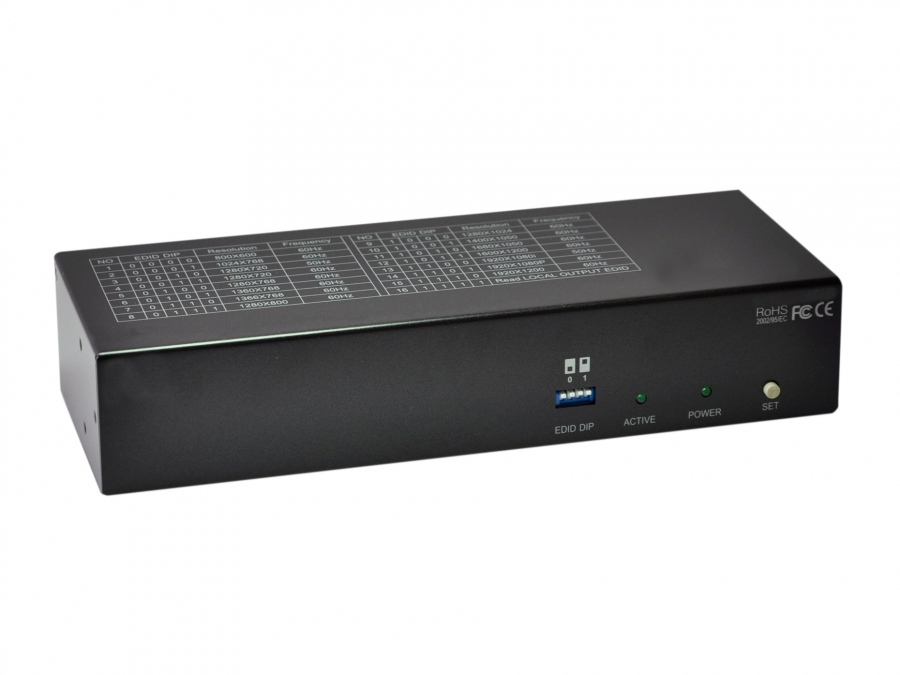

Level One LevelOne HDMI HVE-9118T over Cat.5 Transmitter 300m

LEVEL ONE

HVE-9118T

Jauns

The LevelOne HVE-91 HDMI Extender series offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra/Full HD (4K/1080P) signal broadcasts up to 300 metres from the source. HDMI signals are distributed over Ethernet cables between the transmitters and receivers, providing a crystal-clear, high-definition signal without the expense of using optical fiber.The HVE-91 series features an in-built 4K Ultra HD video scaler, revolutionary technology which enables the user to find the optimal signal, regardless of the input specifications.The LevelOne HVE-9118T is a HDMI Transmitter with 1 HDMI local output port and 8 link ports for connecting to 8 receivers.- Screw-in power socket for added safety - HDMI outputs with EDID management - Transmission distance of up to 300m for 4k2k resolution

TypeAV transmitter
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5
Maximum transfer distance300 m
Maximum refresh rate60 Hz
LED indicatorsActivity, Power
Supported video modes1080p
Bandwidth340 MHz
HDCP & EDID bypassY
Product colourBlack
RJ-45 output ports8
HDMI in1
Number of HDMI outputs1
AC input voltage5 V
Input current2 A
Power consumption (transmitter) (max)900 mA
Operating temperature (T-T)0 - 48 °C
Operating relative humidity (H-H)10 - 80%
Width90 mm
Depth220 mm
Height45 mm
Weight612 g
Transmitter dimensions (WxDxH)220 x 83 x 44 mm
Transmitter weight650 g
Package dimensions (WxDxH)173 x 305 x 122 mm
Package weight1.18 kg
Package typeBox
AC adapter includedY
Cables includedAC
Quick start guideY
Country of originTaiwan
Master (outer) case width400 mm
Master (outer) case length330 mm
Master (outer) case height630 mm
Master (outer) case gross weight13 kg
Products per master (outer) case10 pc(s)
