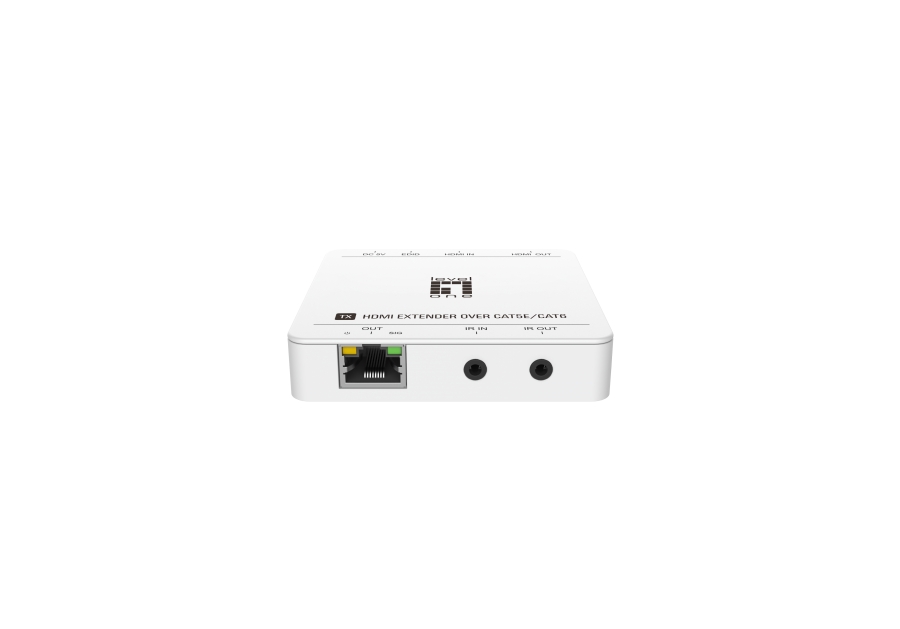

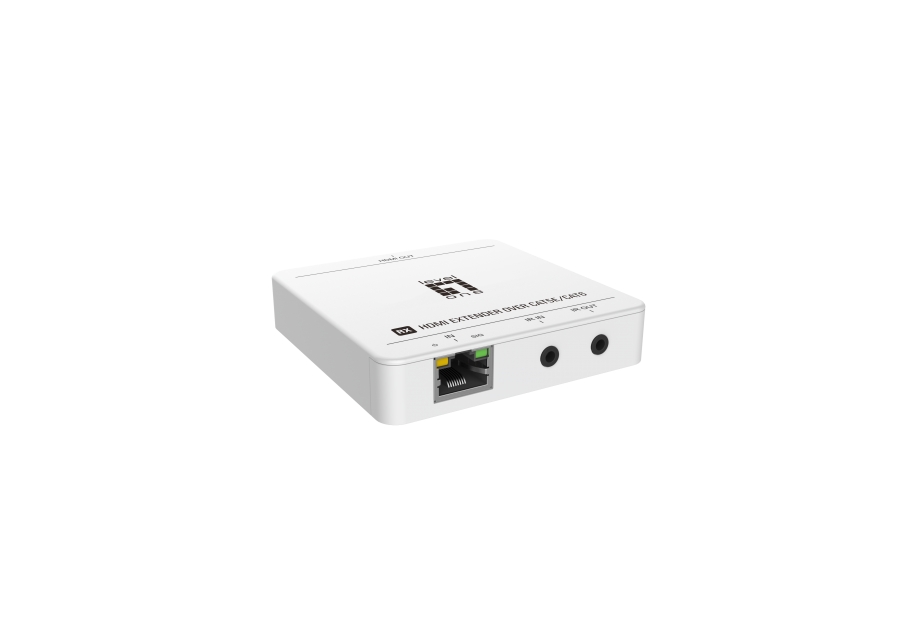

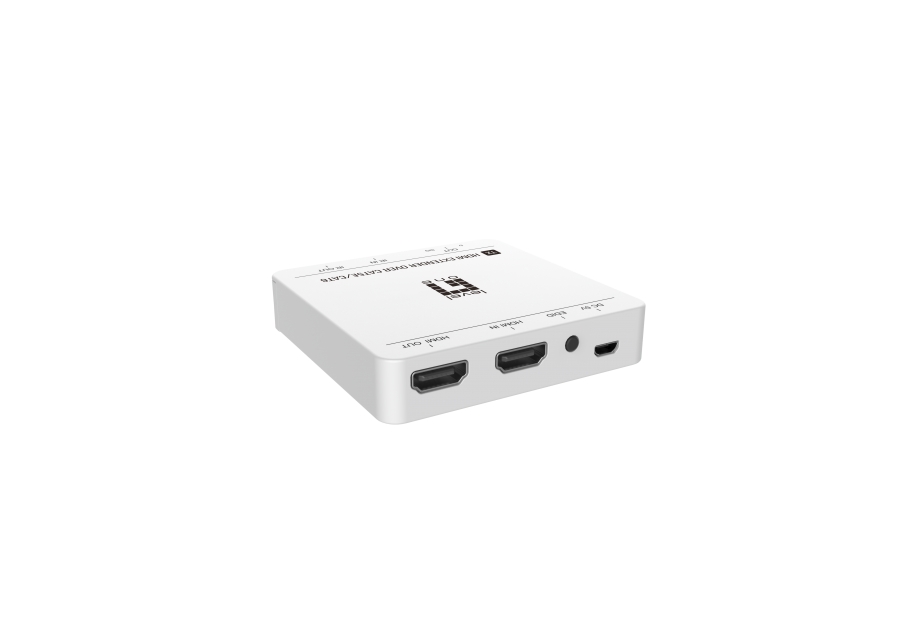

Level One LevelOne HDMI over Cat.5/6 Extender kit 4K,50 Meter

LEVEL ONE

HVE-9007

Jauns

The LevelOne HDMI Extender offers a ground-breaking solution for long range HDMI deployments, extending the range of Ultra HD signal broadcasts up to 50 metres from the source. Featuring both a transmitter and a receiver, signals are distributed over Ethernet cables, providing a crystal-clear, high-definition signal without the expense of using optical fiber.LevelOne HDMI Extender also supports both HDCP 1.4 and 2.2 which is sufficient to cover majority of HDMI devices. (Source and devices are needs to be same HDCP version)

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance70 m
Maximum refresh rate60 Hz
IR pass-throughY
HDCP pass-throughY
BidirectionalY
HDCPY
HDCP & EDID bypassY
Plug and PlayY
HDCP version1.4
Product colourWhite
Connectivity technologyWired
Ethernet LANY
DVI input ports1
DVI output ports1
USB ports quantity1
USB connector typeMicro-USB
Remote (IR) input1
Remote (IR) output1
DC-in jackY
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)0 - 90%
Width16.8 mm
Depth66 mm
Height66 mm
Weight74 g
Quantity per pack1 pc(s)
Package width143 mm
Package depth74 mm
Package height200 mm
Package weight250 g
Package typeBox
AC adapter includedY
Quick start guideY
Country of originChina
Pallet net height150 cm
Pallet net length80 cm
Pallet net width120 cm
