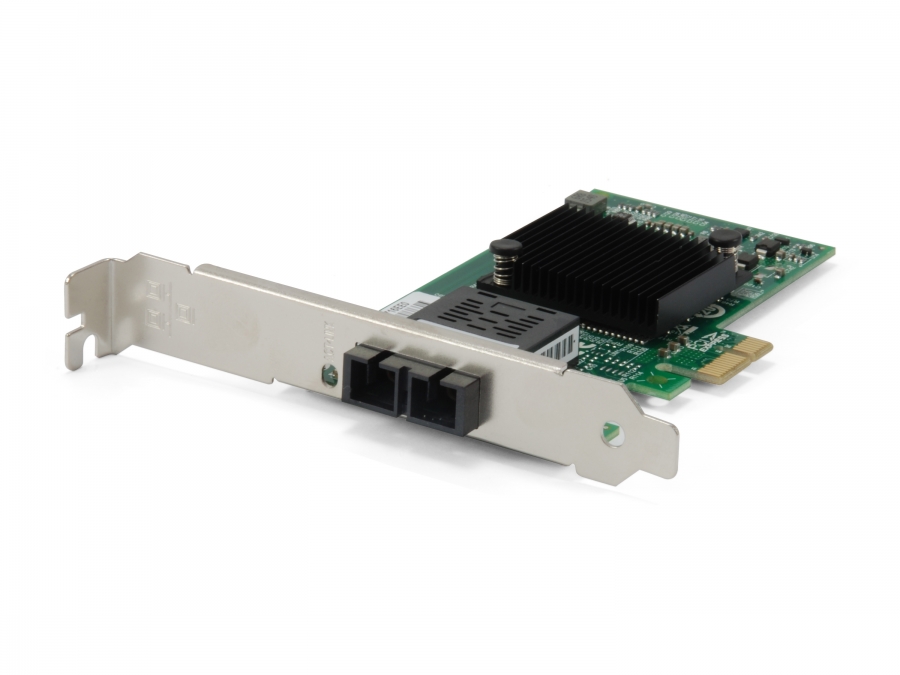

Level One LevelOne 10-Gigabit SC Fiber PCIe Network Card GNC-0200

Kods GNC-0200

Condition: Jauns

Vairāk informācijas

The LevelOne Multimode Fiber Network Adapter GNC-0200 is a high performance PCI Express multifunction network adapter for either standard or low profile slots running over a fiber-optic network environment. Based on Intel 82575EB controller, it is a 1000Base-SX PCI Express x1 fiber nic for desktop use.Key Features - Host Interface standard support PCI Express 2.0a - High performance, reliability, and low power use in Intel 82575EB dual integrated MAC + PHY / SERDES chip controller - Independently Fiber Gigabit Ethernet channel/s support Gigabit Ethernet 1000Base-SX - Ultra deep packet buffer per channel lowers CPU utilization - Hardware acceleration that can offload tasks from the host processor. The controllers can offload TCP/UDP/IP checksum - Calculations and TCP segmentation

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	1
Fiber optic connector	SC
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x
Fiber ethernet cabling technology	1000BASE‑SX
Wake-on-LAN ready	Y
Full duplex	Y
Jumbo frames support	Y
Auto-negotiation	Y
Jumbo frames	9000
VLAN tagging	Y
Internal	Y
LED indicators	Activity, Link
Windows operating systems supported	Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Y
Other operating systems supported	DOS, Novell NetWare 5.x, Novell NetWare 6.x
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	17 mm
Depth	68 mm
Height	115 mm
Weight	67 g
Drivers included	Y
Package width	153 mm
Package depth	30 mm
Package height	230 mm
Package weight	86 g
Mounting brackets included	Y
Manual	Y
Harmonized System (HS) code	85176990
Quick start guide	Y
Flow control support	Y
