Level One LevelOne 1x Industrial POR-1322 IP67 PoE BT extender/repeate

LEVEL ONE

POR-1322

Jauns

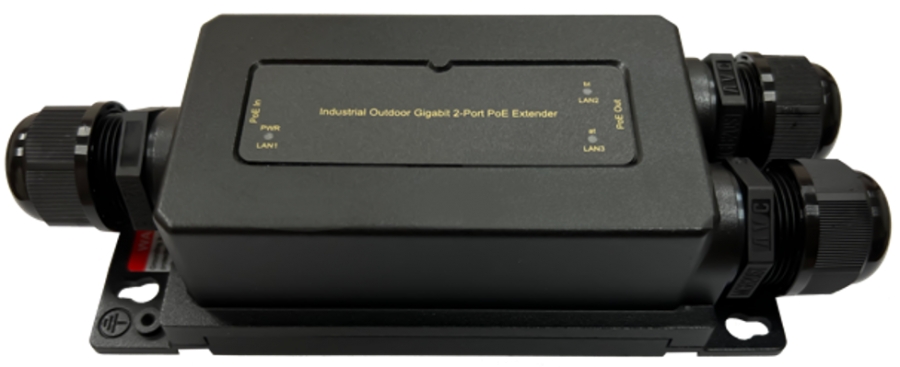

The LevelOne POR-1322 is the perfect accessory to increase your Power over Ethernet network performance. Normal ethernet cable runs only reach 100 meters, but with POR-1322 installers can extend the PoE network performance up to 500 meters with 4 nodes . Simple yet durable, no software required. As a PoE Repeater, POR-1322 receives all power from the Power Sending Equipment (PSE), for example, a PoE switch. This means that POR-1322 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. The POR-1322 is the perfect solution for taking Ethernet to areas such as roof tops, factory floors, airports manufacturing plants, and large warehouses.

TypeNetwork repeater
Maximum transfer distance100 m
International Protection (IP) codeIP67
Plug and PlayY
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Power over Ethernet (PoE) ports quantity3
Product colourBlack
Mounting typeWall
LED indicatorsActivity, Power
Country of originChina
Power consumption (typical)5 W
Output voltage36 - 57 V
Power over Ethernet (PoE)Y
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)0 - 90 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Width125.8 mm
Depth73.5 mm
Height44.3 mm
Weight380 g
Receiver width21.1 cm
Receiver depth16.2 cm
Receiver height6.4 cm
Receiver weight630 g
Master (outer) cases per pallet (air)15 pc(s)
Pallet gross length80 cm
Pallet gross width120 cm
Pallet height (air)160 cm
Master (outer) case width370 mm
Master (outer) case length360 mm
Master (outer) case height260 mm
Master (outer) case gross weight7 kg
Products per master (outer) case12 pc(s)
