Level One LevelOne FE PoE-Injektor Adapter POI-2012 15.4W PoE
Previous Next

Level One LevelOne FE PoE-Injektor Adapter POI-2012 15.4W PoE

LEVEL ONE

POI-2012

Jauns

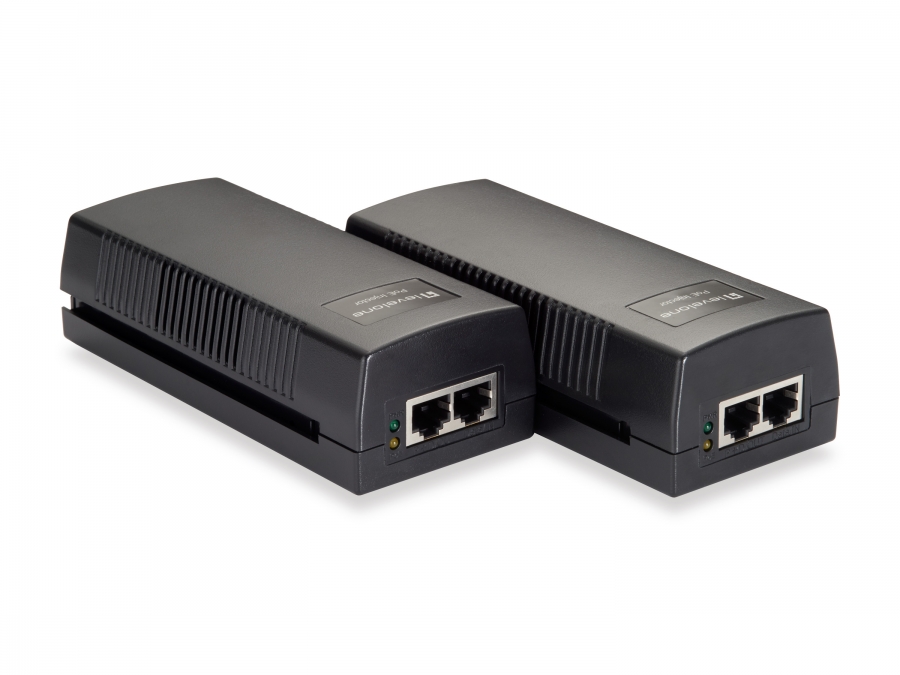

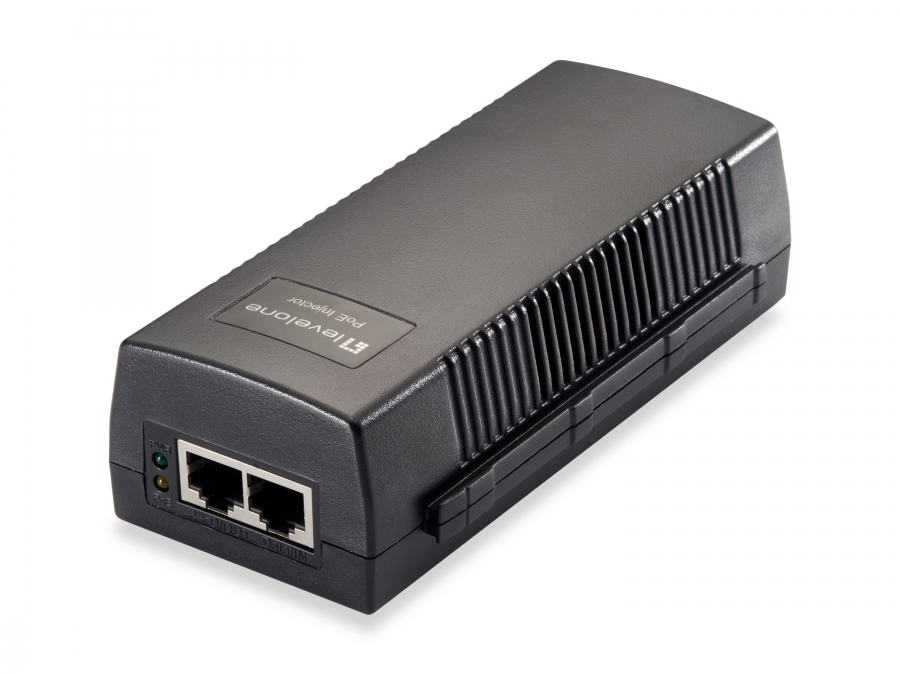

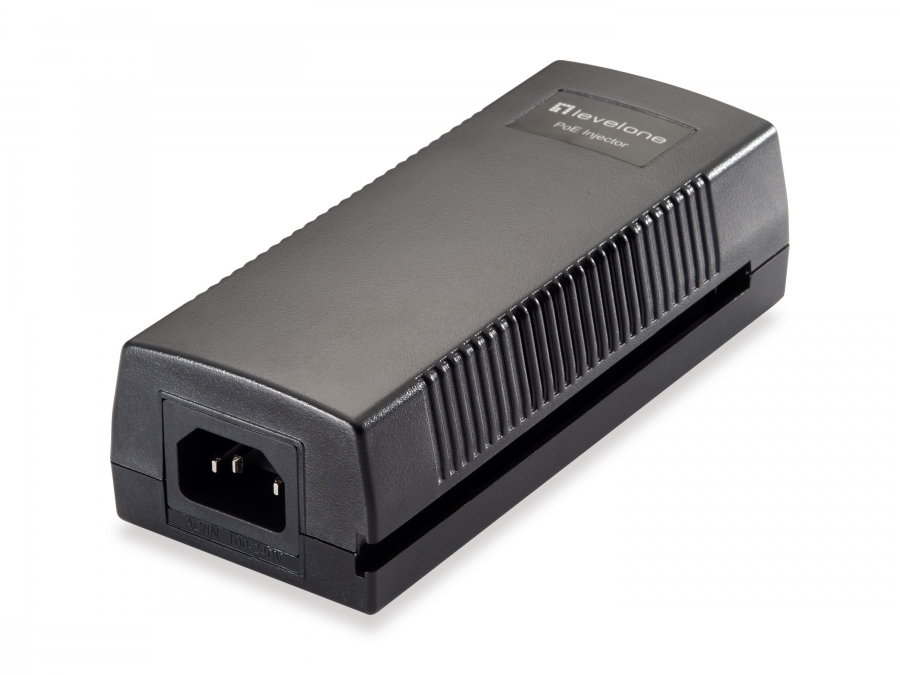

The LevelOne POI-2012 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby.

Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Power over Ethernet (PoE)Y
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
Product colourBlack
Wall mountableY
Plug and PlayY
Surge protectionY
Maximum operating distance100 m

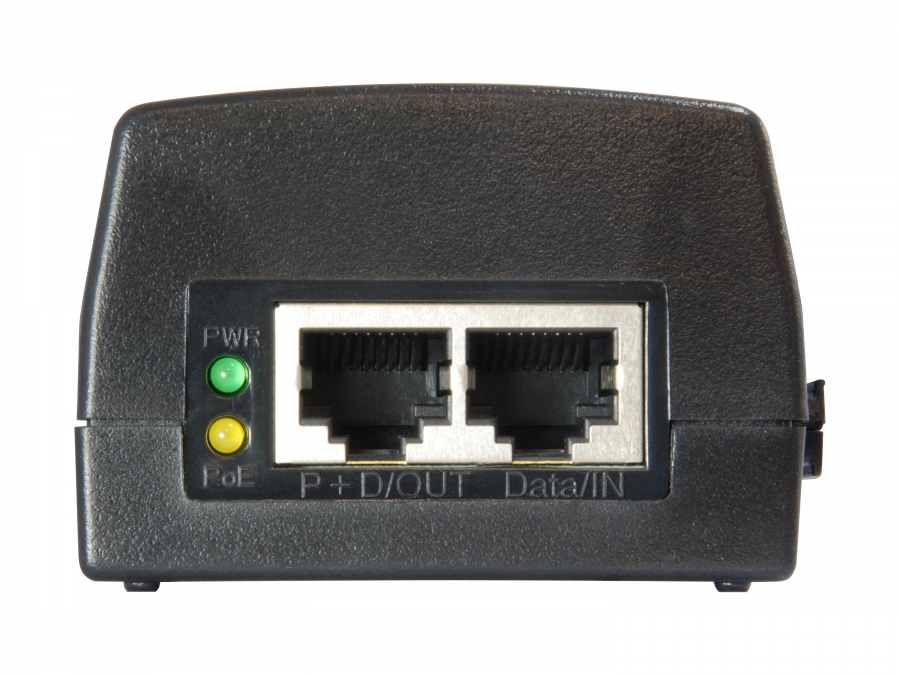

LED indicatorsPoE, Power
Pin assignment & polarity4/5 (+), 7/8 (-)
CertificationFCC Part 15, CE
Ethernet LAN (RJ-45) ports2
Power over Ethernet (PoE) voltage52 V

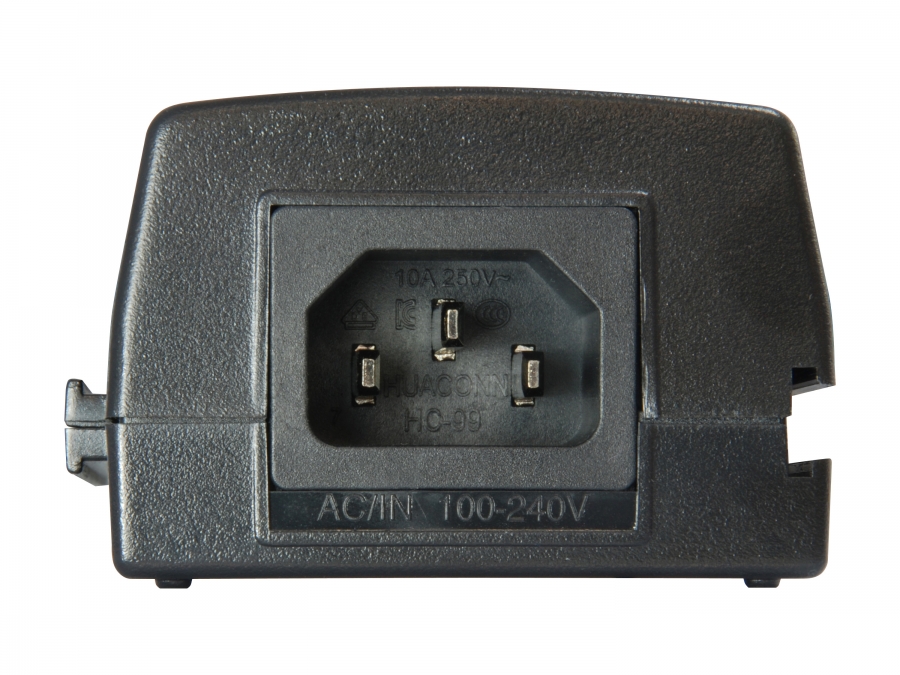

AC adapter input voltage100 - 240 V
AC adapter frequency50/60 Hz
Input current0.8 A
Output current0.3 A
Power consumption (max)15.4 W
Power over Ethernet (PoE) power per port15.4 W
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)0 - 70 °C
Storage relative humidity (H-H)5 - 95%
Width143 mm
Depth51 mm
Height38 mm
Weight350 g
Package width210 mm
Package depth125 mm
Package height55 mm
Package weight400 g
Package typeBox
Number of products included1 pc(s)
Quick installation guideY
Sustainability certificatesRoHS
Harmonized System (HS) code85044095
