Level One LevelOne 1x FE PoE-Injektor Adapter POI-4000 60.0W PoE

LEVEL ONE

POI-4000

Jauns

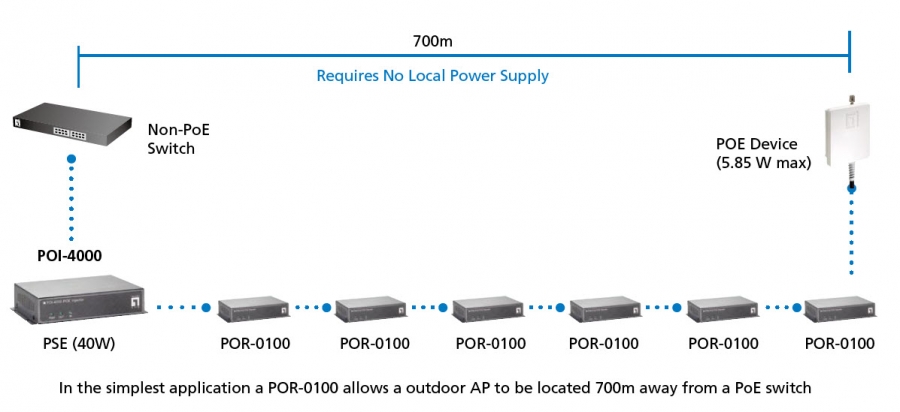

Background The IEEE 802.3af standard limits the maximum current on an Ethernet cable to 350Ma. This provides for a maximum end-point power consumption of 12.95 Watts, which is fine for some devices. But many professional networking devices require more power.Introducting the ultimate solution for high-power PoE LevelOne POI-4000(-Z) is a high power, PSE Power Injector for use in Power over Ethernet systems. With Ethernet Input (data only) port and Output (data power) port, POI-4000(-Z) delivers up to 60 Watts over Cat.5/6/7. This provides excellent support for PD devices such as PoE IP surveillance, outdoor access points or PoE VoIP telephones.Maximize your PoE network POI-4000(-Z) can work with PoE Repeaters to extend the PoE network several hundred meters. This unbeatable solution is available only from LevelOne! It brings long distances with no latency or loss of network speed.- 56 Watt High-Power PSE Power Injector - Sends Power over Ethernet to remote devices - Ethernet 100Mbps Wire Speed - Simple to install-plug & play - Power Protection: OCP, OVP

Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100BaseT(X)
Networking standardsIEEE 802.3x
Compliance industry standardsIEEE 802.3x
Product colourBlack
LED indicatorsLAN, Power
Pin assignment & polarity4/5 (+), 7/8 (-)
CertificationFCC, CE
Country of originTaiwan
Ethernet LAN (RJ-45) ports2
DC-in jackY
Power over Ethernet (PoE) voltage56 V
Input voltage24 V
Input current2.7 A
Output current1 A
Total Power over Ethernet (PoE) budget56 W
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 90%
Width90 mm
Depth120 mm
Height28 mm
Weight400 g
Package width148 mm
Package depth235 mm
Package height80 mm
Package weight830 g
Number of products included1 pc(s)
Harmonized System (HS) code85044095
