Delock Gigabit PoE+ Splitter 802.3at

Delock Gigabit PoE+ Splitter 802.3at

DELOCK

87657

Jauns

Salīdzināt

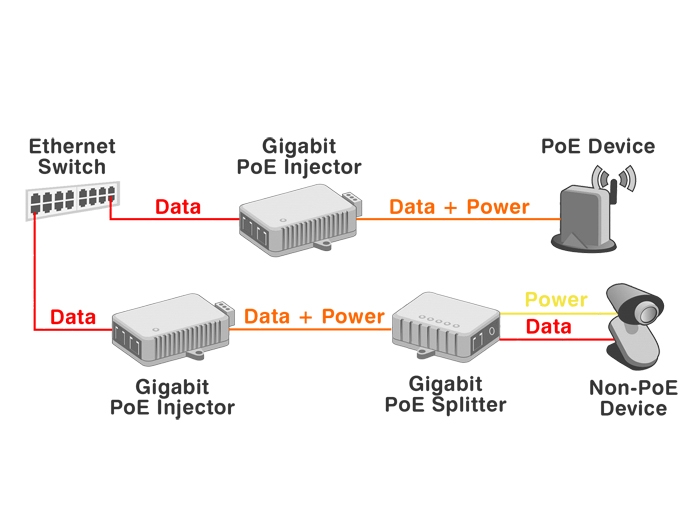

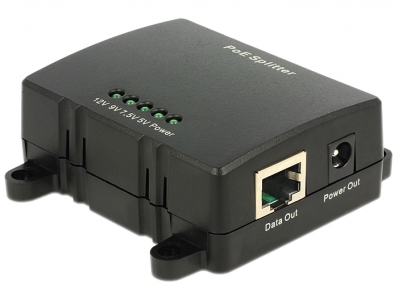

This Power over Ethernet Splitter by Delock can supply power to a non-PoE-enabled device, such as an IP camera or a WLAN access point. The splitter is connected to the network cable and powered by a PoE injector (PSE). The DC jack provides an adjustable voltage of 5 V / 7.5 V / 9 V or 12 V with a maximum of 2 A for the connected equipment. Simultaneously, a 1 Gb/s Ethernet connection is available. The compact size and integrated wall mounting enable space-saving installation.
Specification:
• Connector:
    1 x RJ45 female (Data + Power In)
    1 x RJ45 female (Data Out)
    1 x DC female 5.5 x 2.1 mm (Power Out)
• Output Power: DC 5 V / 7.5 V / 9 V / 12 V (selectable), 2.0 A max.
• Data transfer rate up to 1 Gb/s
• LED indicator (power, selected voltage)
• Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
• Wall mounting integrated in the housing
• Power consumption: max. 2 W
• Operating temperature: 0 °C ~ 45 °C
• Dimensions (LxWxH): ca. 78 x 72 x 27 mm
Package content:
• PoE Splitter

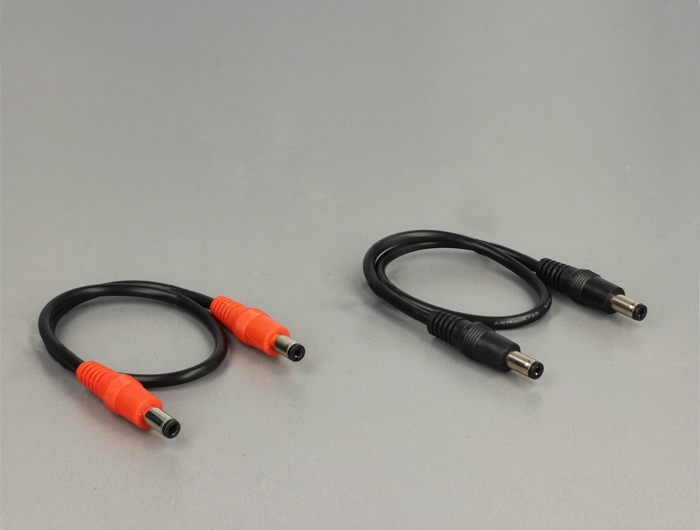

• DC cable 5.5 x 2.1 mm male > 5.5 x 2.1 mm male ca. 30 cm (black)
• DC cable 5.5 x 2.1 mm male > 5.5 x 2.5 mm male ca. 30 cm (red)
• User manual
Data sheet:
http://www.delock.de/produkt/87657/pdf.html?sprache=en
