Delock PCI Express x1 Card to 2 x external FireWire B + 1 x external FireWire A - Low Profile Form Factor

DELOCK

90738

Jauns

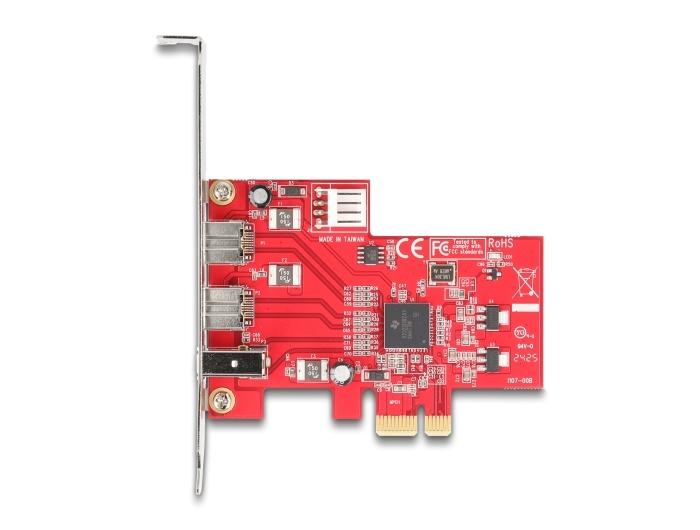

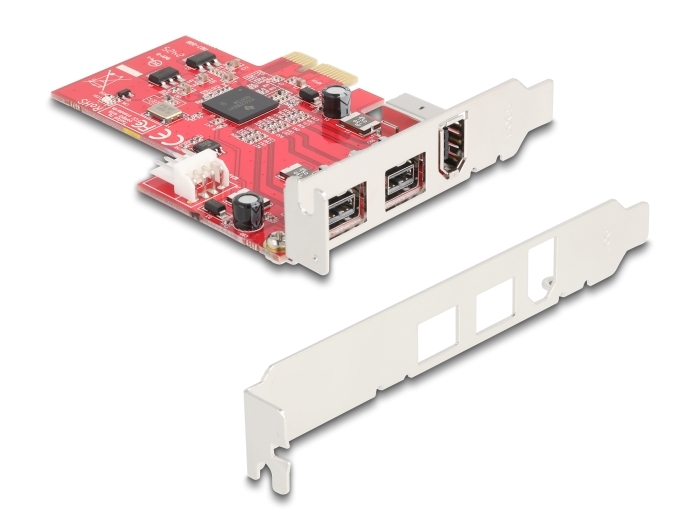

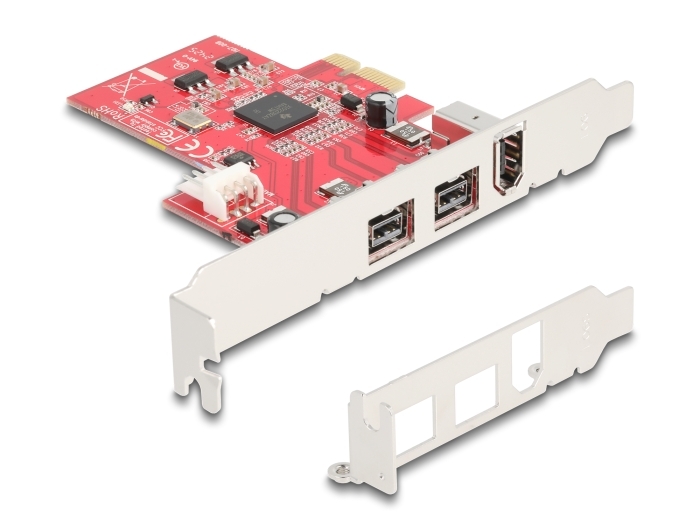

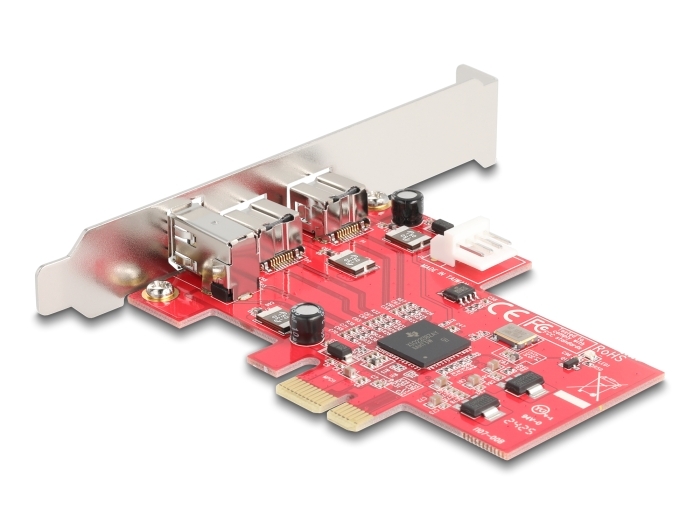

This PCI Express card by Delock expands the PC by two external FireWire 800 ports as well as one external FireWire 400 port. Different FireWire devices such as external enclosure, digital cameras, camcorders, adapters etc. can be connected to this card. The PCIe card has a built-in native PCI Express chipset, not a bridge chipset.

Internal power connector

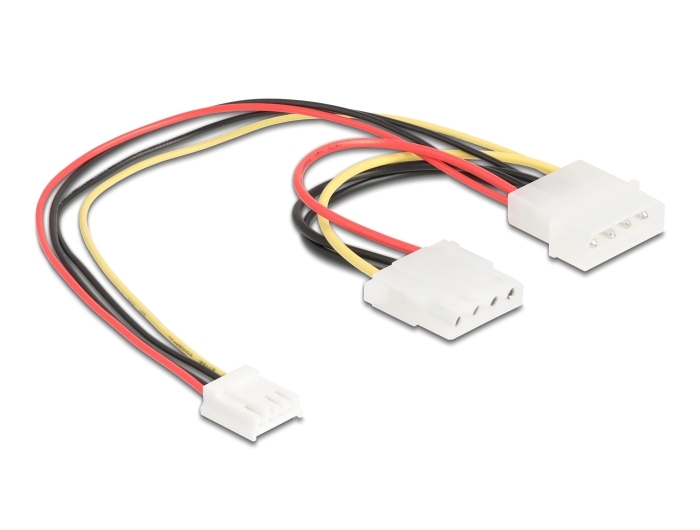

The 4 pin power connector on the card can be used when FireWire devices have a higher power requirement. For this purpose, a suitable adapter is included in the package content, which can be connected to different power supplies.
System requirements:
• Linux Kernel 5.19 or above
• Windows 10/10-64/11
• Windows Server 2019
• PC with one free PCI Express slot
Specification:
• Connectors:
  2 x FireWire 800 1394B 9 pin
  1 x FireWire 400 1394A 6 pin
  1 x PCI Express x1, V1.1
  1 x 4 pin power connector
• Chipset: Texas Instruments XIO2213B
• Supports OHCI specifications V1.0 and 1.1
• Hot Swap, Plug & Play
Package content:
• PCI Express card
• Standard slot bracket
• Power cable
• User manual
Data sheet:
http://www.delock.de/produkt/90738/pdf.html?sprache=en
