Delock PCI Express x1 Card to 1 x internal USB 5 Gbps Type-E Key A and 1 x 19 pin USB pin header male - Low Profile Form Factor

DELOCK

90344

Jauns

This PCI Express card by Delock expands the PC by one internal USB 5 Gbps Type-E key A female port and one 19 pin USB pin header male. Various cables can be connected to the card, to provide either one USB Type-C™ or one USB Type-A interface.

Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.
System requirements:
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• PC with one free PCI Express slot
Specification:
• Connectors:
  internal:
  1 x USB 5 Gbps type-E Key A female
  1 x 19 pin USB 5 Gbps pin header male
  1 x PCI Express x1, V3.0
• Chipset: VIA VL805
• Data transfer rate up to 5 Gbps
• Power supply via PCI Express interface
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
• Bootable
Package content:
• PCI Express card

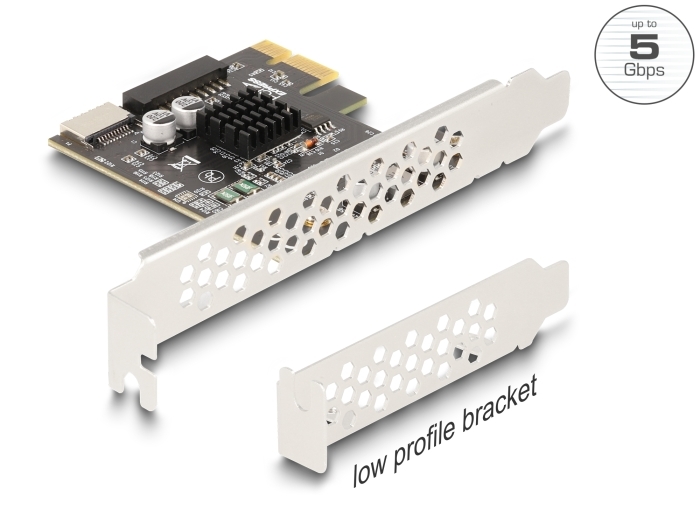

• Low profile bracket
• User manual
Data sheet:
http://www.delock.de/produkt/90344/pdf.html?sprache=en
