Delock PCI Express x4 Card to 2 x external USB Type-C™ + 1 x internal USB 10 Gbps Type-E Key A and 1 x 19 pin USB pin header mal

DELOCK

90345

Jauns

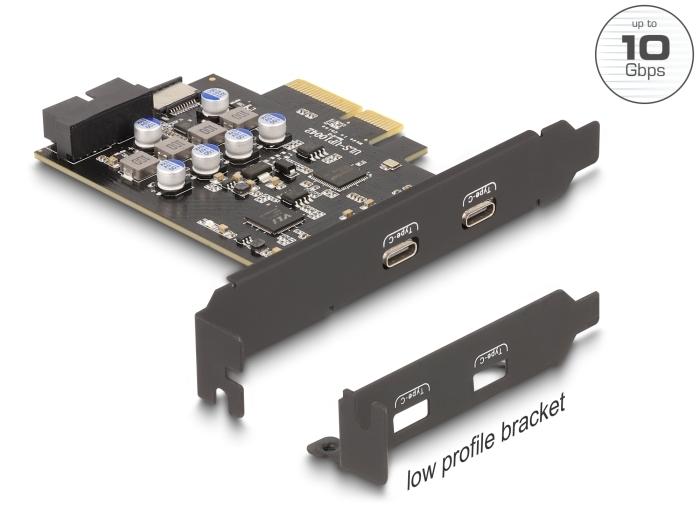

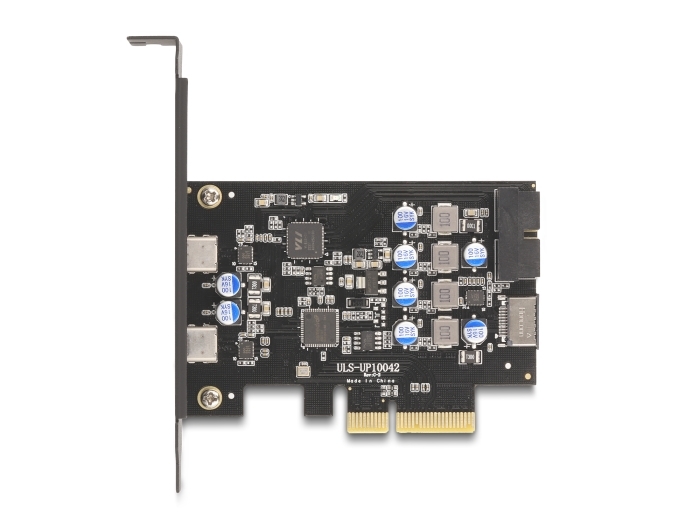

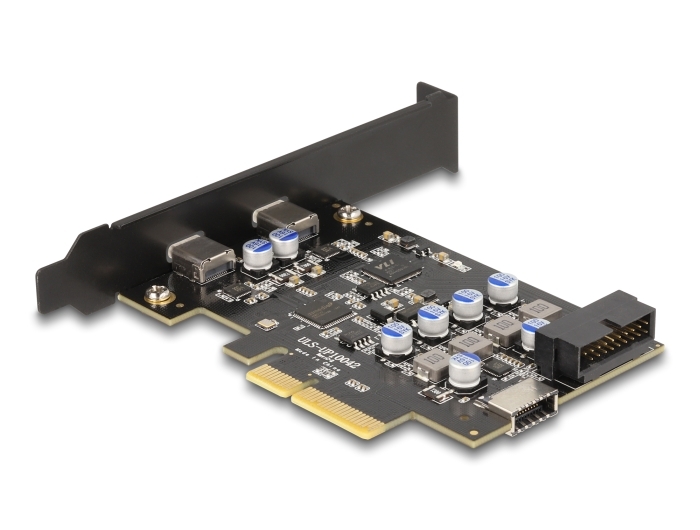

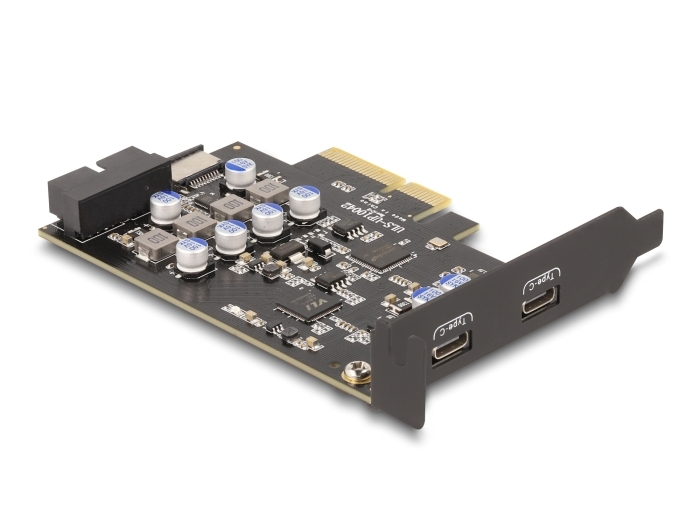

This PCI Express card by Delock expands the PC by two external USB-C™ ports as well as one internal 19 pin USB pin header male port and one USB Type-E key A female port.

Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.
System requirements:
• Linux Kernel 6.5 or above
• Windows 10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Specification:
• Connectors:
  external:
  2 x USB 10 Gbps USB Type-C™ female
  internal:
  1 x USB 10 Gbps type-E Key A female
  1 x 19 pin USB 10 Gbps pin header male
  1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142, VIA VL822
• Data transfer rate up to 10 Gbps
• Electrical power:
  USB Type-C™: max. 15 watt (5 V / 3 A)
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.0
• Bootable
Package content:
• PCI Express card
• Low profile bracket
• User manual
Data sheet:
http://www.delock.de/produkt/90345/pdf.html?sprache=en

PCI Express
