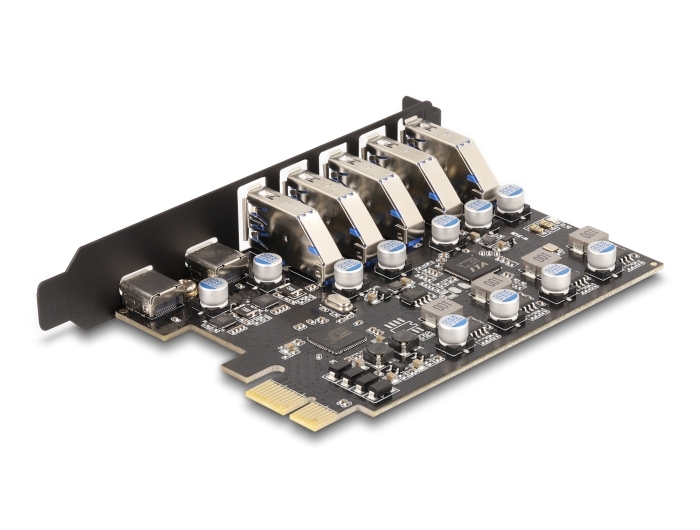

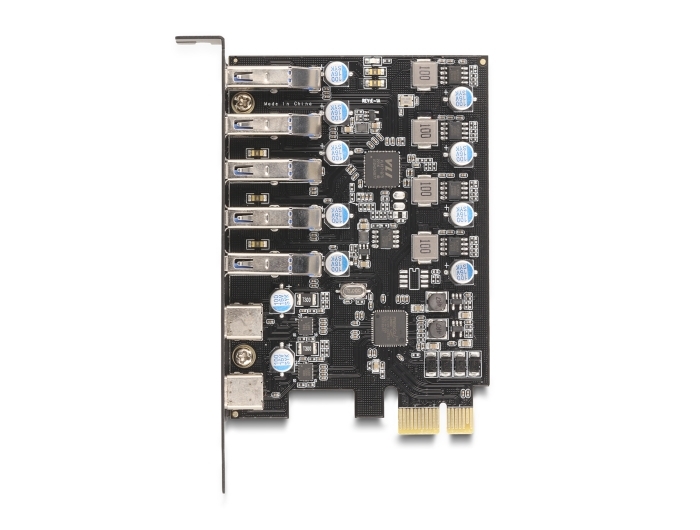

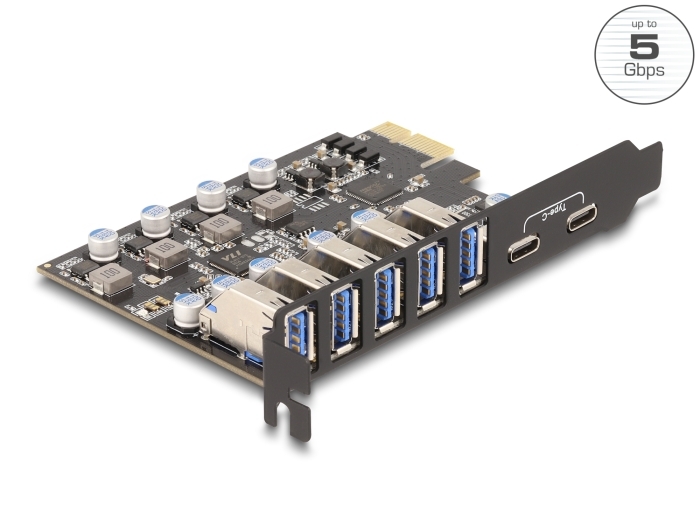

Delock USB 5 Gbps PCI Express x1 Card to 5 x external Type-A + 2 x external USB Type-C™ female

DELOCK

90346

Jauns

This PCI Express card by Delock expands the PC by five external Type-A and two external USB Type-C™ ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected. A maximum data transfer rate of up to 5 Gbps can be reached.

Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.
System requirements:
• Linux Kernel 6.5 or above
• Windows 10/10-64/11
• PC with one free PCI Express slot
Specification:
• Connectors:
  external:
  5 x USB 5 Gbps Type-A female
  2 x USB 5 Gbps USB Type-C™ female
  internal:
  1 x PCI Express x1, V2.0
• Chipset: VIA VL817, Fresco Logic FL1100
• Data transfer rate up to 5 Gbps
• Power supply via PCI Express interface
• Electrical power per port: max. 5 watt (5 V / 1 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports UASP
• Supports Multiple INs
• Bootable
Package content:
• PCI Express card USB 5 Gbps
• User manual
Data sheet:
http://www.delock.de/produkt/90346/pdf.html?sprache=en
