Delock PCI Express x8 Card to 2 x internal NVMe M.2 Key M with RAID - Low Profile Form Factor

Kods 90123

Condition: Jauns

Vairāk informācijas

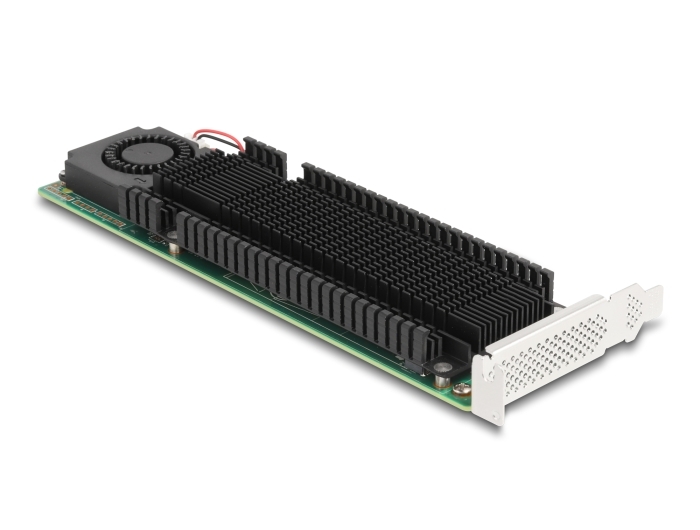

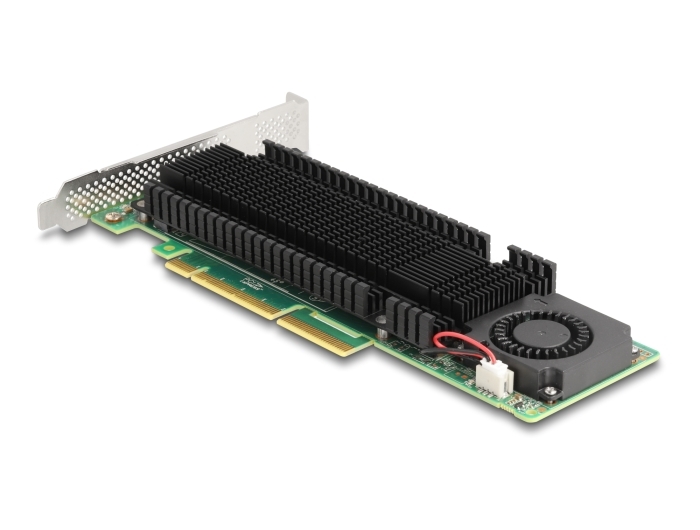

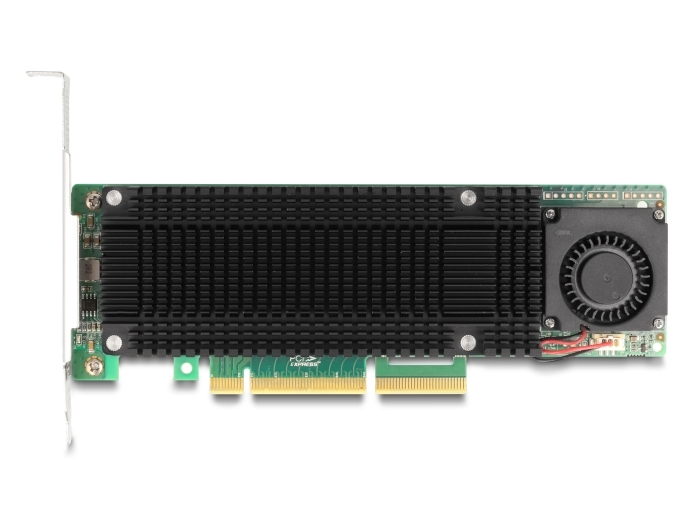

This PCI Express card by Delock expands the PC by two M.2 slots. Up to two M.2 SSDs in format 2280, 2260, 2242 and 2230 can be connected. With the help of the large heat sink and the fan onboard, sufficient cooling of the M.2 modules is guaranteed.

RAID
When using more than one M.2 port, there is the possibility to use different RAID modes.

System requirements:
• Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x8 / x16 / x32 slot

Specification:
• Connectors:

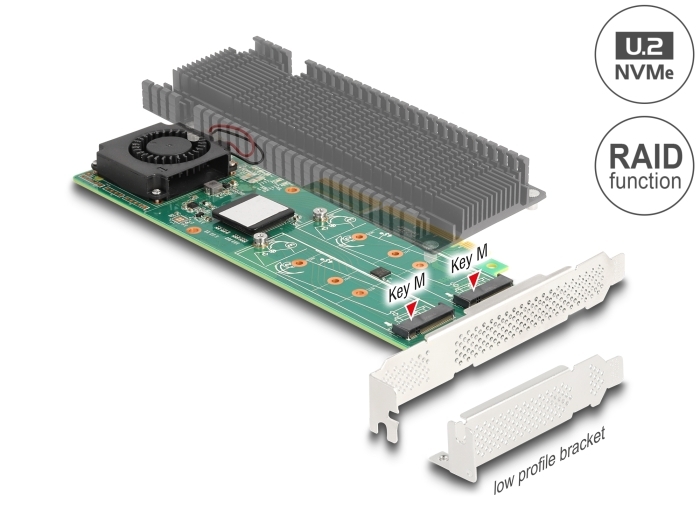

2 x M.2 key M slot
1 x PCI Express x8, V3.0
• Chipset: Marvell 88NR2241B0
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• Supports RAID 0, 1, JBOD
• 1 x 40 mm fan for active cooling of the M.2 modules

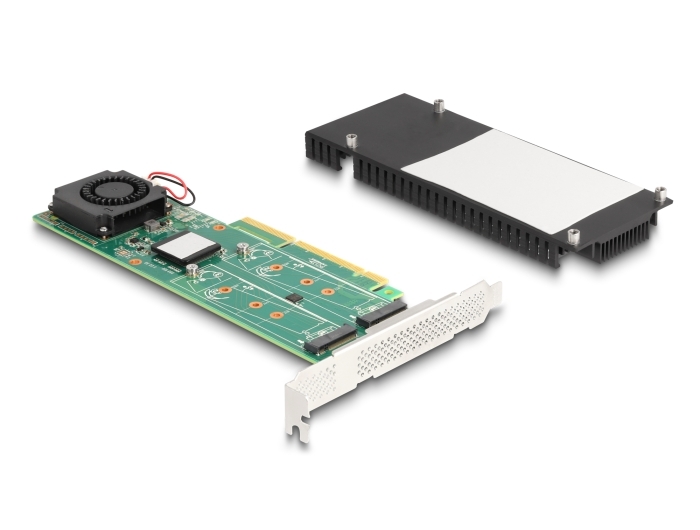

• 1 x heat sink
• 2 x LED indicator
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C
• Humidity: 15 ~ 90 %

Package content:
• PCI Express card with fan
• Heat sink
• Low profile bracket
• 2 x screw
• User manual
