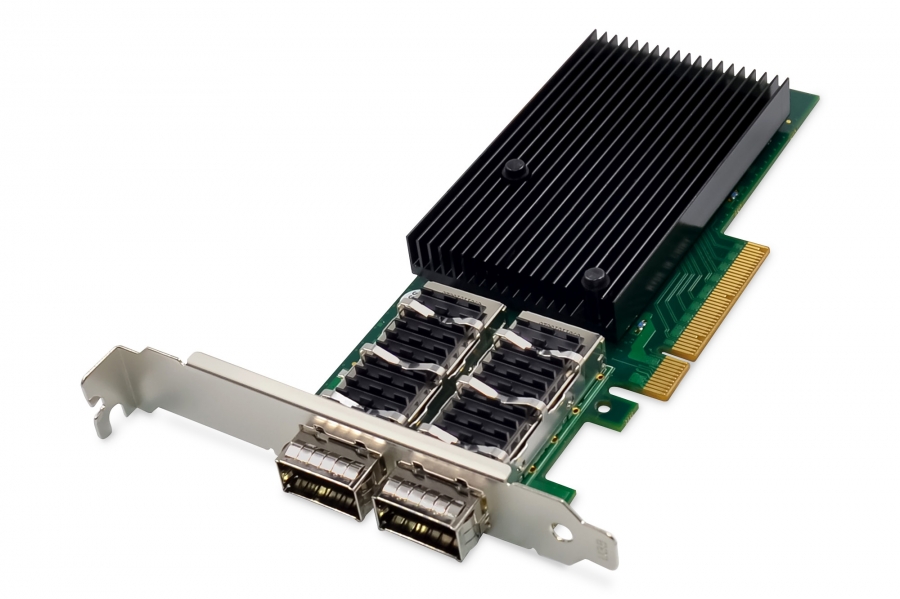

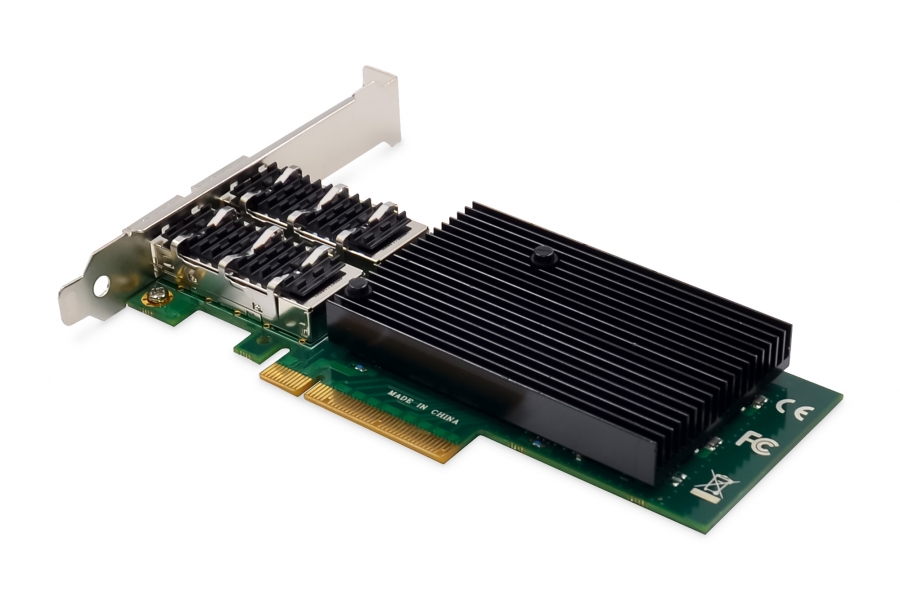

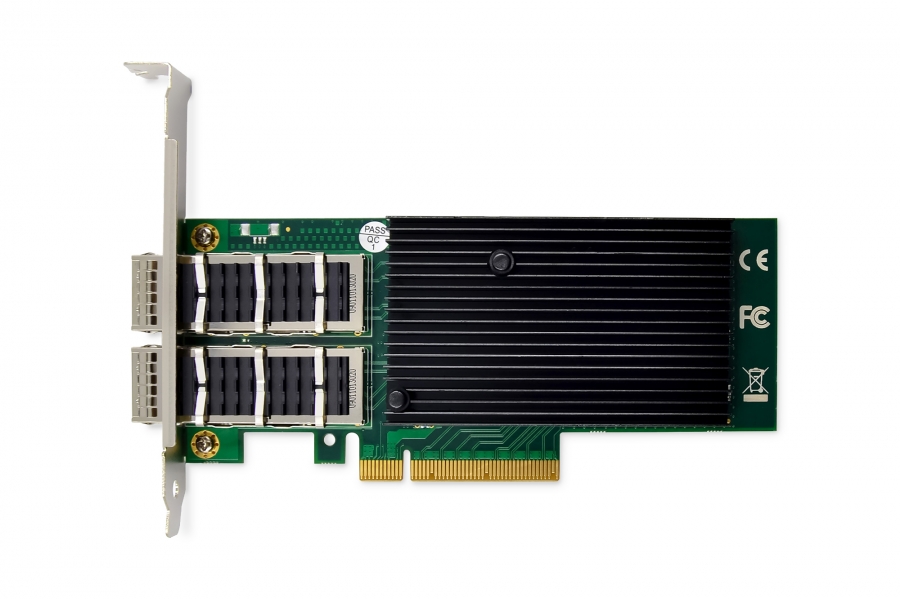

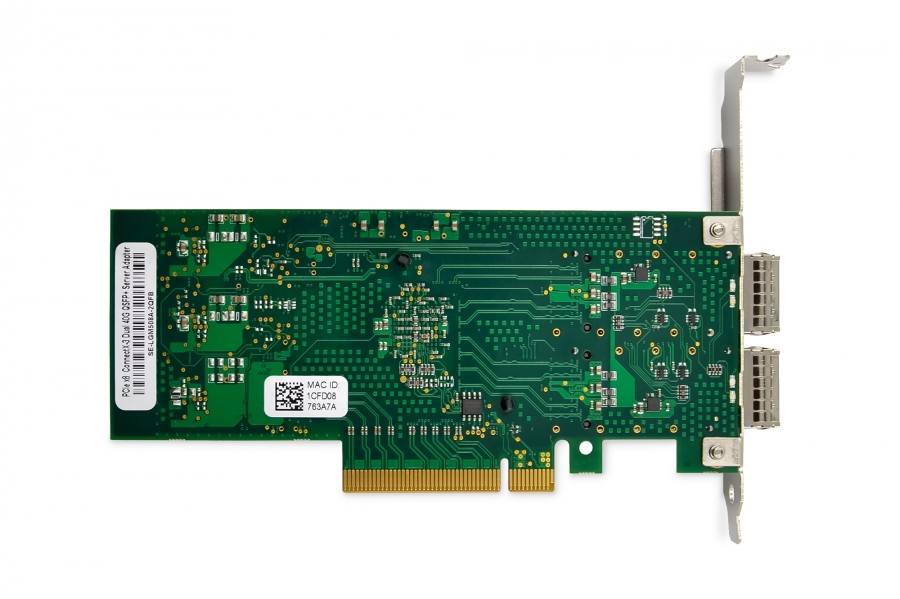

Digitus 2 port 40 Gigabit Ethernet network card, QSFP+, PCI Express, Mellanox chipset

Kods DN-10190

Condition: Jauns

Vairāk informācijas

Dual-Port 40G QSFP Adapter

The DN-10190 Dual-Port 40G QSFP adapter with PCIe 3.0 and Mellanox Connectx-3 technology features two 40G QSFP+ Ethernet ports and two QSFP ports supporting FDR-14 InfiniBand or 40Gb Ethernet. It is compatible with various operating systems and offers numerous features such as RDMA, TCP/UDP/IP Off-Load, SR-IOV support, and traffic steering.

Two 40 Gigabit QSFP+ Ethernet ports
PCI-Express host interface specification v3.0 x8 and Complete with PCIe2.0 and 1.1
Compliant with QSFP+ MSA Spec Rev 1.0
Support for InfiniBand FDR speeds of up to 56Gbps (auto-negotiation FDR-10, DDR and SDR)
Low-profile form factor adapter with 2u bracket

The DN-10190 Dual-Port 40G QSFP adapter with PCI Express 3.0 and x8 Mellanox Connectx-3 technic delivers high-bandwidth and industry-leading Ethernet connectivity, and is compliant with PCIe2.0 and 1.1. It features two 40 Gigabit QSFP+ Ethernet ports compliant with QSFP+ MSA Spec Rev 1.0, and two QSFP ports supporting FDR-14 InfiniBand or 40Gb Ethernet, with support for InfiniBand FDR speeds of up to 56Gbps (auto-negotiation FDR-10, DDR and SDR). The low-profile form factor adapter with 2u bracket supports virtual protocol interconnect (VPI), InfiniBand Architecture specification v1.2.1, IEEE Std. 802.3, copper cables and optical cables with the use of QSFP connectors, and SFP+ cables available through QSA (Quad to Serial). It enables low latency RDMA over 40Gb Ethernet, with legacy and UEFI PXE network boot support, and supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver. The adapter supports multiple operating systems, such as FreeBSD, Linux 5.x and above, VMware, Windows server2008/2012/2016/2019, win7/win8/win8.1/win10 32 or 64bit. It also supports CORE-Direct?,R application off-load, GPUDirect application off-load, RDMA over converged Ethernet (RoCE), end-to-end QoS and congestion control, TCP/UDP/IP stateless off-load, Ethernet encapsulation (EoIB), SR-IOV support (16 virtual functions supported by KVM and Hyper-V(OS dependant) up to a maximum 127 virtual functions supported by the adapter), and traffic steering across multiple cores, making it a versatile adapter suitable for a wide range of applications.

PCI-Express host interface specification v3.0 x8 and Complete with PCIe2.0 and 1.1
Two 40 Gigabit QSFP+ Ethernet ports
Compliant with QSFP+ MSA Spec Rev 1.0
Two QSFP ports supporting FDR-14 InfiniBand or 40Gb Ethernet
Support for InfiniBand FDR speeds of up to 56Gbps (auto-negotiation FDR-10, DDR and SDR)
Low-profile form factor adapter with 2u bracket
Virtual protocol interconnect (VPI)
InfiniBand Architecture specification v1.2.1 compliant
IEEE Std. 802.3 compliant
Compliant with copper cables and optical cables with the use of QSFP connectors.
Support for SFP+ cables available through QSA (Quad to Serial)
CORE-Direct?,R application off-load
GPUDirect application off-load
RDMA over converged Ethernet (RoCE)
End-to-End QoS and congestion control
TCP/UDP/IP stateless off-load
Ethernet encapsulation (EoIB)
SR-IOV support;16 virtual functions supported by KVM and Hyper-V(OS dependant ) up to a maximum 127 virtual functions supports by the adapter
Enables low latency RDMA over 40GbEthernet (supported with both non-virtualized and SR-IOV enable virtualized servers)latency as low as 1us
Traffic steering across multiple cores
Microsoft VMQ/VMware Net Queue support
Industry-leading throughput and latency performance
Legacy and UEFI PXE network boot support
Supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver
Supports Operation Systems: FreeBSD, Linux5.x and above, VMware, Windows server2008/2012/2016/2019, win7/win8/win8.1/win10 32 or 64bit
Supports operating systems: FreeBSD, Linux5.x and higher, VMware, Windows server2008/2012/2016/2019, win7/win8/win8.1/win10 32 or 64 bit

Package content:
1 x Dual-Port 40G QSFP adapter
1 x Users Manual
1 x CD Driver
1 x Low profile bracket

Platums(cm)	15.5
Grums(cm)	3
Augstums(cm)	22
Svars(kg)	0.2845
Tilpums(cm3)	1023
Izcelsmes valsts	CN
