New NVMe standard (based on PCI Express 4.0 with 4 lanes) makes it possible to increase data speed even further compared to a normal SATA SSD. The result: more bandwidth and reduced latency compared to the SATA interface.
Optimal solutions for workstations.- PCIe 4.0 x4 NVMe and PCIe-AHCI M.2 SSD work in main board PCIe x4 bus slot

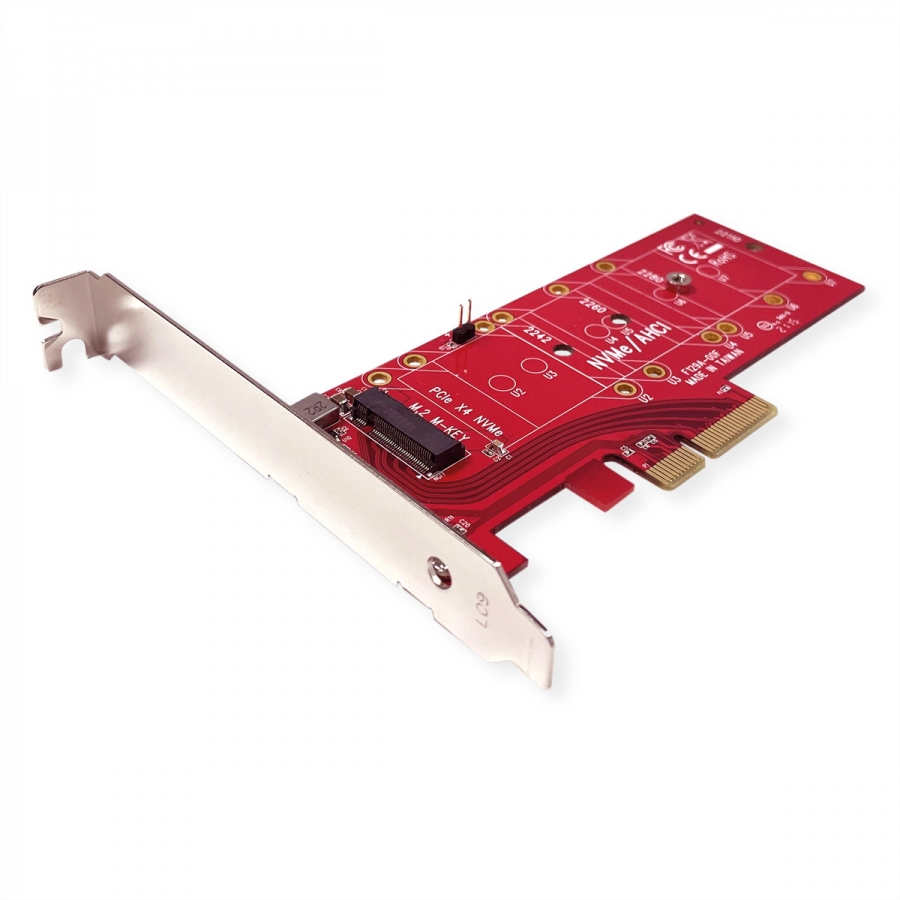

- PCI Express 4.0 x4 Lane Host adapter
- Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm SSD
- M.2 NGFF type 22110-D5-M connector on board
- Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260 and 2242 SSD
- Supports PCIe 3.0, PCIe 2.0 motherboard
- Supports dual-sided SSD module 1.5mm component height on the top and bottom side
- Compliant with PCI Express 4.0
- Pin header on board for drive LED connection
- Low Profile PCIe Form Factor
- Low Profile PCIe bracket on board and Regular size bracket included
- Transparent to the operating system and no board driver required
- Operating system: Windows 7/8/10 Vista, Server 2012 (64bit / 32bit), and Mac OS 10.x
- Supports M.2 PCIe SSD High Power 3.3V5A
|
