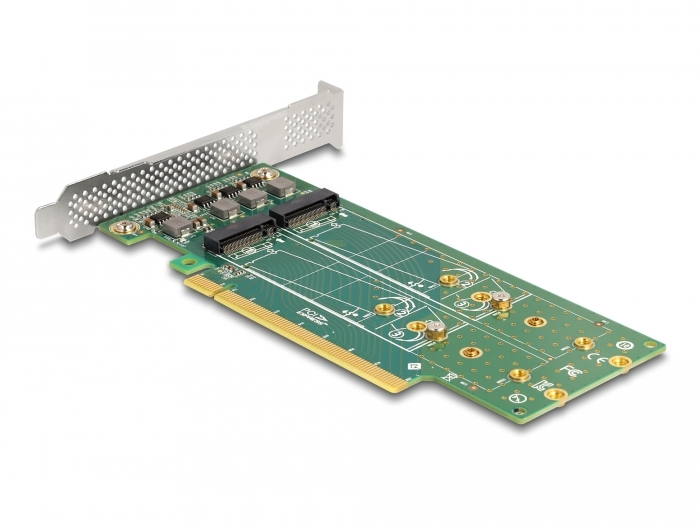

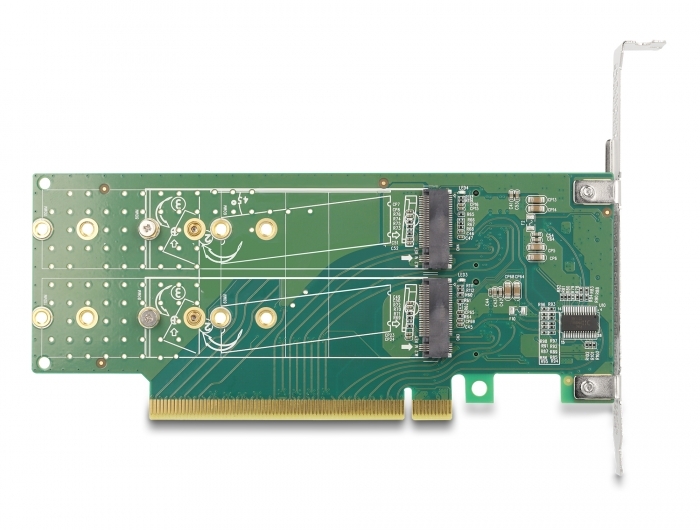

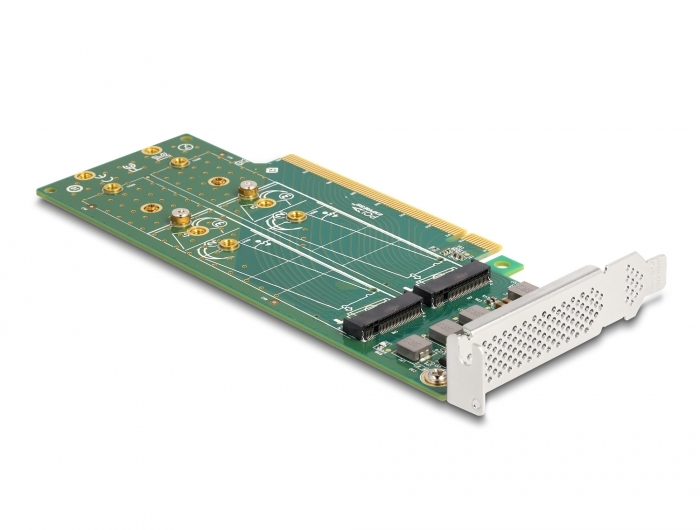

Delock PCI Express 4.0 x16 Card to 4 x internal NVMe M.2 Key M 110 mm - Bifurcation - Low Profile Form Factor

Kods 90090

Condition: Jauns

Vairāk informācijas

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 22110, 2280 and 2260 can be connected.

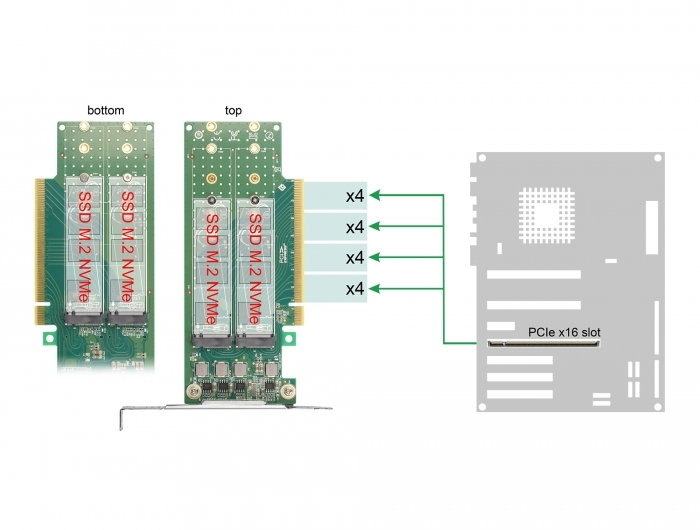

PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard to split the PCIe signal in order to use multiple ports.

Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.

System requirements:
• Linux Kernel 5.11 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support

Specification:
• Connectors:
  internal:
  4 x 67 pin M.2 key M slot
  1 x PCI Express x16, V4.0
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280 and 2260 with key M or key B+M based
on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C

Package content:
• PCI Express card

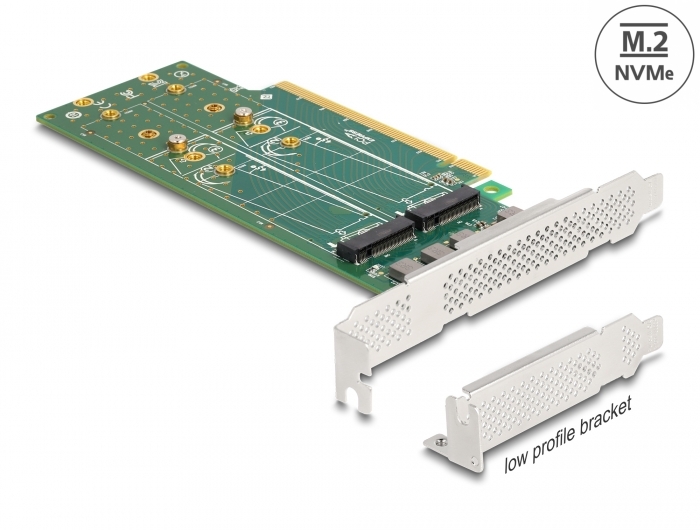

• Low profile bracket
• User manual
