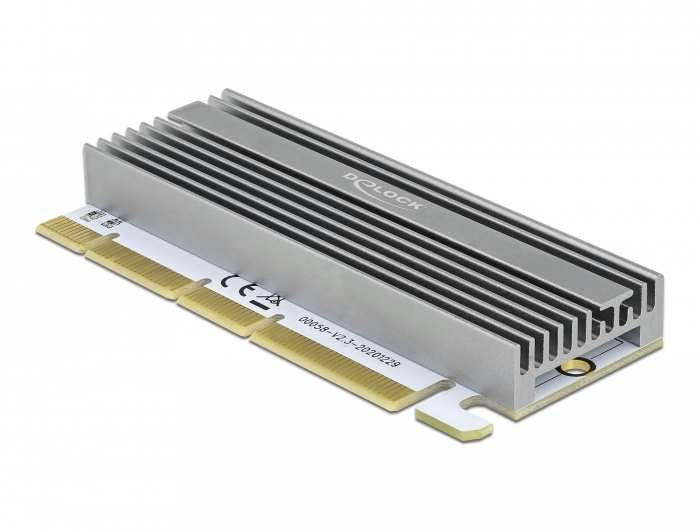

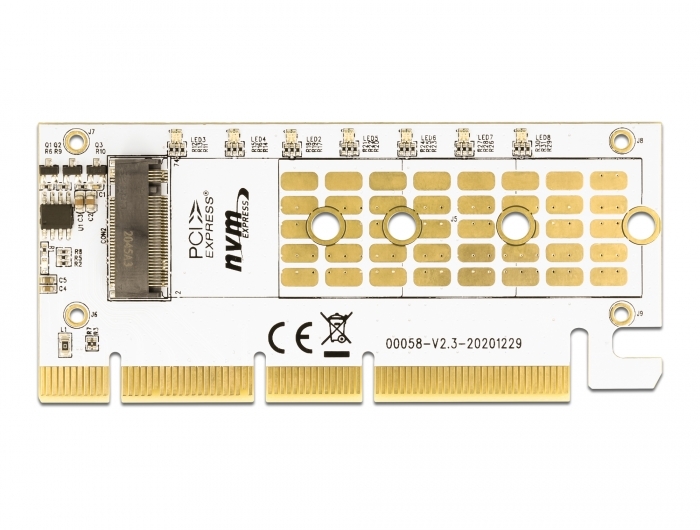

Delock PCI Express x16 (x1 / x4 / x8) Card to 1 x NVMe M.2 Key M with LED illumination

Kods 90566

Condition: Jauns

Vairāk informācijas

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. The card can be operated through the notches on an x1, x4, x8 or x16 slot. If the card will be installed in the PC, the slot bracket does not have to be removed.

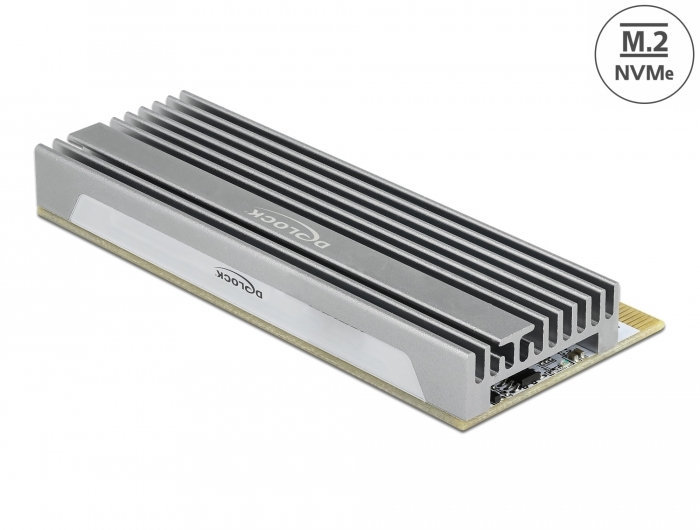

Heat sink and LED illumination

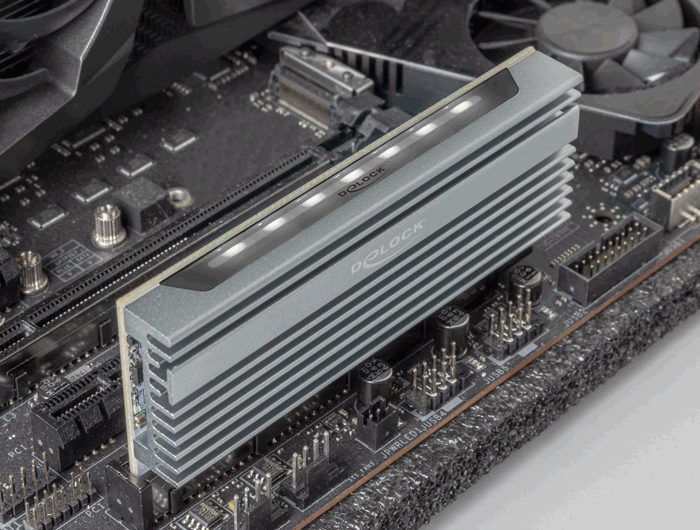

With the help of the large heat sink sufficient cooling of the M.2 modules is guaranteed. The PCIe card has 7 LEDs to illuminate the computer’s interior. The RGB LEDs automatically change their colour in a colour gradient and use the complete colour spectrum.

System requirements:
• Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
  1 x 67 pin M.2 key M slot
  1 x PCI Express x16 (4-Lane), V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
  based on PCIe
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Supports TRIM
• 1 x LED indicator for power and activity
• 7 x RGB LED for automatically colour gradient
• Dimensions (LxWxH) without heat sink: ca. 98 x 44 x 5 mm

Package content:
• PCI Express card

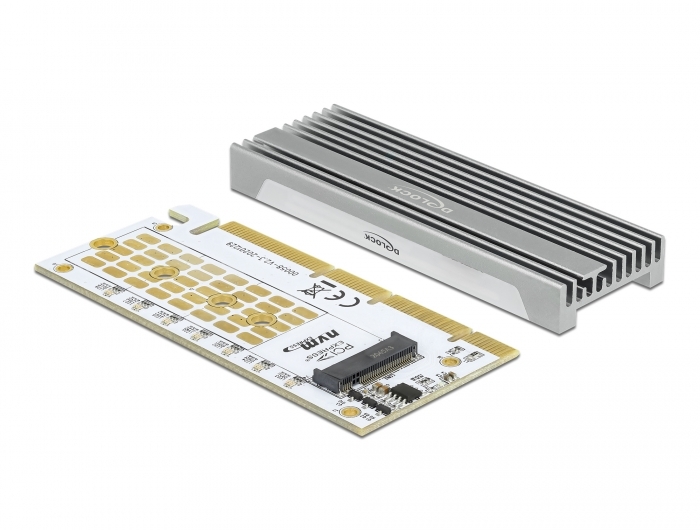

• M.2 mounting material
• Heat sink
• Thermal conductive pad
• Screwdriver
• User manual
