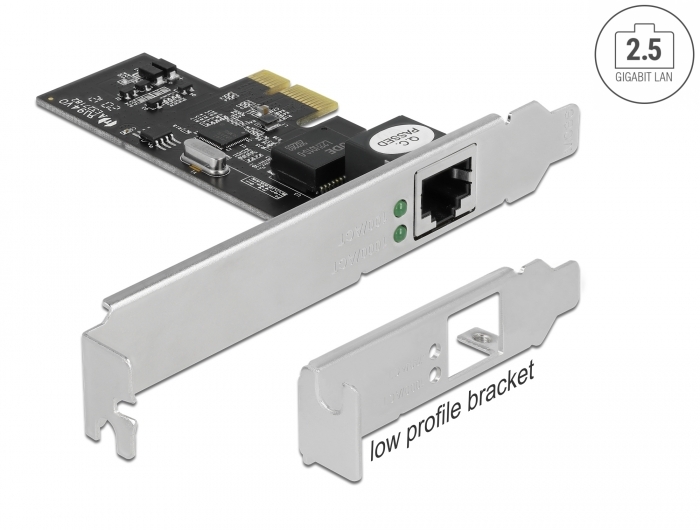

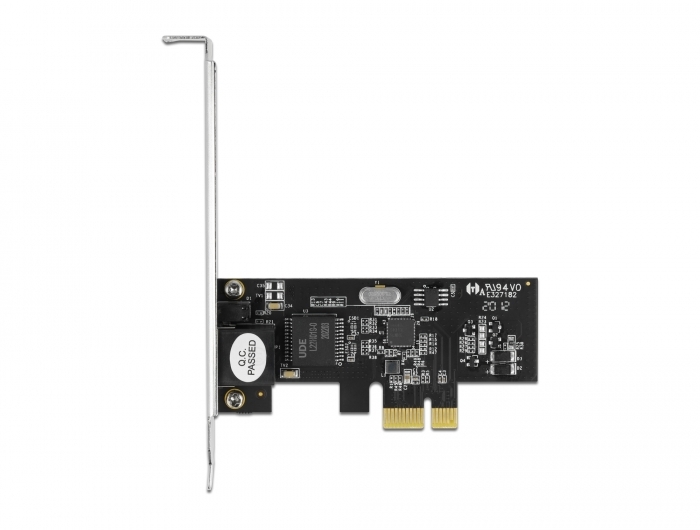

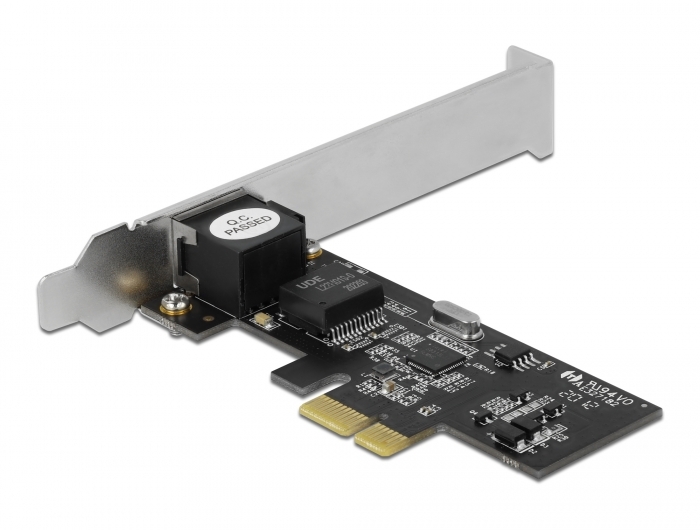

Delock PCI Express x1 Card to 1 x RJ45 2.5 Gigabit LAN i225

Kods 89598

Condition: Jauns

Vairāk informācijas

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

System requirements:
• Linux Kernel 5.8 or above
• Windows 10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
  external: 1 x 2.5 Gigabit LAN RJ45 jack
  internal: 1 x PCI Express x1, V2.1
• Chipset: Intel i225V
• Data transfer rate:
  Ethernet up to 10 Mbps
  Fast Ethernet up to 100 Mbps
  Gigabit Ethernet up to 1000 Mbps
  NBASE-T with up to 2.5 Gbps
  PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports Wake On LAN (WOL)
• Supports 9k Jumbo Frames
• Supports PXE
• LED indicator for link and activity

Package content:
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
