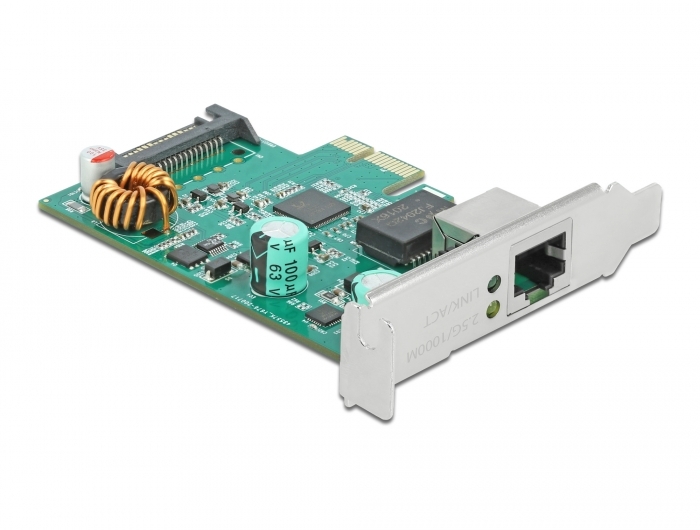

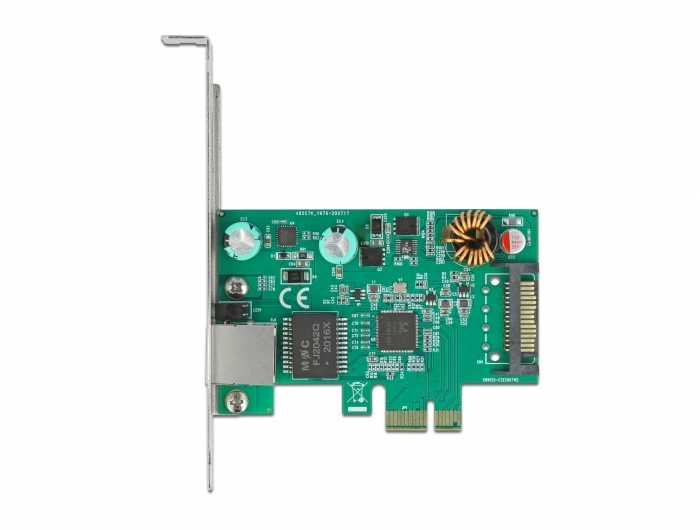

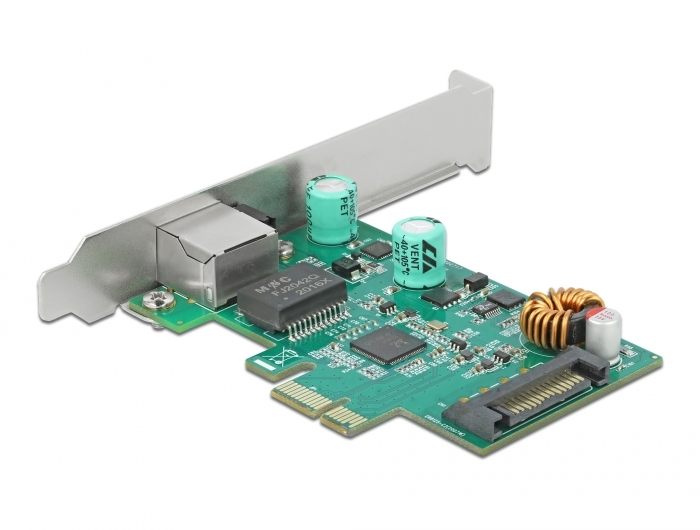

Delock PCI Express x1 Karte 1 x RJ45 2,5 Gigabit LAN PoE+ RTL8125

Kods 89139

Condition: Jauns

Vairāk informācijas

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

PoE support
The RJ45 port supports Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.

System requirements:
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot

Specification:
• Connectors:
  external:
1 x 2.5 Gigabit LAN RJ45 jack
  internal:
1 x PCI Express x1, V2.1
1 x SATA 15 pin power connector
• Chipset: Realtek RTL8125
• Data transfer rate:
  Ethernet up to 10 Mbps (Half/Full Duplex)
  Fast Ethernet up to 100 Mbps (Half/Full Duplex)
  Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
  NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
  PCI Express x1 up to 4 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 16k Jumbo Frames
• Supports PXE
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Output power: max. 30 W total
• LED indicator for link and activity

Package content:
• PCI Express card

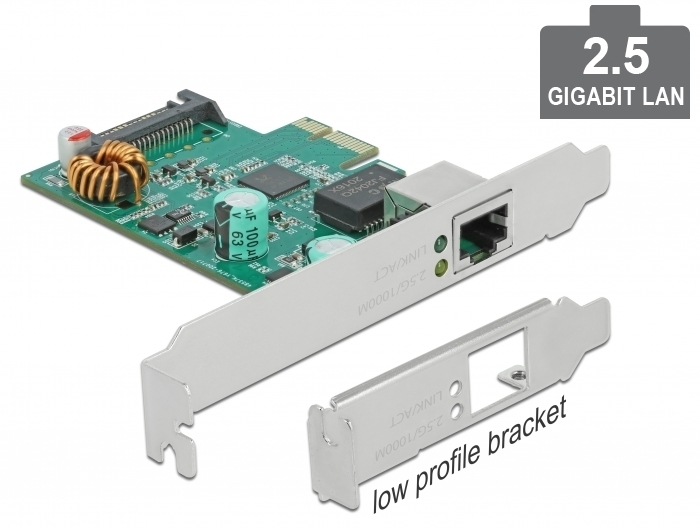

• Low profile bracket
• Driver CD
• User manual
