Delock PCI Express Card to 4 x Serial RS-232 with voltage supply

Kods 89938

Condition: Jauns

Vairāk informācijas

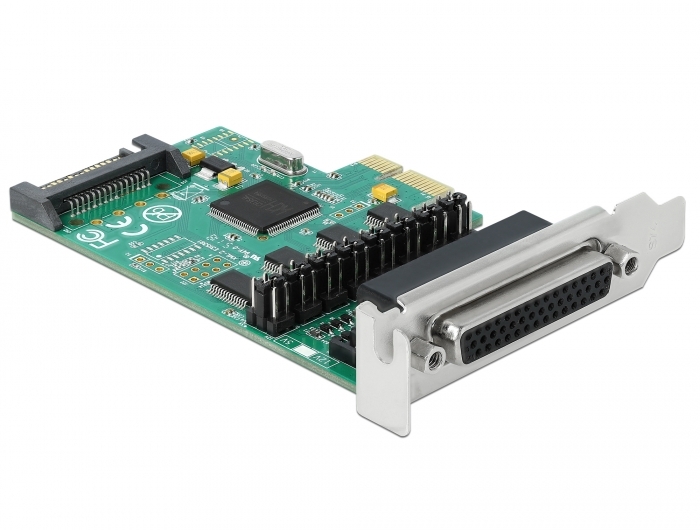

The PCI Express card by Delock expands a PC by four external serial ports. Connected devices can be optionally supplied with a voltage of 5 V or 12 V.

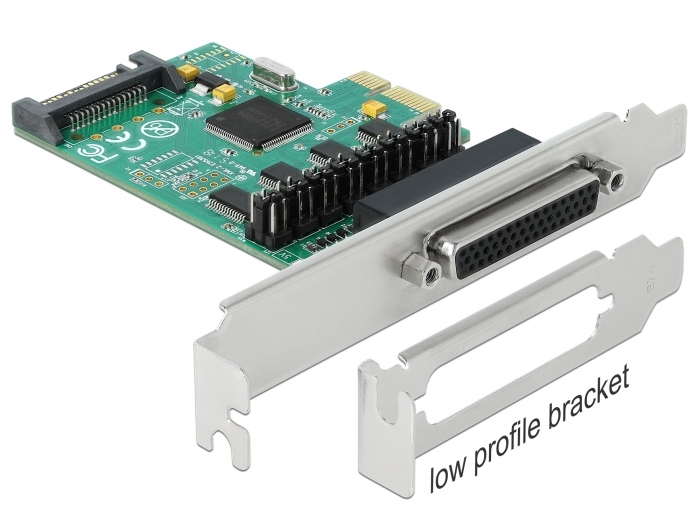

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
• Power supply with a free SATA power connector

Specification:
• Connectors:
  external:
  1 x DB44 female

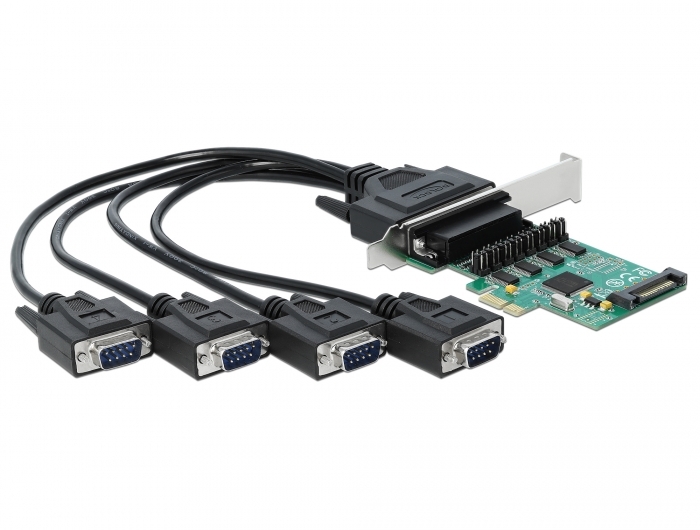

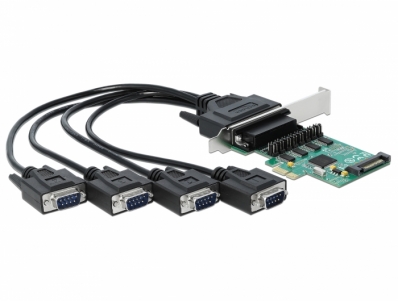

  connecting cable: DB44 male > 4 x serial RS-232 DB9 male
  internal:
  1 x PCI Express x1, V1.1
  1 x SATA 15 pin plug
• Chipset: WCH384L
• Data transfer rate up to 230.4 Kbps
• FIFO: 256 byte
• Databits: 4, 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Compatible with 16C950 UART

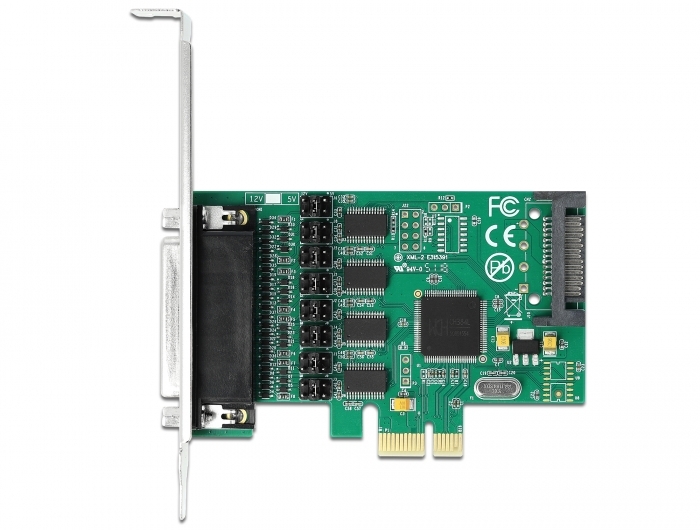

• 5 V or 12 V can be set individually for each port through the jumper (pin 1 or 9)

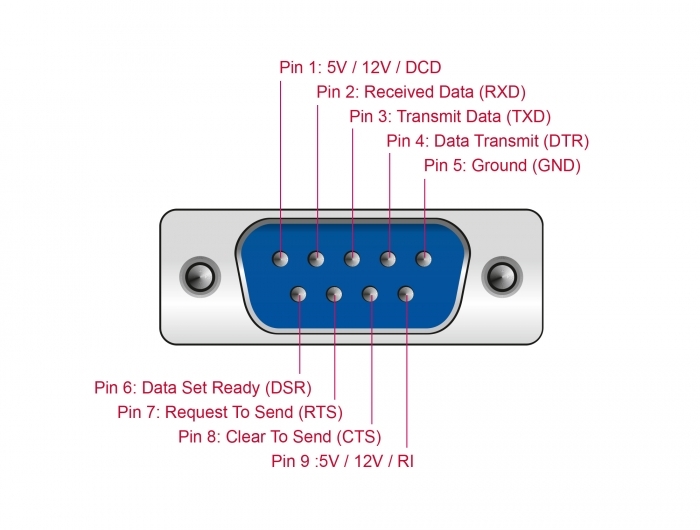

• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Cable length incl. connectors: ca. 35 cm

Package content:
• PCI Express card
• Low profile bracket
• 1 serial connecting cable
• Driver CD
• User manual
