Delock PCI Express Card - 1 x 10 Gigabit LAN NBASE-T RJ45

Kods 89587

Condition: Jauns

Vairāk informācijas

This PCI Express card by Delock offers a network port with a data transfer rate up to 10 Gbps over conventional Cat.6 or Cat.6A copper cables. With the NBASE-T technology additional speeds of 2.5 Gbps and 5 Gbps are available. This allows higher transmission rates than 1 Gbps, when a 10 Gbps connection is not possible with the existing cable.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 3.2
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:

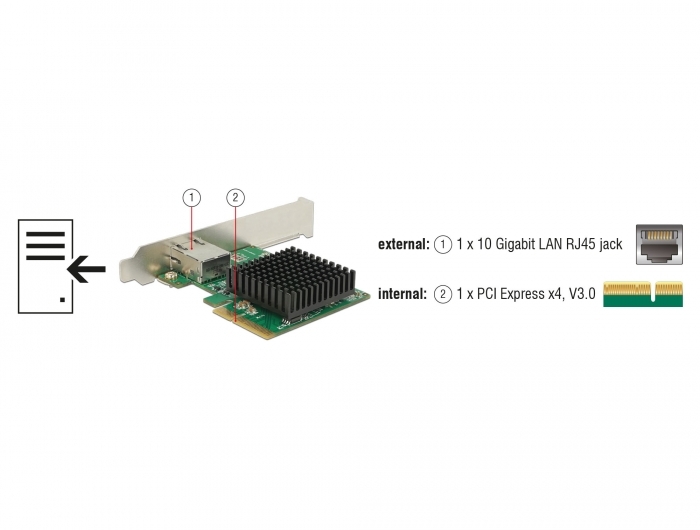

• Connectors:
  external: 1 x 10 Gigabit LAN RJ45 jack
  internal: 1 x PCI Express x4, V3.0
• Chipset: Aquantia AQC107
• Data transfer rate:
  Fast Ethernet up to 100 Mbps
  Gigabit Ethernet up to 1 Gbps
  NBASE-T with up to 2.5 Gbps and 5 Gbps
  10 Gigabit Ethernet up to 10 Gbps
  PCI Express x4 up to 32 Gbps
• Supports Wake On LAN (WOL)
• Supports 16k Jumbo Frames

Package content:
• PCI Express card

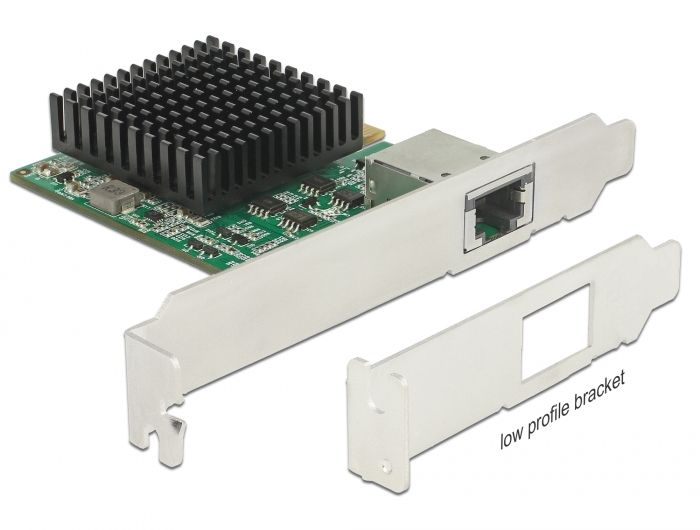

• Low profile bracket
• Driver CD
• User manual
