Delock Mini PCIe I/O PCIe full size 2 x Gigabit LAN Low Profile

Kods 95258

Condition: Jauns

Vairāk informācijas

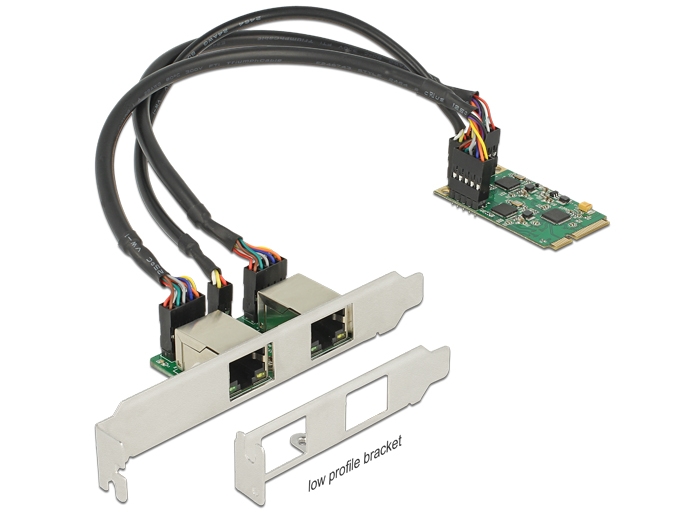

This Mini PCIe module by Delock expands a system by two Gigabit LAN interfaces, which can be lead out via the slot bracket.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.x, Mac OS 10.10
• Mainboard with a free Mini PCIe slot with a PCIe interface

Specification:
• Connectors:
1 x Mini PCIe male >
2 x Gigabit LAN RJ45 jack
• Chipset: ASM1182e, Realtek RTL8111E
• Form factor: Mini PCIe full size
• Interface: PCI Express revision 1.1
• Data transfer rate:
Ethernet up to 10 Mb/s
Fast Ethernet up to 100 Mb/s
Gigabit Ethernet up to 1000 Mb/s
PCI Express x1 up to 2.5 Gb/s
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 9k Jumbo Frames
• Cable length with connectors: ca. 25 cm

Package content:
• Mini PCIe module
• 3 connecting cable
• Slot bracket
• Low profile bracket
• Driver CD
• User manual
