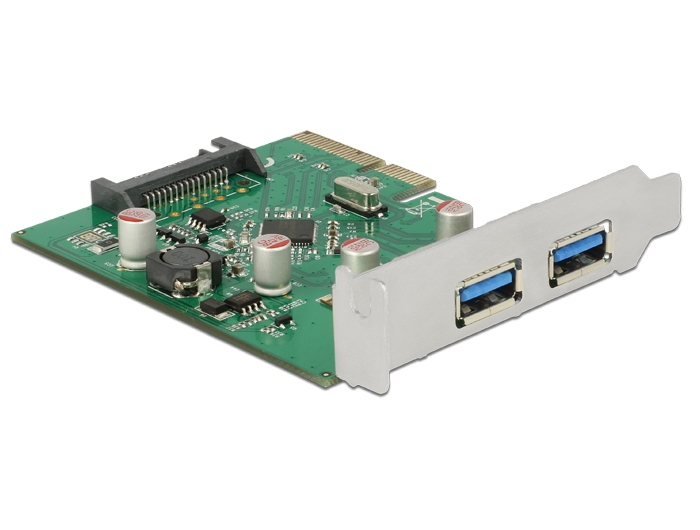

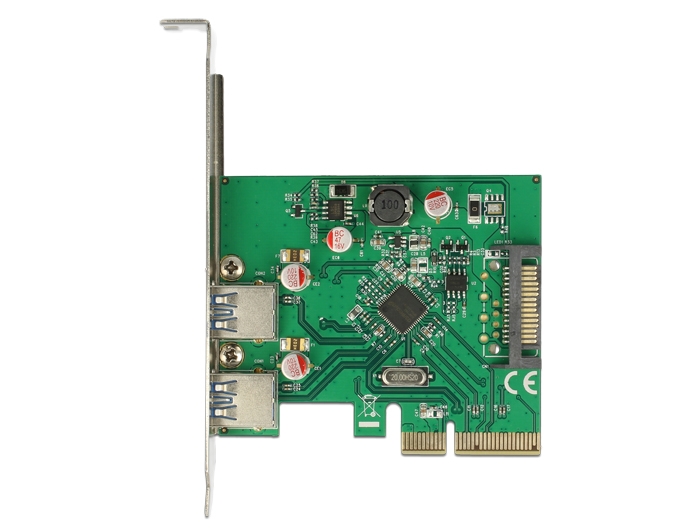

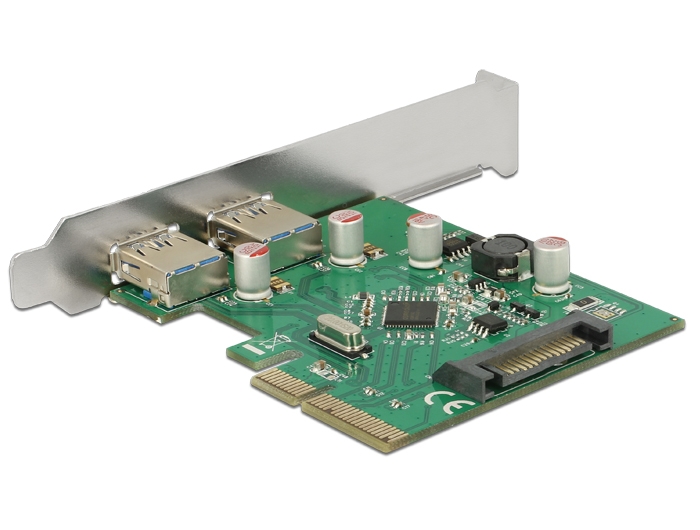

Delock PCI Express x4 Card > 2 x external USB 3.1 Gen 2 Type-A female

Kods 89554

Condition: Jauns

Vairāk informācijas

This PCI Express card by Delock expands the PC by two external USB 3.1 ports. Different USB Type-A devices, such as docking stations, card readers, external housings etc., can be connected to the card.

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Specification:
• Connector:
external:
    2 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) Type-A female
internal:
    1 x SATA 15 pin power connector
    1 x PCI Express x4, V2.0
• Chipset: Asmedia ASM1142
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port: max. 4.5 watt (5 V / 900 mA)
• Supports eXtensible Host Controller Interface (xHCI) specifications 1.1
• Supports UASP

Package content:
• PCI Express card SuperSpeed USB 10 Gbps

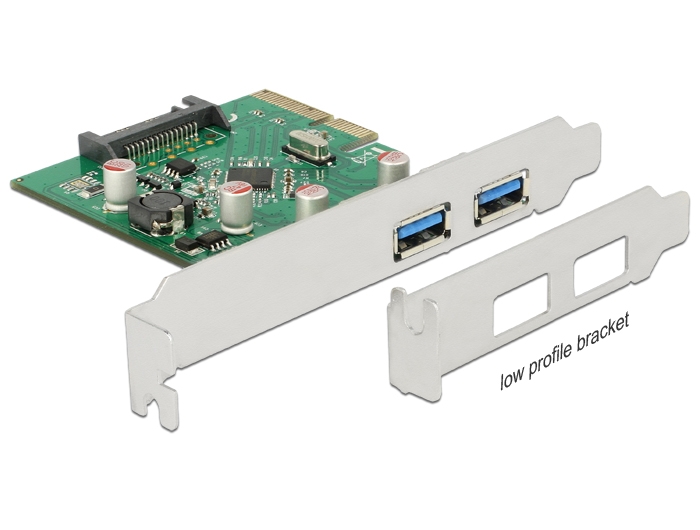

• Low profile bracket
• Driver CD
• User manual
