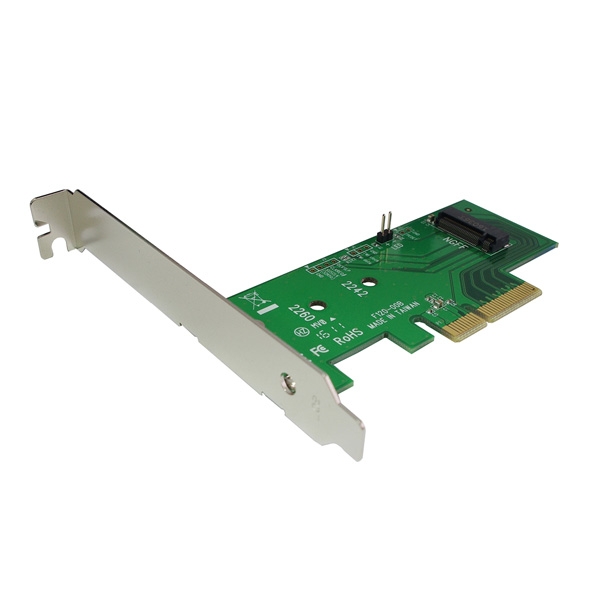

ROLINE PCIe 3.0 x4 Host Adapter for M.2 NGFF PCIe SSD

Kods 15.06.2192

Condition: Jauns

Vairāk informācijas

• Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot
• PCI Express 3.0 x4 Lane Host adapter
• Supports PCIe Gen3 and PCIe Gen2 M.2 NGFF 80mm, 60mm, 42mm SSD
• M.2 NGFF type 2280-D5-M connector on board
• Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 SSD
• Supports PCIe 3.0 ,PCIe 2.0 and PCIe 1.0 motherboard
• Supports dual-sided SSD module 1.5mm component height on the top and bottom side
• Compliant with PCI Express 3.0
• Pin header on board for drive LED connection
• Low Profile PCIe Form Factor
• Regular size PCIe bracket on board and Low Profile bracket included
• Transparent to the operating system and no driver required
• Operating systems: Windows 10 / 8.1 /Server 2012 R2
• M.2 PCIe SSD power from motherboard PCIe bus slot 3.3V

Manufacturer	ROLINE
Manufacturer Item No.	15.06.2192
Product group	I/O Card
Product type	PCI Express Adapter
Scope of delivery	Adapter, manual
Interface	1x M.2 NGFF (D5 M)
Installation Guide/Manual	Jā
