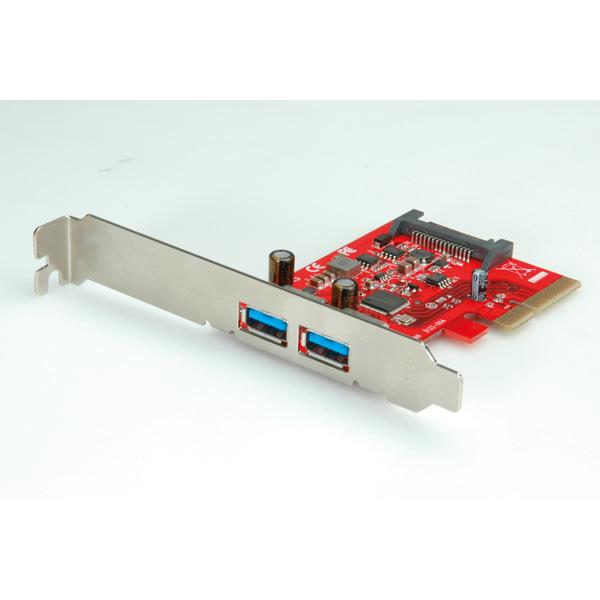

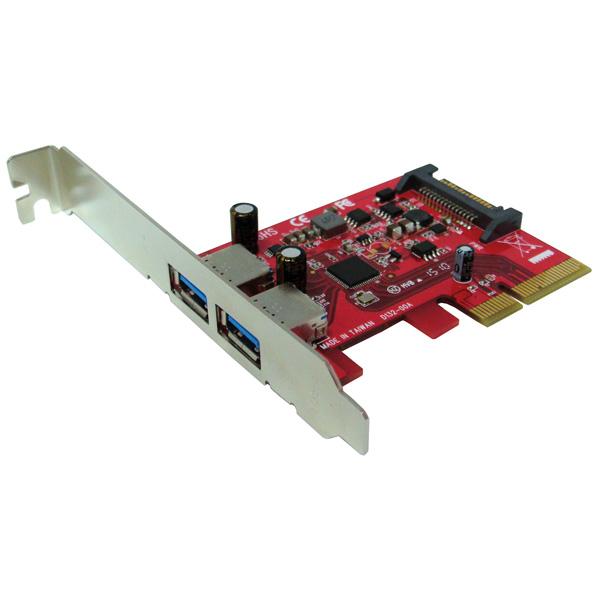

ROLINE PCI-Express x4 Adapter, 2x Ports Type A USB3.1

Kods 15.06.2144

Condition: Jauns

Expand your PC with two SuperSpeed+ USB 3.1 ports.

Expand your PC with two SuperSpeed+ USB 3.1 ports.

USB3.1 PCIe x4 Lane Host Adapter
USB 3.1 offers Super Speed+ data transfer rates of up to 10 Gbit/s
Connectors: 2x USB 3.1 Type A downstream connectors on board
Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
Compliant with USB Attached SCSI Protocol Specification 1.0
Compliant with PCI Express Specification 3.0
Supports 5V3A USB bus power each USB 3.1 Type C port
Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard
Support USB3.1, USB3.0, USB2.0 and USB1.1 devices
Low Profile PCIe Form Factor
Low profile PCI form factor (additional low profile PCI bracket included)
Built-in 15-pin SATA power connector for the power supply of the USB ports
Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance
Supports Windows 8.1/ 8 / 7 / Vista / 2012 / 2008 / 2003, Mac OS X platform
Contents: Adapter, low profile bracket, driver CD, manual

BUS system	PCI Express
Connection ports	2x USB 3.1 Type C, external
Content of delivery	Adapter, low profile bracket, driver CD, manual
Conveyance good	No
Data transfer rate	10 Gbit/s
Installation Guide/Manual	Yes
Interface	USB 3.1
Manufacturer	ROLINE
Manufacturer Item No.	15.06.2144
Mounting height	Full profile
Operating System	Windows 8.1/ 8 / 7 / Vista / 2012 / 2008 / 2003, Mac OS X
Product group	I/O Card
Product type	PCI-Express Adapter
USB 3.0 Interface	Yes
