Delock PCI Raid Controller 1x eSATA, 1x SATA, 1x IDE

Kods 70156

Condition: Jauns

Description The Delock Controller card has to be plugged internal to the PCI slot. You can connect hard disks, CD-ROM drives or other devices to the controller card. Due to the Raid function you can connect multiple hard disks logically and raise the data security, the speed or capacity. Specification • 1x external eSATA I specification • 1x internal SATA I specification • 1x interna...

More details

Vairāk informācijas

Description

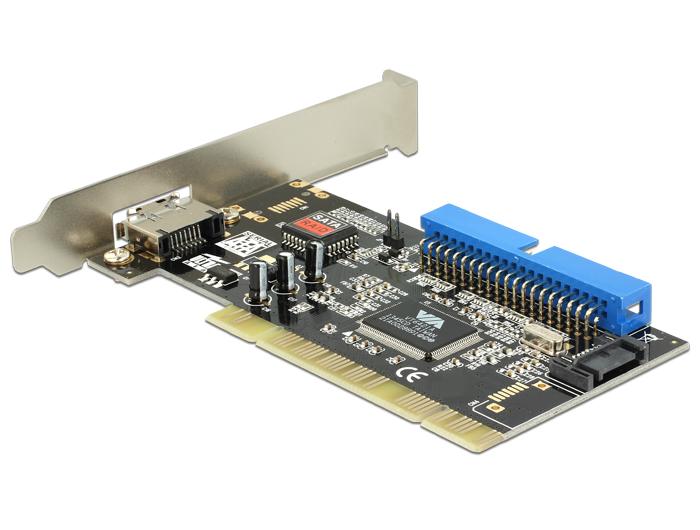

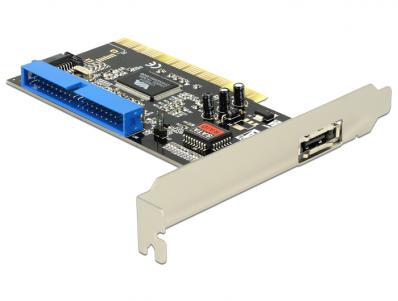

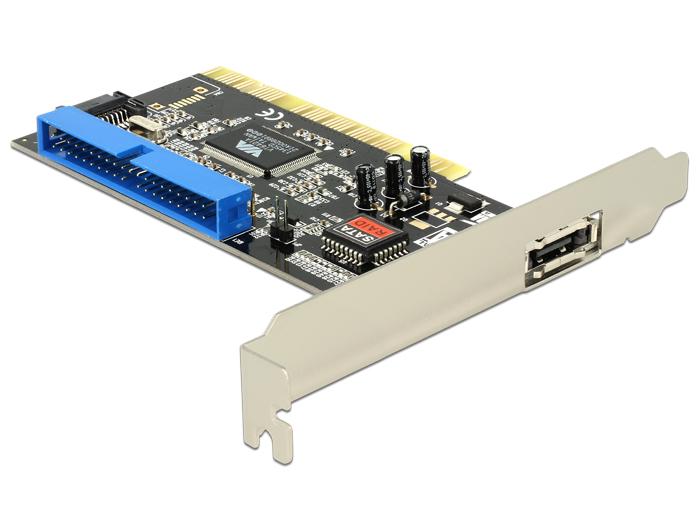

The Delock Controller card has to be plugged internal to the PCI slot. You can connect hard disks, CD-ROM drives or other devices to the controller card. Due to the Raid function you can connect multiple hard disks logically and raise the data security, the speed or capacity.

Specification
• 1x external eSATA I specification
• 1x internal SATA I specification
• 1x internal PATA IDE specification
• Data transfer rate: Â Â
Â Â Â Â Â Â Â Â Â Â Â eSATA / SATA up to 1.5 GB/s
Â Â Â Â Â Â Â Â Â Â Â PATA up to 133 Mbps

• 32-Bit PCI standard 2.2

• Supports up to 2 HDDs on the IDE controller

• Supports hard disks more than 137 GB

• Raid 0, 1, 0+1, JBOD

System requirements
•Â Windows 2000/XP/Server-2003/Vista, LinuxÂ - Kernel 2.6

• PC with one free PCI Slot

Package content
• Controller card
• Driver CD
• User manual

Package
• Blister
